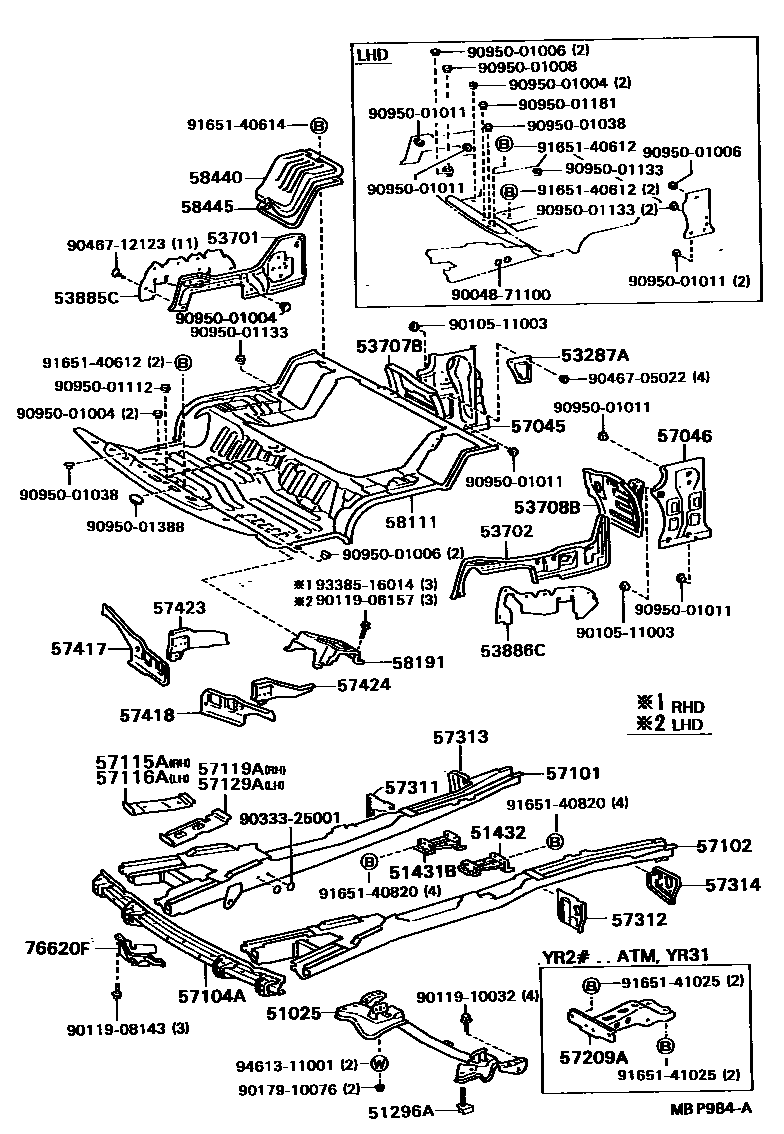

Toyota MODEL-F — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51296ABOLT, ENGINE FRONT SUPPORT MEMBER
RH
LH
51431BBRACKET, ENGINE REAR MOUNTING
51432BRACKET, ENGINE REAR MOUNTING, LH
53287ACOVER, COOLER PIPE HOLE
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707BAPRON SUB-ASSY, FENDER SIDE, RH
53708BAPRON SUB-ASSY, FENDER SIDE, LH
53885CSEAL, FENDER APRON MUDGUARD, RH
53886CSEAL, FENDER APRON MUDGUARD, LH
57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH
57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
W(CAPTAIN SEAT)
57102MEMBER SUB-ASSY, FRONT SIDE, LH
W(CAPTAIN SEAT)
57104AMEMBER SUB-ASSY, FRONT CROSS
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57119APLATE, FRONT SIDE MEMBER, FRONT RH
57129APLATE, FRONT SIDE MEMBER, FRONT LH
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
57313OUTRIGGER, NO.2 RH
57314OUTRIGGER, NO.2 LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
58111PAN, FRONT FLOOR
58191FOOTREST, FRONT FLOOR
58440COVER ASSY, BATTERY SERVICE HOLE
58445PACKING, BATTERY SERVICE HOLE COVER
76620FPROTECTOR ASSY, STEERING MAIN SHAFT, LH
9004871100
main90048-71100
9010511003
main90105-11003
9011906157
main90119-06157
9011908143
main90119-08143
9011910032
main90119-10032
9017910076
main90179-10076
9033325001
main90333-25001
9046705022
main90467-05022
9046712123
main90467-12123
9095001004
main90950-01004
9095001006
main90950-01006
9095001008
main90950-01008
9095001011
main90950-01011
9095001038
main90950-01038
9095001112
main90950-01112
9095001133
main90950-01133
9095001181
main90950-01181
9095001388
main90950-01388
9165140612
main91651-40612
9165140614
main91651-40614
9165140820
main91651-40820
9165141025
main91651-41025
9338516014
main93385-16014
9461311001
main94613-11001
58 parts on this diagram · 3 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota MODEL-F
This section contains 116 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota MODEL-F. Key components include: MEMBER SUB-ASSY, ENGINE FRONT MOUNTING, BOLT, ENGINE FRONT SUPPORT MEMBER, BRACKET, ENGINE REAR MOUNTING, BRACKET, ENGINE REAR MOUNTING, LH, TRIM, ENGINE COVER, NO.2.
