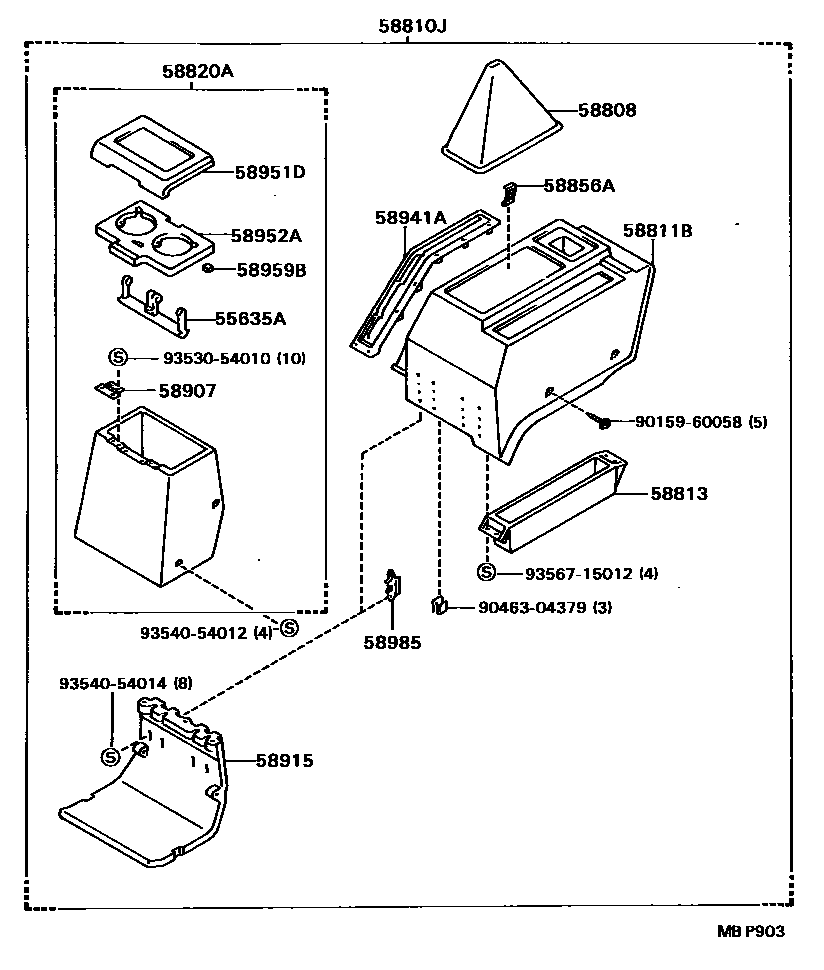

Toyota MODEL-F — CONSOLE BOX & BRACKET

55635ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2

main55635-28010i198808-199001

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-87002-03i198808-199001

SHADOW GRAY,TRIM1#

main58808-87002-16i198808-199001

BROWN,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-28051-03i198808-198811

SHADOW GRAY,TRIM1#

main58810-28052-03i198811-199001

SHADOW GRAY,TRIM1#

main58810-28071-03i198808-198811

SHADOW GRAY,TRIM1#

main58810-28071-16i198808-198811

SABLE,TRIM4#

main58810-28072-03i198811-199001

SHADOW GRAY,TRIM1#

main58810-28072-06i198811-199001

SABLE,TRIM4#

main58810-28081-03i198808-198811

SHADOW GRAY,TRIM1#

main58810-28081-16i198808-198811

SABLE,TRIM4#

main58810-28082-03i198811-199001

SHADOW GRAY,TRIM1#

main58810-28082-06i198811-199001

SABLE,TRIM4#

main58810-28110-03i198808-198811

GRAY,TRIM1#

main58810-28111-03i198811-199001

SHADOW GRAY,TRIM1#

main58810-28120-03i198808-198811

GRAY,TRIM1#

main58810-28120-16i198808-198811

NORWAY N1 CATEGORY OR NORWAY M1 CATEGORY OR DENMARK N1 CATEGORY,SABLE,TRIM4#; SWEDEN SPEC,SABLE,TRIM4#

main58810-28121-03i198906-199001

NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,SHADOW GRAY,TRIM1#

main58810-28121-06i198906-199001

NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,SABLE,TRIM4#

main58810-87021-03i198808-198811

SHADOW GRAY,TRIM1#

main58810-87021-16i198808-198811

BROWN,TRIM4#

main58810-87028-03i198808-198811

SHADOW GRAY,TRIM1#

main58810-87028-16i198808-198811

BROWN,TRIM4#

main58810-87044-03i198811-199001

GRAY,TRIM1#

main58810-87044-06i198811-199001

SABLE,TRIM4#

main58810-87045-03i198811-199001

GRAY,TRIM1#

main58810-87045-06i198811-199001

SABLE,TRIM4#

main58810-95D10-16i198808-198810

SABLE,TRIM4#

main58810-95D26-03i198810-199001

SHADOW GRAY,TRIM1#

main58810-95D26-06i198810-199001

SABLE,TRIM4#

main58810-95D29-03i198810-199001

SHADOW GRAY,TRIM1#

58811BBOX, CONSOLE

main58811-28031-03i198810-198811

SHADOW GRAY,TRIM1#

main58811-28032-03i198811-199001

SHADOW GRAY,TRIM1#

main58811-28041-03i198810-198811

SHADOW GRAY,TRIM1#

main58811-28041-16i198808-198810

SABLE,TRIM4#

main58811-28042-03i198811-199001

SHADOW GRAY,TRIM1#

main58811-28042-06i198811-199001

SABLE,TRIM4#

main58811-28050-03i198808-198811

SHADOW GRAY,TRIM1#

main58811-28051-03i198811-199001

SHADOW GRAY,TRIM1#

main58811-28060-03i198808-198811

NORWAY N1 CATEGORY OR NORWAY M1 CATEGORY OR DENMARK N1 CATEGORY,SHADOW GRAY,TRIM1#; SWEDEN SPEC,SHADOW GRAY,TRIM1#

main58811-28060-16i198808-198811

NORWAY N1 CATEGORY OR NORWAY M1 CATEGORY OR DENMARK N1 CATEGORY,SABLE,TRIM4#; SWEDEN SPEC,SABLE,TRIM4#

main58811-28061-03i198811-198906

NORWAY N1 CATEGORY OR NORWAY M1 CATEGORY OR DENMARK N1 CATEGORY,SHADOW GRAY,TRIM1#

main58811-28061-06i198811-198906

NORWAY N1 CATEGORY OR NORWAY M1 CATEGORY OR DENMARK N1 CATEGORY,SABLE,TRIM4#

main58811-87012-03i198808-199001

SHADOW GRAY,TRIM1#

main58811-87012-16i198808-199001

SABLE,TRIM4#

58813BOX, CONSOLE, UPPER

main58813-87001-03i198808-199001

SHADOW GRAY,TRIM1#

main58813-87001-16i198808-199001

SABLE,TRIM4#

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-28010-03i198808-199001

SHADOW GRAY,TRIM1#

main58820-28010-16i198808-199001

SABLE,TRIM4#

58856AHOLDER, CONSOLE BOX

main58856-28010i198810-199001

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-28010i198808-199001

58915PANEL, BOX BOTTOM

main58915-87001-13i198808-199001

SHADOW GRAY,TRIM1#

main58915-87001-16i198808-199001

SABLE,TRIM4#

58941ACOVER, PARKING BRAKE HOLE

main58941-28020i198808-199001

main58941-87010-01i198808-199001

BLACK,TRIM1#,4#

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-28010-03i198808-199001

SHADOW GRAY,TRIM1#

main58951-28010-16i198808-199001

SABLE,TRIM4#

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-28010-03i198808-199001

SHADOW GRAY,TRIM1#

main58952-28010-16i198808-199001

SABLE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-28010×2i198808-199001

58985RETAINER, CONSOLE BOX

main58985-87001×4i198808-199001

9015960058

main90159-60058

9046304379

main90463-04379

9353054010

main93530-54010

9354054012

main93540-54012

9354054014

main93540-54014

9356715012

main93567-15012

20 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota MODEL-F

This section contains 24 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota MODEL-F. Key components include: SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2, COVER SUB-ASSY, SHIFTING HOLE, BOX ASSY, CONSOLE, BOX, CONSOLE, BOX, CONSOLE, UPPER.
