Toyota MIRAI — WINDSHIELD WASHER

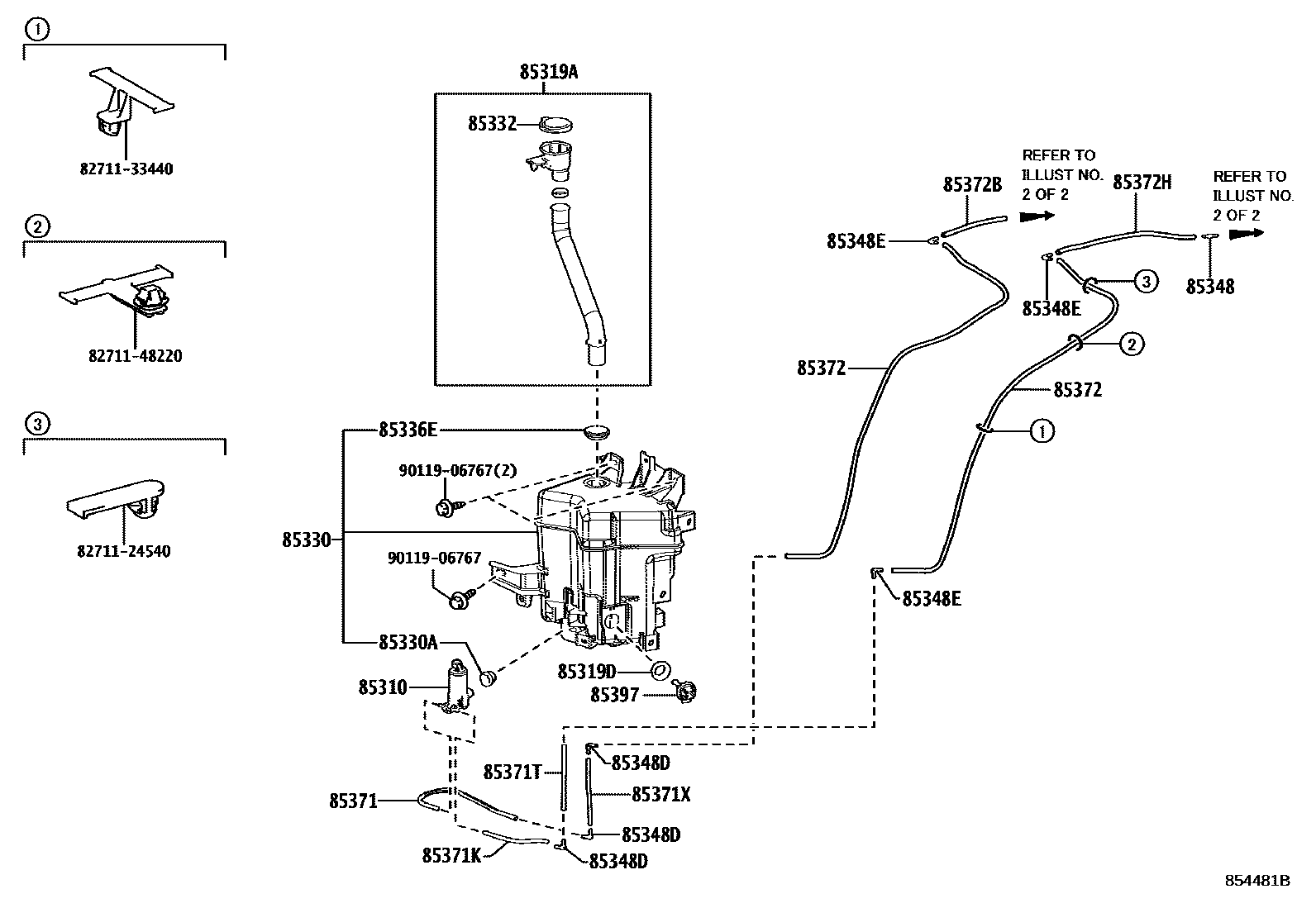

Parts diagram
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-11040i202312-202411
85319AHOSE, INLET
main85301-62010i202312-202411
85319DPACKING, FRONT WASHER
main85319-33230i202312-202411
85330JAR ASSY, WINDSHIELD WASHER
main85315-62030i202411
main85315-62050supersedes 85315-62070i202312-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i202312-202411
85332CAP, WINDSHIELD WASHER JAR
main85316-62010i202312-202411
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main85336-30160i202312-202411
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-10260i202312-202411
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-20200×3i202312-202411
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-20200×3i202411
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080i202312-202411
L=1450(*H,L=360); L=1450(*H,L=360),ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
85371KHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080i202312-202411
L=1450(*H,L=125); L=1450(*H,L=125),ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
main90099-33080i202312-202411
L=1450(*H,L=125); L=1450(*H,L=125),ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
85371XHOSE, WINDSHIELD WASHER(FROM JOINT TO TOINT)
main90099-33080i202312-202411
L=1450(*H,L=120); L=1450(*H,L=120),ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080×2i202312-202411
L=1450(*H,L=990)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i202312-202411
L=1450(*H,L=130)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080i202312-202411
L=1450(*H,L=270)
85397SWITCH ASSY,LEVEL WARNING
main85397-52100i202312-202411
8271124540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24540
8271133440WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33440
8271148220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48220
9011906767
main90119-06767

22 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota MIRAI

This section contains 64 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota MIRAI. Key components include: WINDSHIELD WIPER, REAR WASHER, GROMMET SUB-ASSY, WASHER, NO.1, GROMMET SUB-ASSY, WASHER, NO.2, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
