Toyota MIRAI — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-62100i202011-202312

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-62030i202011-202212

86150CSPEAKER ASSY, W/BOX, NO.3

main86150-62020i202011-202212

86160SPEAKER ASSY, FRONT NO.1

main86160-33A10×2i202411

main86160-33A20×2i202011-202312

86160BSPEAKER ASSY, REAR

main86160-30E00×2i202011-202312

main86160-62020×2i202312-202411

86160JSPEAKER ASSY, FRONT NO.3

main86150-33060×2i202011-202312

86160PSPEAKER ASSY, FRONT NO.2

main86160-33A30×3i202312-202411

main86160-47140×2i202011-202312

86160YSPEAKER ASSY, REAR NO.2

main86150-33060×2i202312-202411

86160ZSPEAKER ASSY, REAR NO.3

main86150-62060×2i202312-202411

86168COVER, SPEAKER MOUNTING

main86168-62010i202011-202312

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-62010i202011-202212

main86240-62050supersedes 86240-62060i202212-202312

9011906A06

main90119-06A06

9015950311

main90159-50311

9015950327

main90159-50327

9015960303

main90159-60303

9017906274

main90179-06274

9018906227

main90189-06227

9167380616

main91673-80616

9356855014

main93568-55014

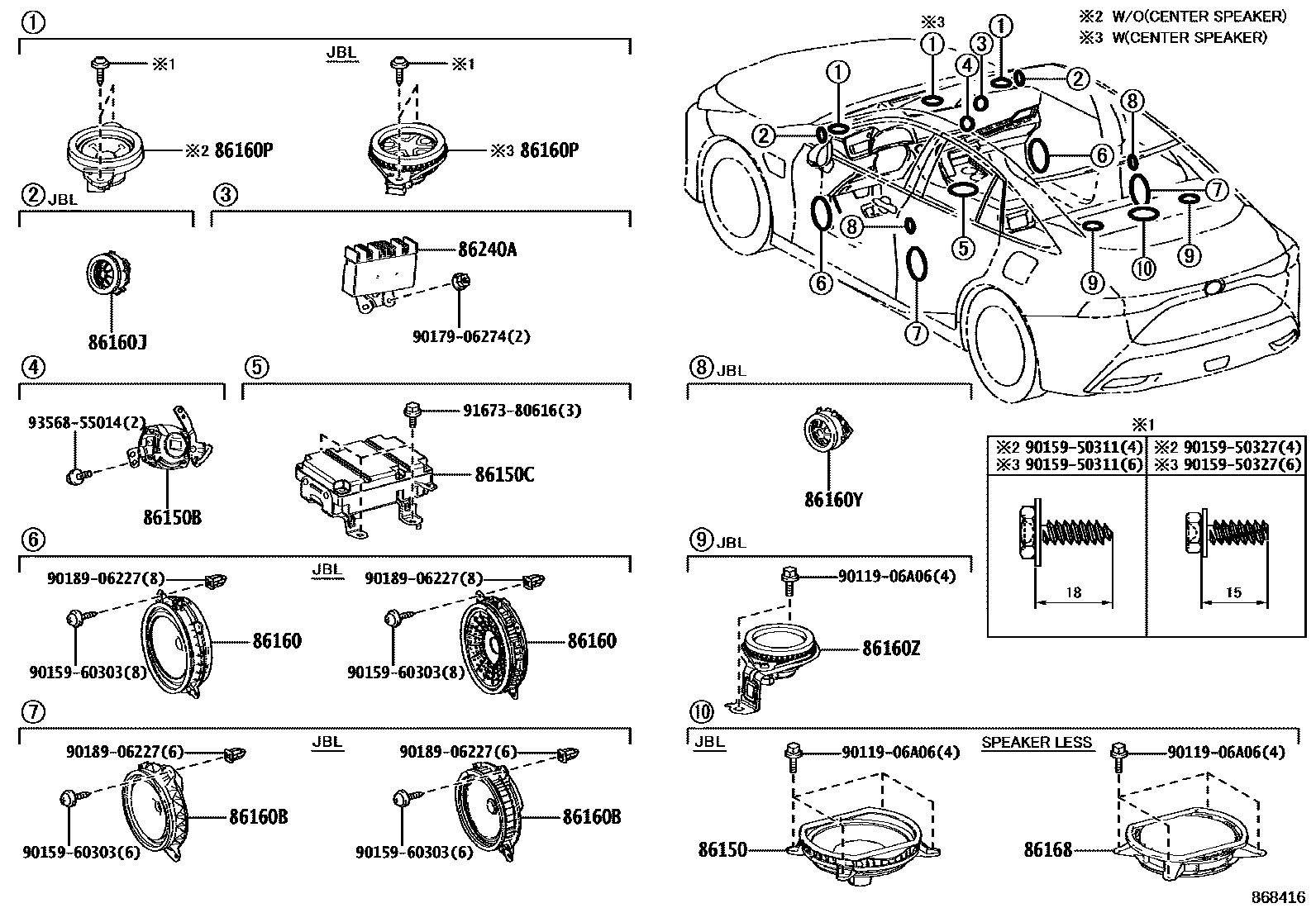

19 parts on this diagram · 1 diagram in section

SPEAKER for Toyota MIRAI

This section contains 19 genuine Toyota parts for the SPEAKER system of the Toyota MIRAI. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, W/BOX, NO.2, SPEAKER ASSY, W/BOX, NO.3, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR.
