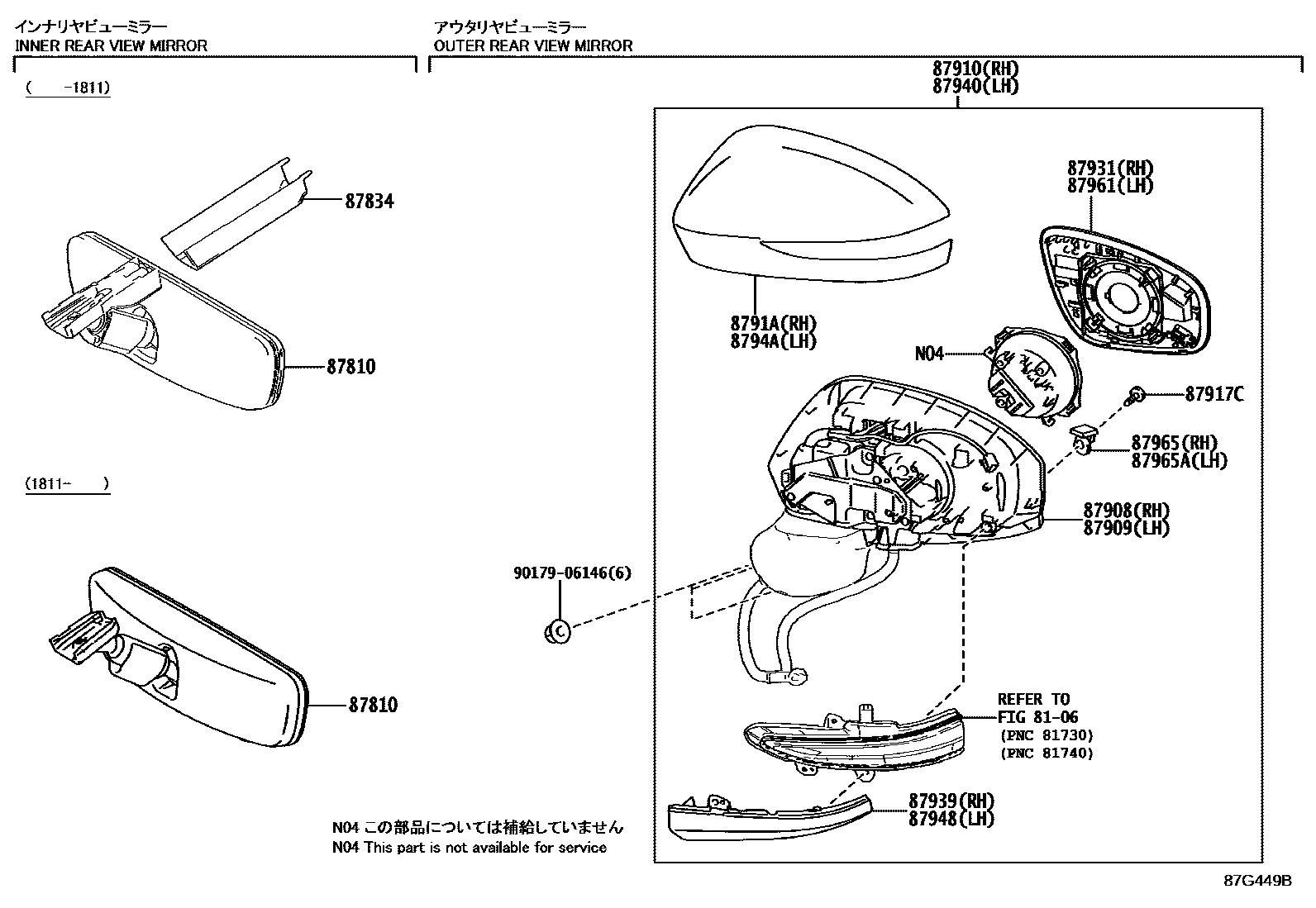

Toyota MIRAI — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WM10i201506-201811

main87810-0WY20i201811-202005

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-0W050i201506-201811

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-62050-A0i201506-201801

SUPER WHITE 2,2MQ

main87908-62050-A1i201506-202005

WHITE PEARL CS.,2NL

main87908-62050-B0i201506-202005

PRECIOUS SILVER,2MR

main87908-62050-C0i201506-202005

PRECIOUS BLACK,2MS

main87908-62050-D0i201506-202005

DK. RED M.M.,2NM

main87908-62050-J0i201506-202005

DK.BLUE MC.,2MT

main87908-62050-J2i201506-202005

PURE BLUE ME.,2NV

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-62060-A0i201506-201801

SUPER WHITE 2,2MQ

main87909-62060-A1i201506-202005

WHITE PEARL CS.,2NL

main87909-62060-B0i201506-202005

PRECIOUS SILVER,2MR

main87909-62060-C0i201506-202005

PRECIOUS BLACK,2MS

main87909-62060-D0i201506-202005

DK. RED M.M.,2NM

main87909-62060-J0i201506-202005

DK.BLUE MC.,2MT

main87909-62060-J2i201506-202005

PURE BLUE ME.,2NV

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-62051-A0i201506-201801

SUPER WHITE 2,2MQ

main87910-62051-A1i201506-202005

WHITE PEARL CS.,2NL

main87910-62051-B0i201506-202005

PRECIOUS SILVER,2MR

main87910-62051-C1i201506-202005

PRECIOUS BLACK,2MS

main87910-62051-D0i201506-202005

DK. RED M.M.,2NM

main87910-62051-J1i201506-202005

DK.BLUE MC.,2MT

main87910-62051-J3i201506-202005

PURE BLUE ME.,2NV

87917CSCREW, OUTER MIRROR

main87917-77010×2i201506-202005

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-62020-A0i201506-202005

WHITE PEARL CS.,2NL

main8791A-62020-A1i201506-201801

SUPER WHITE 2,2MQ

main8791A-62020-B0i201506-202005

PRECIOUS SILVER,2MR

main8791A-62020-C0i201506-202005

PRECIOUS BLACK,2MS

main8791A-62020-D0i201506-202005

DK. RED M.M.,2NM

main8791A-62020-J0i201506-202005

DK.BLUE MC.,2MT

main8791A-62020-J2i201506-202005

PURE BLUE ME.,2NV

87931OUTER MIRROR, RH

main87931-62050i201506-202005

87939COVER, OUTER MIRROR HOLE, RH

main87939-62020-A0i201506-202005

WHITE PEARL CS.,2NL

main87939-62020-A1i201506-201801

SUPER WHITE 2,2MQ

main87939-62020-B0i201506-202005

PRECIOUS SILVER,2MR

main87939-62020-C0i201506-202005

PRECIOUS BLACK,2MS

main87939-62020-D0i201506-202005

DK. RED M.M.,2NM

main87939-62020-J0i201506-202005

DK.BLUE MC.,2MT

main87939-62020-J2i201506-202005

PURE BLUE ME.,2NV

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-62061-A0i201506-201801

SUPER WHITE 2,2MQ

main87940-62061-A1i201506-202005

WHITE PEARL CS.,2NL

main87940-62061-B0i201506-202005

PRECIOUS SILVER,2MR

main87940-62061-C1i201506-202005

PRECIOUS BLACK,2MS

main87940-62061-D0i201506-202005

DK. RED M.M.,2NM

main87940-62061-J1i201506-202005

DK.BLUE MC.,2MT

main87940-62061-J3i201506-202005

PURE BLUE ME.,2NV

87948COVER, OUTER MIRROR HOLE, LH

main87948-62030-A0i201506-202005

WHITE PEARL CS.,2NL

main87948-62030-A1i201506-201801

SUPER WHITE 2,2MQ

main87948-62030-B0i201506-202005

PRECIOUS SILVER,2MR

main87948-62030-C0i201506-202005

PRECIOUS BLACK,2MS

main87948-62030-D0i201506-202005

DK. RED M.M.,2NM

main87948-62030-J0i201506-202005

DK.BLUE MC.,2MT

main87948-62030-J2i201506-202005

PURE BLUE ME.,2NV

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-62030-A0i201506-202005

WHITE PEARL CS.,2NL

main8794A-62030-A1i201506-201801

SUPER WHITE 2,2MQ

main8794A-62030-B0i201506-202005

PRECIOUS SILVER,2MR

main8794A-62030-C0i201506-202005

PRECIOUS BLACK,2MS

main8794A-62030-D0i201506-202005

DK. RED M.M.,2NM

main8794A-62030-J0i201506-202005

DK.BLUE MC.,2MT

main8794A-62030-J2i201506-202005

PURE BLUE ME.,2NV

87961MIRROR OUTER, LH

main87961-62060i201506-202005

87965GROMMET, OUTER MIRROR

main90069-55036i201506-202005

87965AGROMMET, OUTER MIRROR

main90069-55037i201506-202005

9017906146

main90179-06146

17 parts on this diagram · 1 diagram in section

MIRROR for Toyota MIRAI

This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota MIRAI. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
