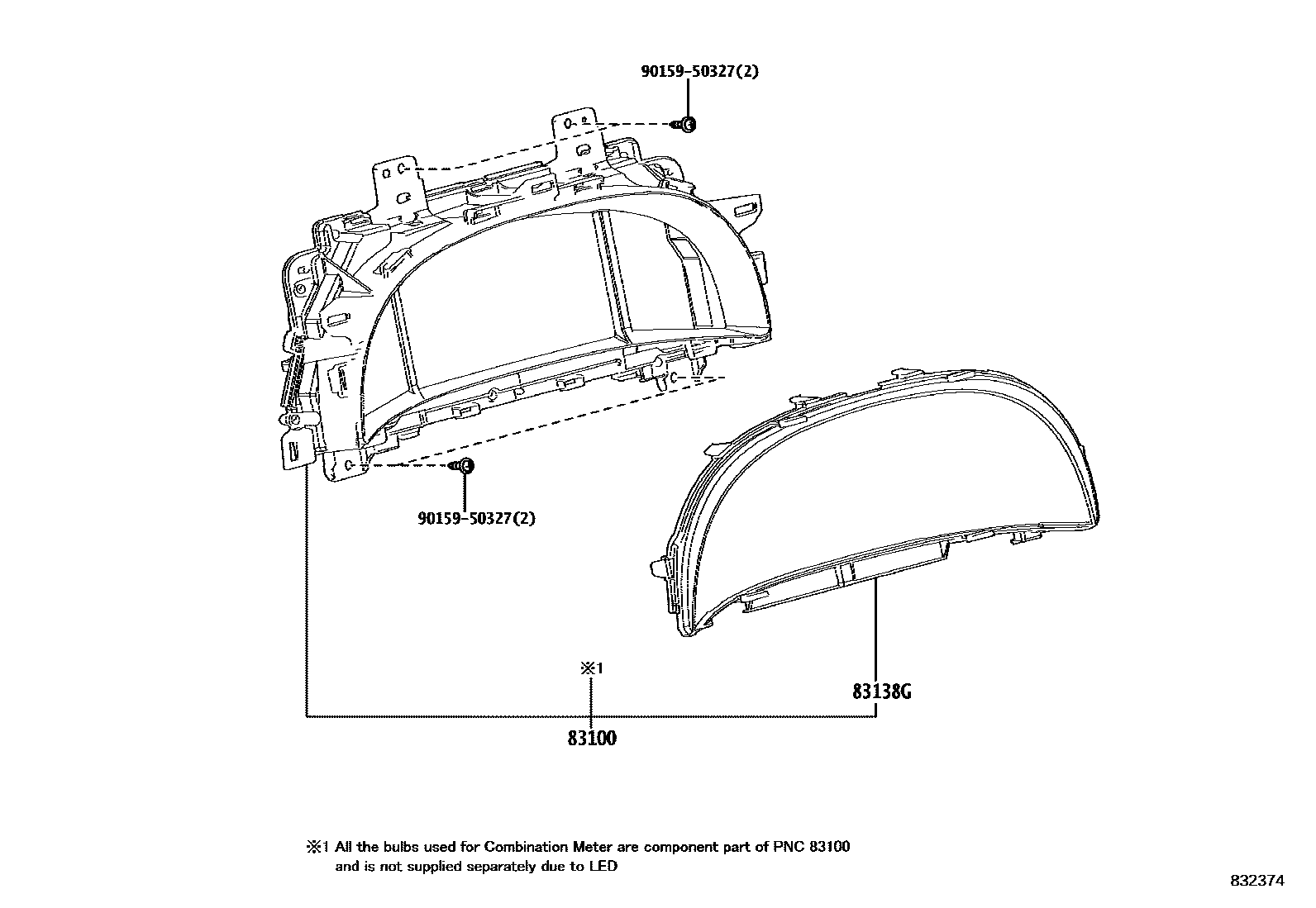

Toyota MIRAI — METER

83100METER ASSY, COMBINATION

main83800-62380i202312-202402

YAZAKI,*614

main83800-62381i202402-202411

YAZAKI,*614

main83800-62420i202411

YAZAKI,*614

main83800-62140supersedes 83800-62130i202011-202108

YAZAKI,CANADA SPEC

main83800-62141supersedes 83800-62131i202108-202212

YAZAKI,CANADA SPEC

main83800-62280i202111-202212

DENSO,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,TYPE A,REFER R/M

main83800-62281i202111-202212

DENSO,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,TYPE B,REFER R/M

main83800-62282i202111-202212

DENSO,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,TYPE D,REFER R/M

main83800-62283i202111-202212

DENSO,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,TYPE C,REFER R/M

main83800-62310i202212-202312

DENSO,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,TYPE E,REFER R/M

main83800-62311i202212-202312

DENSO,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,TYPE F,REFER R/M

main83800-62350supersedes 83800-62340i202212-202312

YAZAKI,CANADA SPEC

main83800-62410i202406-202411

DENSO,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,*614,TYPE G,*RRM

83138GGLASS, COMBINATION METER

main83852-62120i202011-202312

main83852-62380i202312-202411

main83852-62270i202111-202212

ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE

9015950327

main90159-50327

3 parts on this diagram · 3 diagrams in section

METER for Toyota MIRAI

This section contains 7 genuine Toyota parts for the METER system of the Toyota MIRAI. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1, SCREW (FOR COMBINATION METER).
