Toyota MIRAI — ARMREST & VISOR

74310VISOR ASSY, RH

main74310-62010-A0i201506-201803

WARM WHITE,TRIM0#,8#

main74310-62011-A0i201804-202005

WARM WHITE,TRIM0#,8#

74317COVER, VISOR BRACKET, RH

main74317-60020-A8i201506-202005

WARM WHITE,TRIM0#,8#

74318COVER, VISOR BRACKET, LH

main74317-60020-A8i201506-202005

WARM WHITE,TRIM0#,8#

74320VISOR ASSY, LH

main74320-62010-A0i201506-201803

WARM WHITE,TRIM0#,8#

main74320-62011-A0i201804-202005

WARM WHITE,TRIM0#,8#

74348BHOLDER, VISOR, RH

main74348-33040-A9i201506-202005

WARM WHITE,TRIM0#,8#

74348CHOLDER, VISOR, LH

main74348-33040-A9i201506-202005

WARM WHITE,TRIM0#,8#

74610AGRIP SUB-ASSY, ASSIST

main74610-12130-A1×2i201506-202005

WARM WHITE,TRIM0#,8#

74612COVER, ASSIST GRIP

main74611-12040-A1×4i201506-202005

WARM WHITE,TRIM0#,8#

74612DCOVER, ASSIST GRIP

main74612-12040-A1×4i201506-202005

WARM WHITE,TRIM0#,8#

74614CPLATE, ASSIST GRIP LOCK

main74614-12010×8i201506-202005

74620BGRIP ASSY, ASSIST, REAR

main74610-42060-A1×2i201506-202005

WARM WHITE,TRIM0#,8#

9322915020

main93229-15020

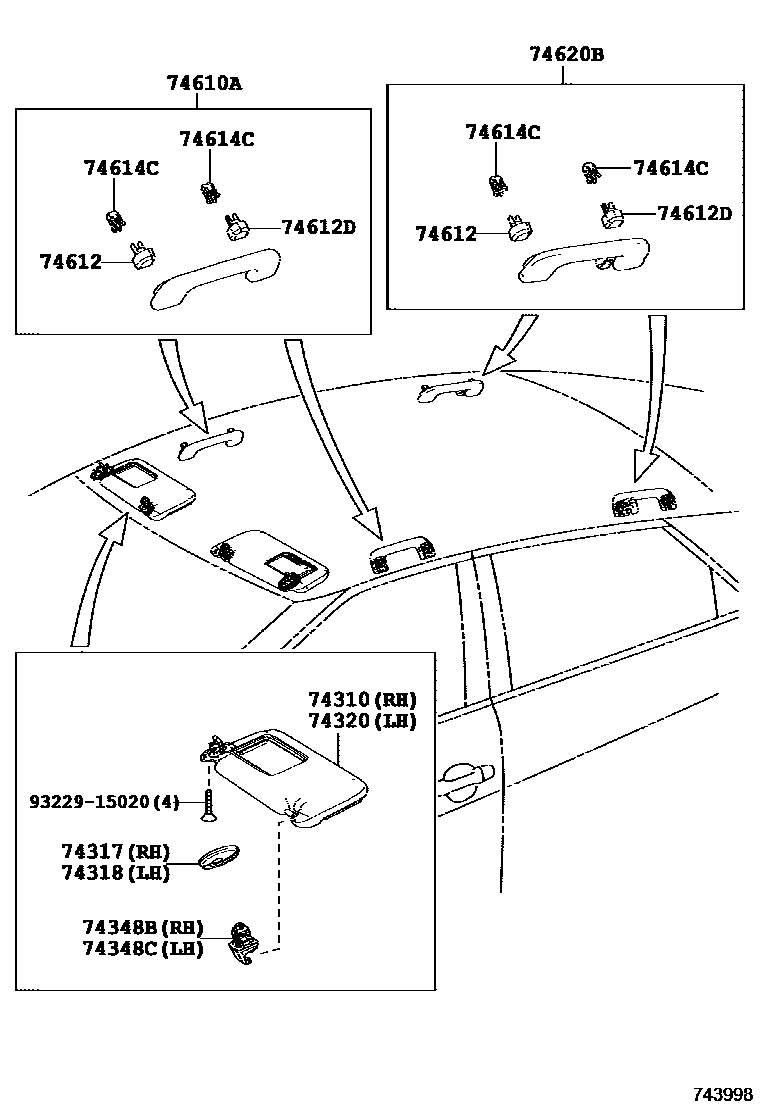

12 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota MIRAI

This section contains 12 genuine Toyota parts for the ARMREST & VISOR system of the Toyota MIRAI. Key components include: VISOR ASSY, RH, COVER, VISOR BRACKET, RH, COVER, VISOR BRACKET, LH, VISOR ASSY, LH, HOLDER, VISOR, RH.
