Toyota MIRAI — MIRROR

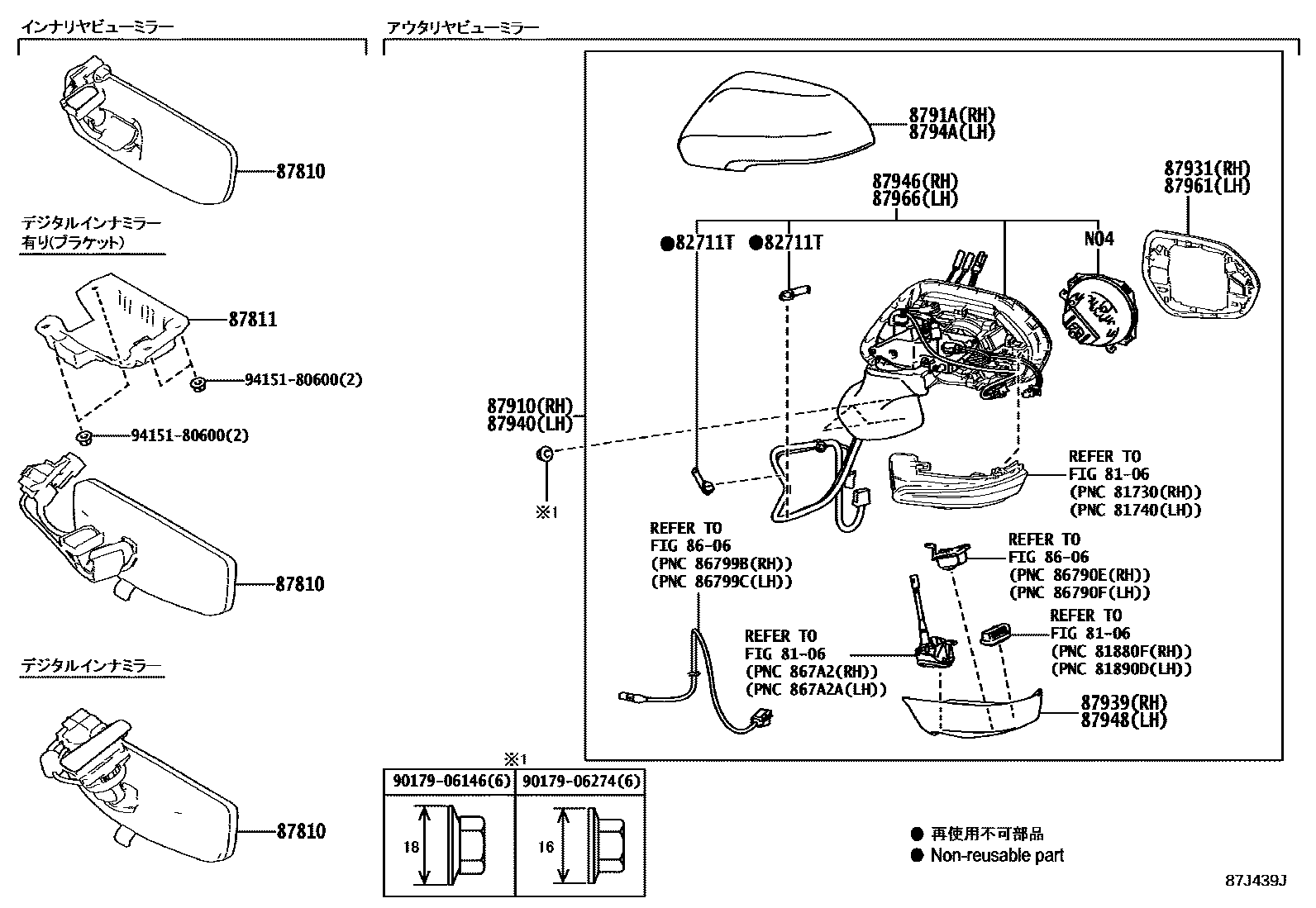

Parts diagram

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

82711TCLAMP, WIRING HARNESS

main82711-2C280×4i202312-202411

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WS30i202011-202212

main87810-VW010i202412

main87840-0W460i202212-202312

main87810-0WX70supersedes 87810-62030i202104-202307

main87810-0WX71supersedes 87810-62030i202312-202411

main87810-62020supersedes 87840-0W460i202011-202110

main87810-62021supersedes 87840-0W460i202111-202312

main87840-0W190supersedes 87810-62030i202011-202312

main87840-0W700supersedes 87810-62030i202312-202411

87811BRACKET, INNER RR VIEW MIRROR

main87811-50020i202312-202411

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-62110-A2i202011-202212

main87910-62110-B0i202011-202212

main87910-62110-B2i202011-202212

main87910-62110-C0i202011-202212

main87910-62110-C1i202011-202212

main87910-62110-D0i202011-202212

main87910-62110-J0i202011-202212

main87910-62110-J1i202011-202212

main87910-62240-A0supersedes 87910-62080-A2i202312-202411

main87910-62240-B0supersedes 87910-62080-B0i202412

PRECIOUS SILVER,1J6

main87910-62240-B1supersedes 87910-62080-B2i202312-202411

main87910-62240-C0supersedes 87910-62080-C0i202312-202411

main87910-62240-C1supersedes 87910-62080-C1i202212-202312

main87910-62240-D0supersedes 87910-62080-D0i202312-202411

main87910-62240-J0supersedes 87910-62080-J0i202312-202411

main87910-62240-J1supersedes 87910-62080-J1i202312-202411

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-30F70-A1i202312-202411

main8791A-30F70-B1i202312-202411

main8791A-30F70-B3i202312-202411

main8791A-30F70-C0i202312-202411

main8791A-30F70-C1i202412

PRECIOUS BLACK,090 ,1J6 ,1L5 ,219 ,3U5 ,8Y7; PRECIOUS BLACK,219

main8791A-30F70-D3i202312-202411

main8791A-30F70-J0i202312-202411

main8791A-30F70-J3i202312-202411

87931OUTER MIRROR, RH

main87931-10860i202312-202411

87939COVER, OUTER MIRROR HOLE, RH

main87939-30F80-A1i202011-202312

PRECIOUS WHITE PEARL,090

main87939-30F80-B1i202011-202312

PRECIOUS SILVER,1J6

main87939-30F80-B3i202011-202312

PRECIOUS METAL,1L5

main87939-30F80-C0i202011-202312

BLACK,202

main87939-30F80-C1i202011-202312

PRECIOUS BLACK,219

main87939-30F80-D3i202011-202312

EMOTIONAL RED 2,3U5

main87939-30F80-J0i202011-202312

DK.BLUE MC.,8S6

main87939-30F80-J3i202011-202312

FORCE BLUE MULTIPLE LAYER,8Y7

main87939-62110i202011-202212

main87939-62240i202312-202411

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-62110-A2i202011-202212

main87940-62110-B0i202011-202212

main87940-62110-B2i202011-202212

main87940-62110-C0i202011-202212

main87940-62110-C1i202011-202212

main87940-62110-D0i202011-202212

main87940-62110-J0i202011-202212

main87940-62110-J1i202011-202212

main87940-62240-A0supersedes 87940-62080-A2i202312-202411

main87940-62240-B0supersedes 87940-62080-B0i202412

PRECIOUS SILVER,1J6

main87940-62240-B1supersedes 87940-62080-B2i202312-202411

main87940-62240-C0supersedes 87940-62080-C0i202312-202411

main87940-62240-C1supersedes 87940-62080-C1i202212-202312

main87940-62240-D0supersedes 87940-62080-D0i202312-202411

main87940-62240-J0supersedes 87940-62080-J0i202312-202411

main87940-62240-J1supersedes 87940-62080-J1i202312-202411

87946RETRACTOR, OUTER MIRROR, RH

main87908-62110-A0i202011-202212

main87908-62110-B0i202011-202212

main87908-62110-B2i202011-202212

main87908-62110-C0i202011-202212

main87908-62110-C1i202011-202212

main87908-62110-D0i202011-202212

main87908-62110-J0i202011-202212

main87908-62110-J1i202011-202212

main87908-62240-A0supersedes 87908-62080-A2i202212-202312

main87908-62240-B0supersedes 87908-62080-B0i202312-202411

main87908-62240-B1supersedes 87908-62080-B2i202412

PRECIOUS METAL,1L5

main87908-62240-C0supersedes 87908-62080-C0i202312-202411

main87908-62240-C1i202212-202312

main87908-62240-D0supersedes 87908-62080-D0i202312-202411

main87908-62240-J0supersedes 87908-62080-J0i202212-202312

main87908-62240-J1supersedes 87908-62080-J1i202312-202411

87948COVER, OUTER MIRROR HOLE, LH

main87948-30G70-A1i202011-202312

PRECIOUS WHITE PEARL,090

main87948-30G70-B1i202011-202312

PRECIOUS SILVER,1J6

main87948-30G70-B3i202011-202312

PRECIOUS METAL,1L5

main87948-30G70-C0i202011-202312

BLACK,202

main87948-30G70-C1i202011-202312

PRECIOUS BLACK,219

main87948-30G70-D3i202011-202312

EMOTIONAL RED 2,3U5

main87948-30G70-J0i202011-202312

DK.BLUE MC.,8S6

main87948-30G70-J3i202011-202312

FORCE BLUE MULTIPLE LAYER,8Y7

main87948-62110i202011-202212

main87948-62240i202312-202411

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-30G60-A1i202312-202411

main8794A-30G60-B1i202312-202411

main8794A-30G60-B3i202011-202312

PRECIOUS METAL,1L5

main8794A-30G60-C0i202312-202411

main8794A-30G60-C1i202312-202411

main8794A-30G60-D3i202312-202411

main8794A-30G60-J0i202312-202411

main8794A-30G60-J3i202312-202411

87961MIRROR OUTER, LH

main87961-10850i202312-202411

87966RETRACTOR, OUTER MIRROR, LH

main87909-62110-A2i202011-202212

main87909-62110-B0i202011-202212

main87909-62110-B2i202011-202212

main87909-62110-C0i202011-202212

main87909-62110-C1i202011-202212

main87909-62110-D0i202011-202212

main87909-62110-J0i202011-202212

main87909-62110-J1i202011-202212

main87909-62240-A0supersedes 87909-62080-A2i202312-202411

main87909-62240-B0supersedes 87909-62080-B0i202312-202411

main87909-62240-B1supersedes 87909-62080-B2i202212-202312

main87909-62240-C0supersedes 87909-62080-C0i202212-202312

main87909-62240-C1i202212-202312

main87909-62240-D0supersedes 87909-62080-D0i202412

EMOTIONAL RED 2,3U5

main87909-62240-J0supersedes 87909-62080-J0i202312-202411

main87909-62240-J1supersedes 87909-62080-J1i202312-202411

9017906146

main90179-06146

9017906274

main90179-06274

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section

MIRROR for Toyota MIRAI

This section contains 18 genuine Toyota parts for the MIRROR system of the Toyota MIRAI. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CLAMP, WIRING HARNESS, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, BRACKET, INNER RR VIEW MIRROR.
