Toyota MIRAI — METER

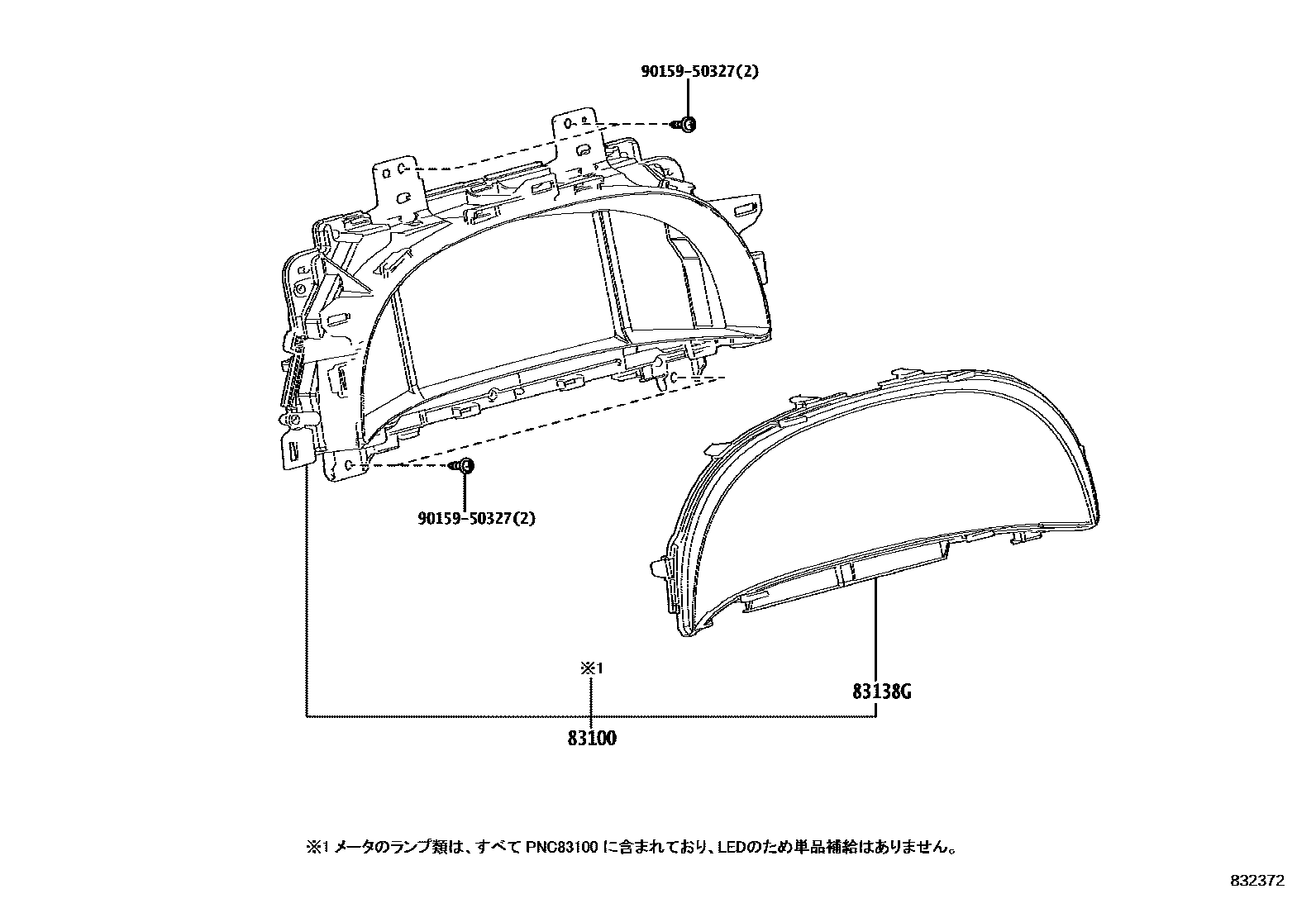

Parts diagram

83100METER ASSY, COMBINATION

main83800-62120i202011-202108

main83800-62121i202108-202212

main83800-62330i202212-202312

main83800-62380i202312-202402

main83800-62381i202402-202411

main83800-62420i202412

main83800-62270i202104-202108

main83800-62271i202104-202108

main83800-62272i202104-202108

main83800-62273i202104-202108

main83800-62274i202104-202108

main83800-62275i202104-202108

main83800-62290i202108-202212

main83800-62291i202108-202212

main83800-62292i202108-202212

main83800-62293i202108-202212

main83800-62294i202108-202212

main83800-62300i202212-202312

main83800-62301i202212-202312

main83800-62400i202412

83138GGLASS, COMBINATION METER

main83852-62120i202011-202312

main83852-62380i202412

main83852-62270i202412

9015950327

main90159-50327

3 parts on this diagram · 3 diagrams in section

METER for Toyota MIRAI

This section contains 7 genuine Toyota parts for the METER system of the Toyota MIRAI. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1, SCREW (FOR COMBINATION METER).
