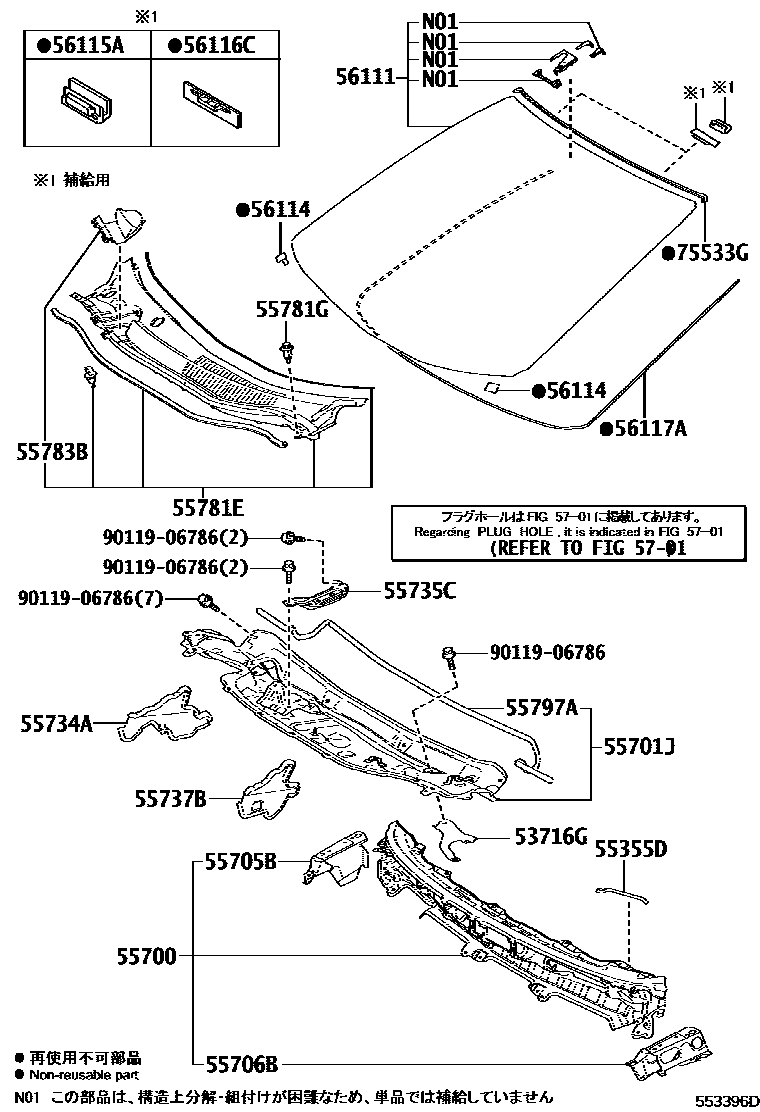

Toyota MIRAI — COWL PANEL & WINDSHIELD GLASS

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-75010i201412-202005

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-62020i201412-202005

55700PANEL ASSY, FRONT

main55700-62010i201412-202005

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-62010i201412-202005

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-62010i201412-202005

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-62010i201412-202005

55734APLATE, WATER GUARD, RH

main55734-62010i201412-202005

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-62010i201412-202005

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55738-62010i201412-202005

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-62070supersedes 55708-62050i201412-202005

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2i201412-201703

BLACK

main90467-07076-C7×2i201703-202005

BLACK

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-62020i201412-202005

55797ASEAL, COWL WATER EXTRACT

main55797-62010i201412-202005

56111GLASS, WINDSHIELD

main56101-62900supersedes 56101-62907i201412-201801

main56101-62908supersedes 56101-62909i201801-201811

main56101-62910supersedes 56101-62913i201811-202005

56114RETAINER, WINDSHIELD GLASS

main56114-62010×2i201412-202005

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2i201412-202005

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i201412-202005

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010i201412-202005

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-62010i201412-202005

9011906786

main90119-06786

21 parts on this diagram · 2 diagrams in section

COWL PANEL & WINDSHIELD GLASS for Toyota MIRAI

This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota MIRAI. Key components include: EXTENSION, FRONT FENDER APRON, REAR LH, CUSHION, INSTRUMENT PANEL, NO.1, PANEL ASSY, FRONT, PANEL SUB-ASSY, COWL TOP, OUTER, PANEL SUB-ASSY, COWL TOP SIDE, RH.
