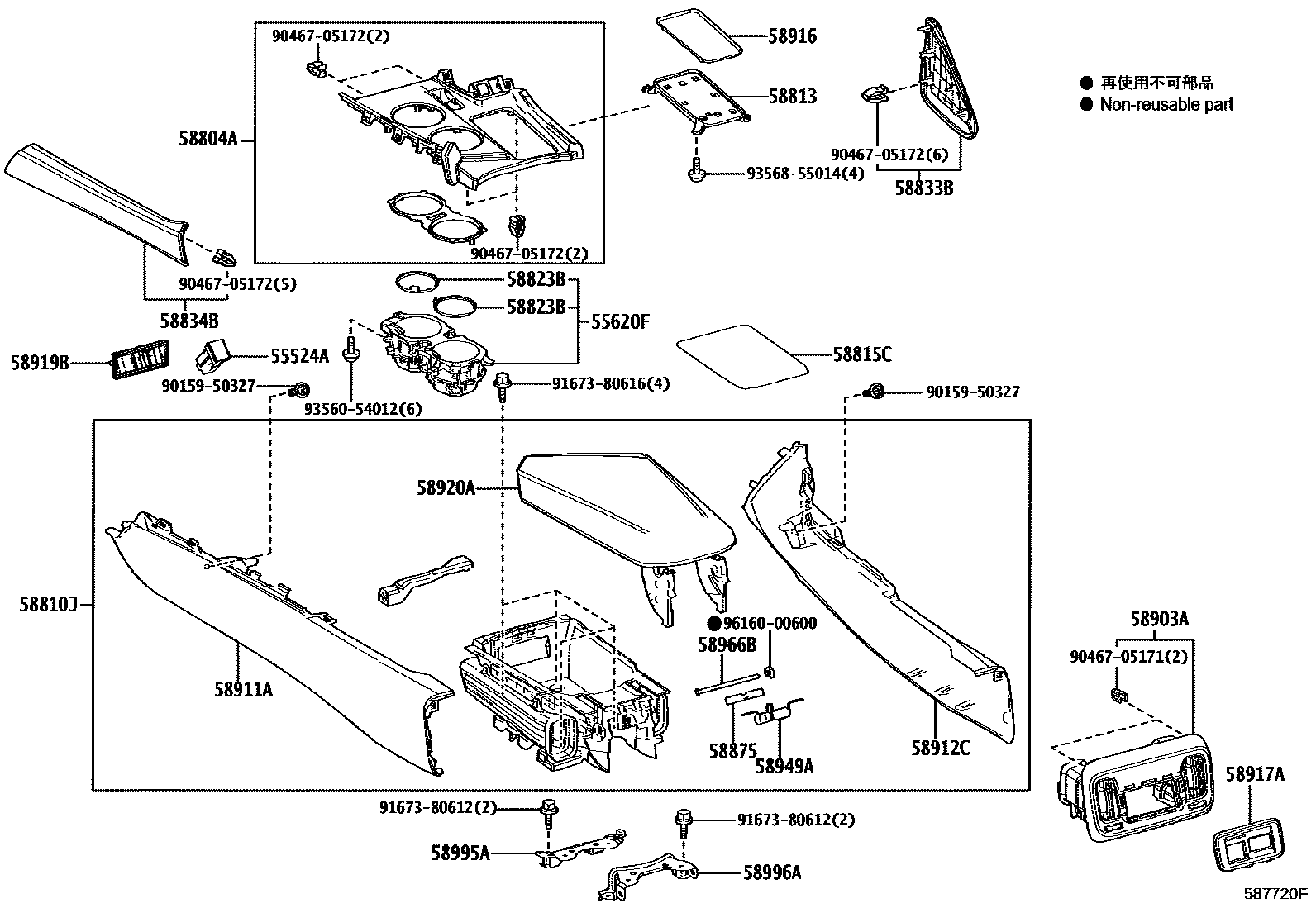

Toyota MIRAI — CONSOLE BOX & BRACKET
55524ACOVER, SWITCH BASE HOLE
BLACK
55620FHOLDER ASSY, CONSOLE BOX CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
58810JBOX ASSY, CONSOLE
BLACK/IVORY,TRIM21
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM20
BROWN/IVORY,TRIM01
BROWN/GRAY,TRIM00
BROWN/GRAY,TRIM0#
58813BOX, CONSOLE, UPPER
58815CCARPET, CONSOLE BOX
58823BBOX, CONSOLE COMPARTMENT
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
WHITE,TRIM0#
BLACK,TRIM2#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK/IVORY,TRIM21
BLACK/GRAY,TRIM20
BLACK/GRAY,TRIM2#
BROWN/IVORY,TRIM01
BROWN/GRAY,TRIM00
BROWN/GRAY,TRIM0#
58875SPACER, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,2#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,2#
58916MAT, BOX BOTTOM
58917ACOVER, CONSOLE BOX, REAR
58920AARMREST ASSY, REAR CONSOLE
BLACK/IVORY,TRIM21
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM20
BROWN/IVORY,TRIM01
BROWN/GRAY,TRIM0#
BROWN/GRAY,TRIM00
58949ASPRING, CONSOLE BOX MOUNTING BRACKET
58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9015950327
main90159-50327
9046705171
main90467-05171
9046705172
main90467-05172
9167380612
main91673-80612
9167380616
main91673-80616
9356054012
main93560-54012
9356855014
main93568-55014
9616000600
main96160-00600
29 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota MIRAI
This section contains 29 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota MIRAI. Key components include: COVER, SWITCH BASE HOLE, HOLDER ASSY, CONSOLE BOX CUP, PANEL SUB-ASSY, CONSOLE, UPPER, BOX ASSY, CONSOLE, BOX, CONSOLE, UPPER.
