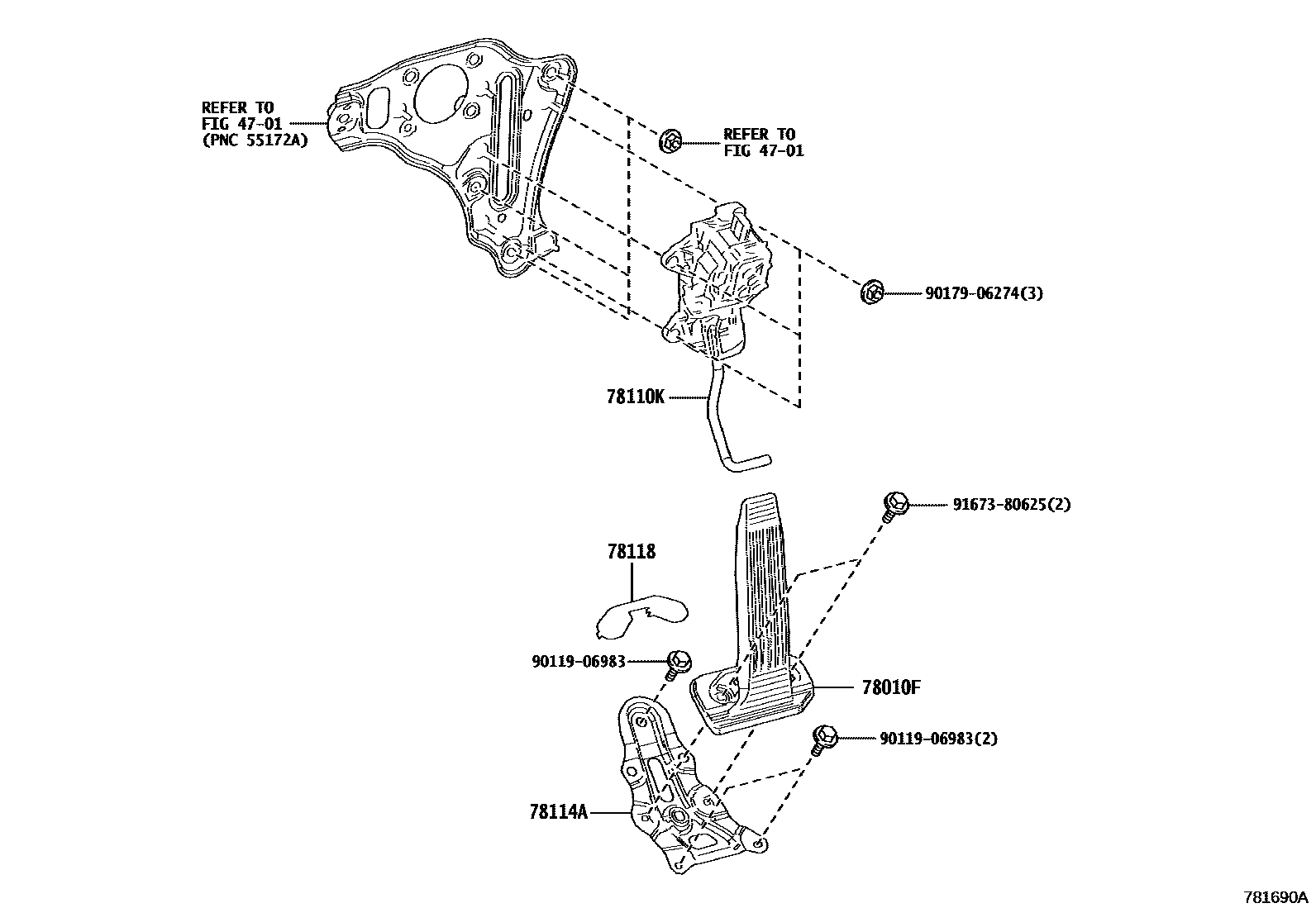

Toyota MIRAI — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-50050i202312-202411

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-62020i202312-202411

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-11010i202312-202411

78118PAD, ACCELERATOR PEDAL

main78117-11010i202312-202411

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

8 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota MIRAI

This section contains 8 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota MIRAI. Key components include: BRAKE PEDAL & BRACKET, PEDAL ASSY, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), BRACKET, ACCELERATOR PEDAL SUPPORT, PAD, ACCELERATOR PEDAL.
