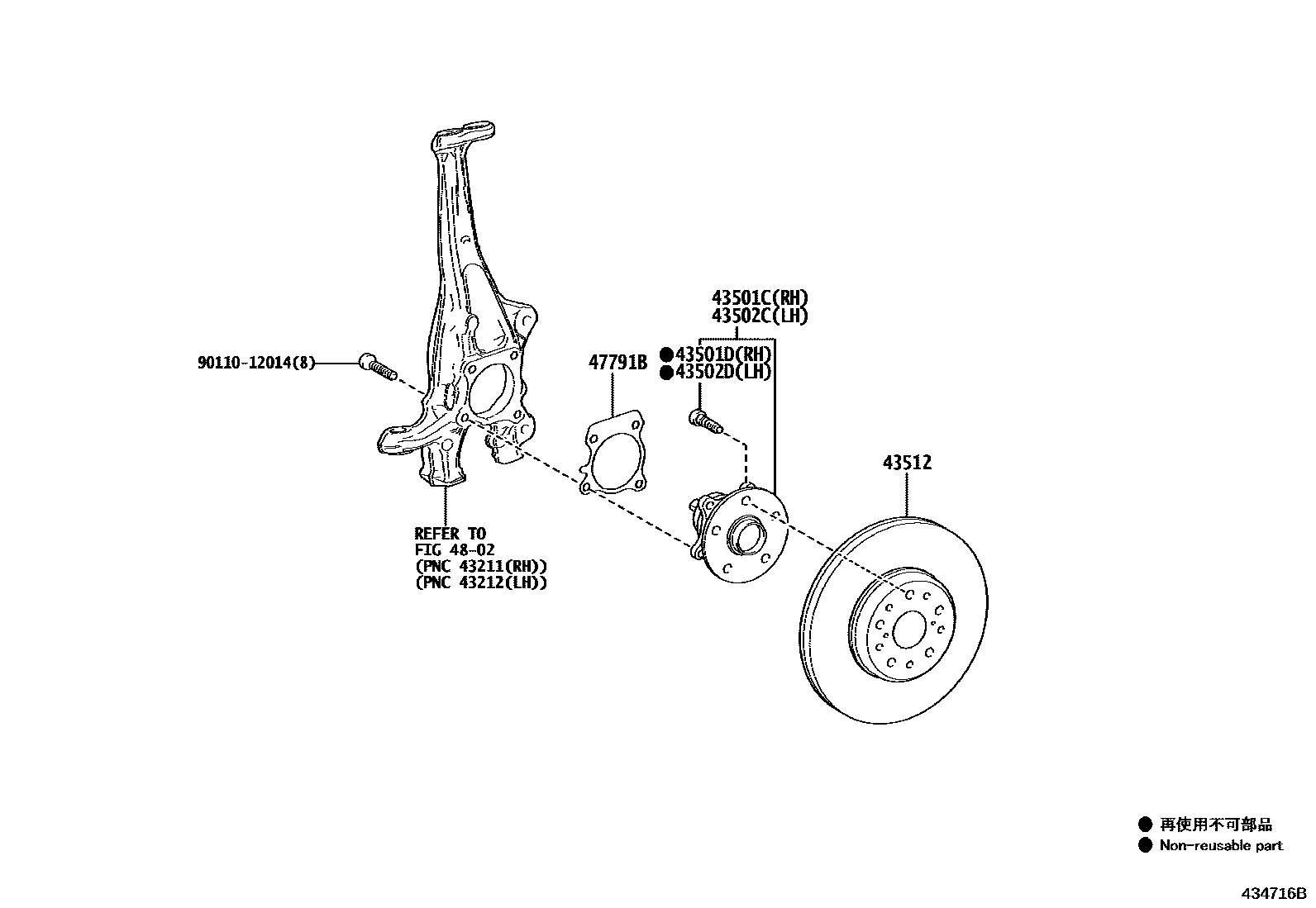

Toyota MIRAI — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-62020i202401-202411

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×5i202401-202411

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-62020i202401-202411

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×5i202401-202411

43512DISC, FRONT

main43512-30440×2i202401-202411

main43512-50240×2i202108-202304

47791BPLATE, DISC BRAKE AIR GUIDE

main47791-11010×2i202401-202411

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011012014

main90110-12014

8 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota MIRAI

This section contains 8 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota MIRAI. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), DISC, FRONT.
