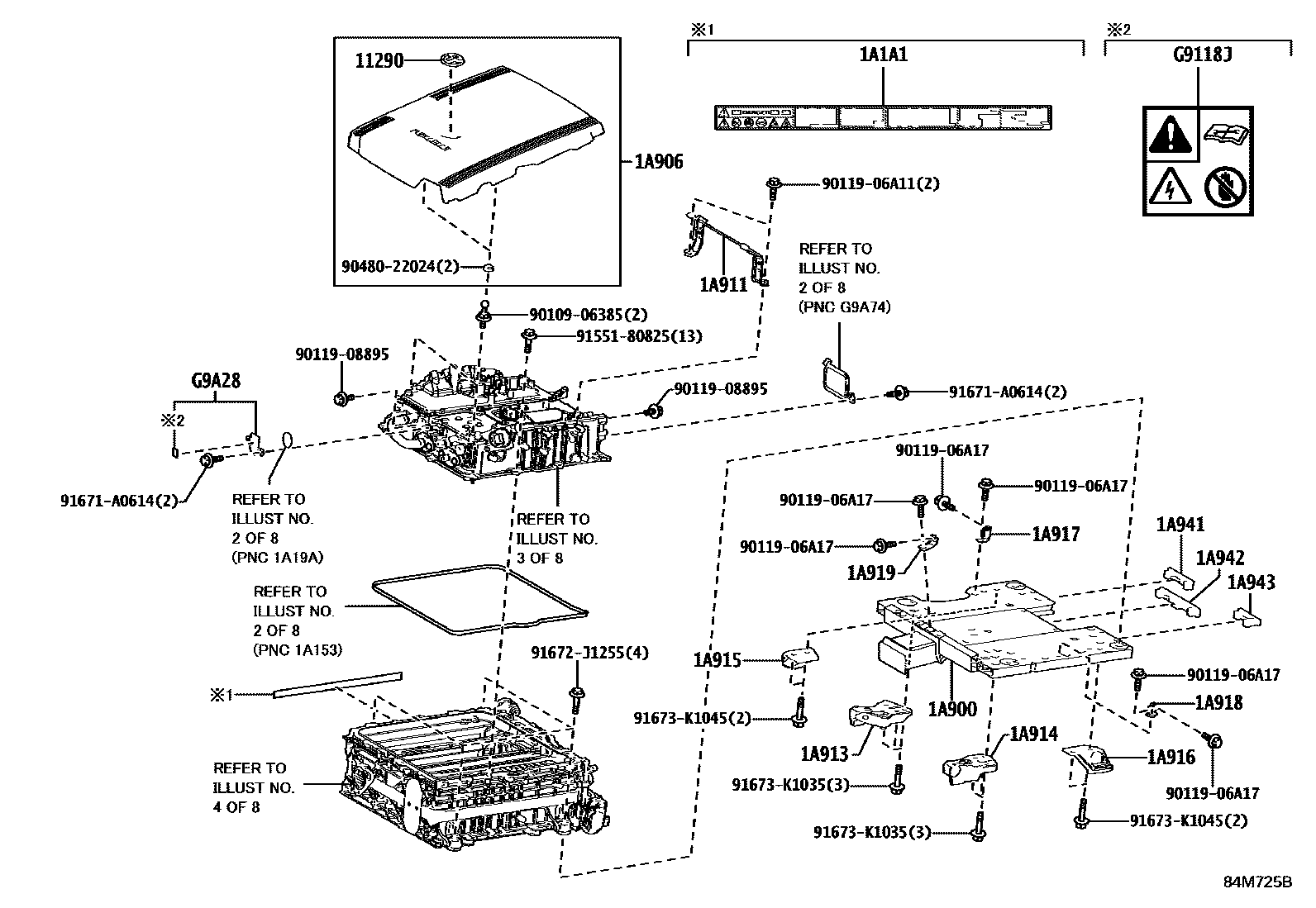

Toyota MIRAI — FCEV STACK & CONVERTER

0001 1FC STACK 0002 1FC STACK OR CONVERTER(KIT) 0003 1FC CONVERTER(CONFIGURATION PA0004 1FC STACK(CONFIGURATION PARTS)0005 1MOUNTING 0006 1CABLE 0007 1BRACKET 0008 1HYDROGEN DETECTOR

11290PLATE ASSY, FC STACK NAME

main11290-37010i3KM..JPD20202108-202212

main1A90B-77010i3KM..JPD20202411

1A1A1LABEL, FC STACK CAUTION, NO.1

main1A1A1-77031i3KM..JPD20202108-202304

main1A1A1-77032i3KM..JPD20202401-202411

1A900FRAME ASSY, FC STACK

main1A900-77010i3KM..JPD20202401-202411

1A906COVER SUB-ASSY, FC STACK

main1A906-77010i3KM..JPD20202108-202212

main1A906-77011i3KM..JPD20202411

1A911BRACKET, FC STACK COVER

main1A911-77010i3KM..JPD20202401-202411

1A913BRACKET, FC MOUNTING, FRONT RH

main1A913-77010i3KM..JPD20202411

1A914BRACKET, FC MOUNTING, FRONT LH

main1A914-77010i3KM..JPD20202401-202411

1A915BRACKET, FC MOUNTING, REAR RH

main1A915-77020i3KM..JPD20202401-202411

1A916BRACKET, FC MOUNTING, REAR LH

main1A916-77010i3KM..JPD20202401-202411

1A917BRACKET, FC STACK FRAME SUPPORT, RH

main1A917-77010i3KM..JPD20202401-202411

1A918BRACKET, FC STACK FRAME SUPPORT, LH

main1A918-77010i3KM..JPD20202401-202411

1A919BRACKET, FC STACK FRAME SUPPORT, FRONT

main1A919-77010i3KM..JPD20202401-202411

1A941COVER, FC STACK FRAME, NO.1

main1A941-77010i3KM..JPD20202411

1A942COVER, FC STACK FRAME, NO.2

main1A942-77010i3KM..JPD20202411

1A943COVER, FC STACK FRAME, NO.3

main1A943-77010i3KM..JPD20202401-202411

G9118JLABEL, UNIT CONTROLLER CAUTION, NO.1

mainG911862011iJPD20202401-202411

G9A28COVER, FC CONVERTER SERVICE HOLE, FRONT

mainG9A2862021iJPD20202401-202411

9010906385

main90109-06385

9011906A11

main90119-06A11

9011906A17

main90119-06A17

9011908895

main90119-08895

9048022024

main90480-22024

9155180825

main91551-80825

91671A0614

main91671-A0614

91672J1255

main91672-J1255

91673K1035

main91673-K1035

91673K1045

main91673-K1045

27 parts on this diagram · 8 diagrams in section
