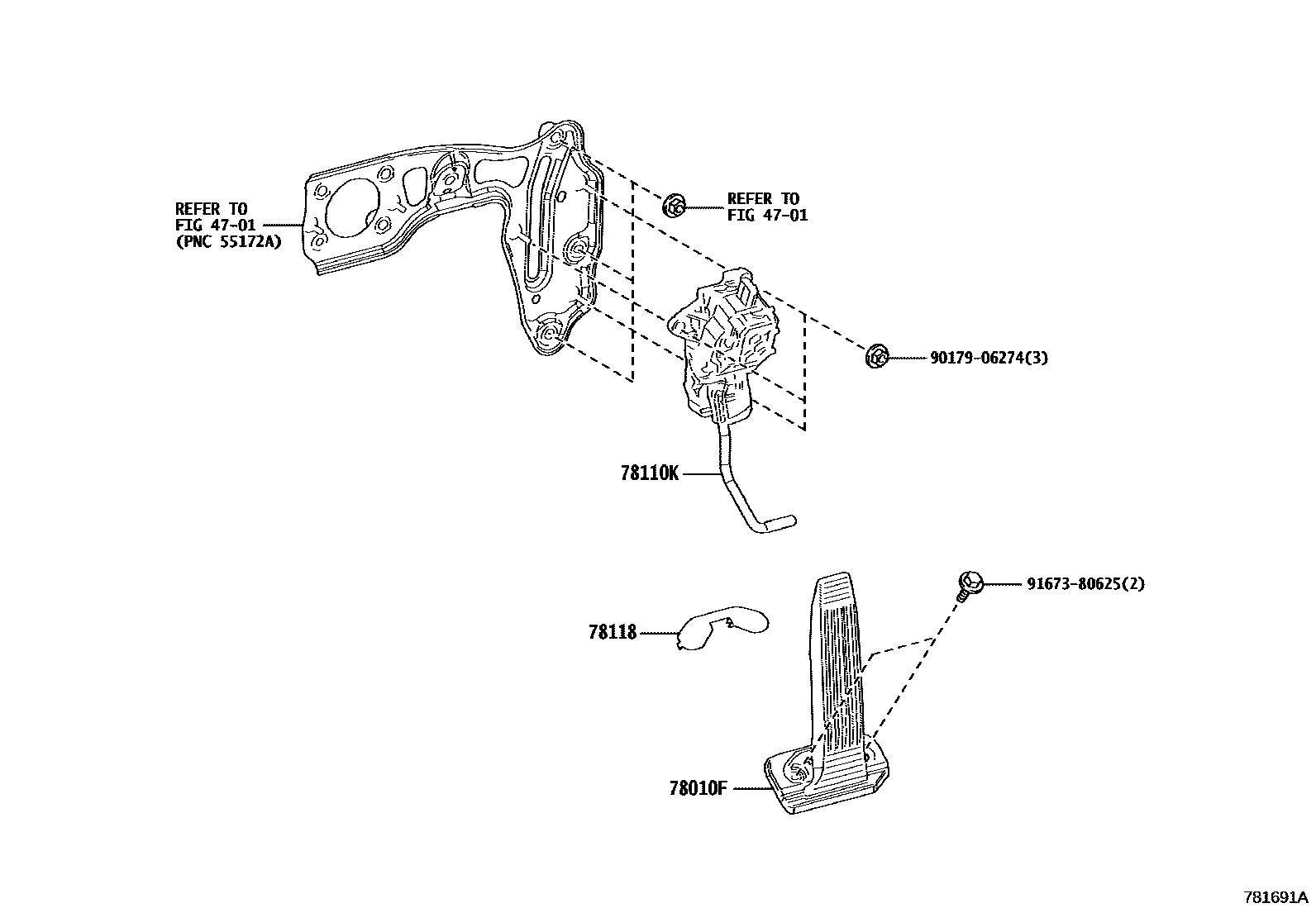

Toyota MIRAI — ACCELERATOR LINK

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-50050iJPD20202401-202411

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-62010iJPD20202401-202411

78118PAD, ACCELERATOR PEDAL

main78117-11010iJPD20202401-202411

9017906274

main90179-06274

9167380625

main91673-80625

6 parts on this diagram · 1 diagram in section
