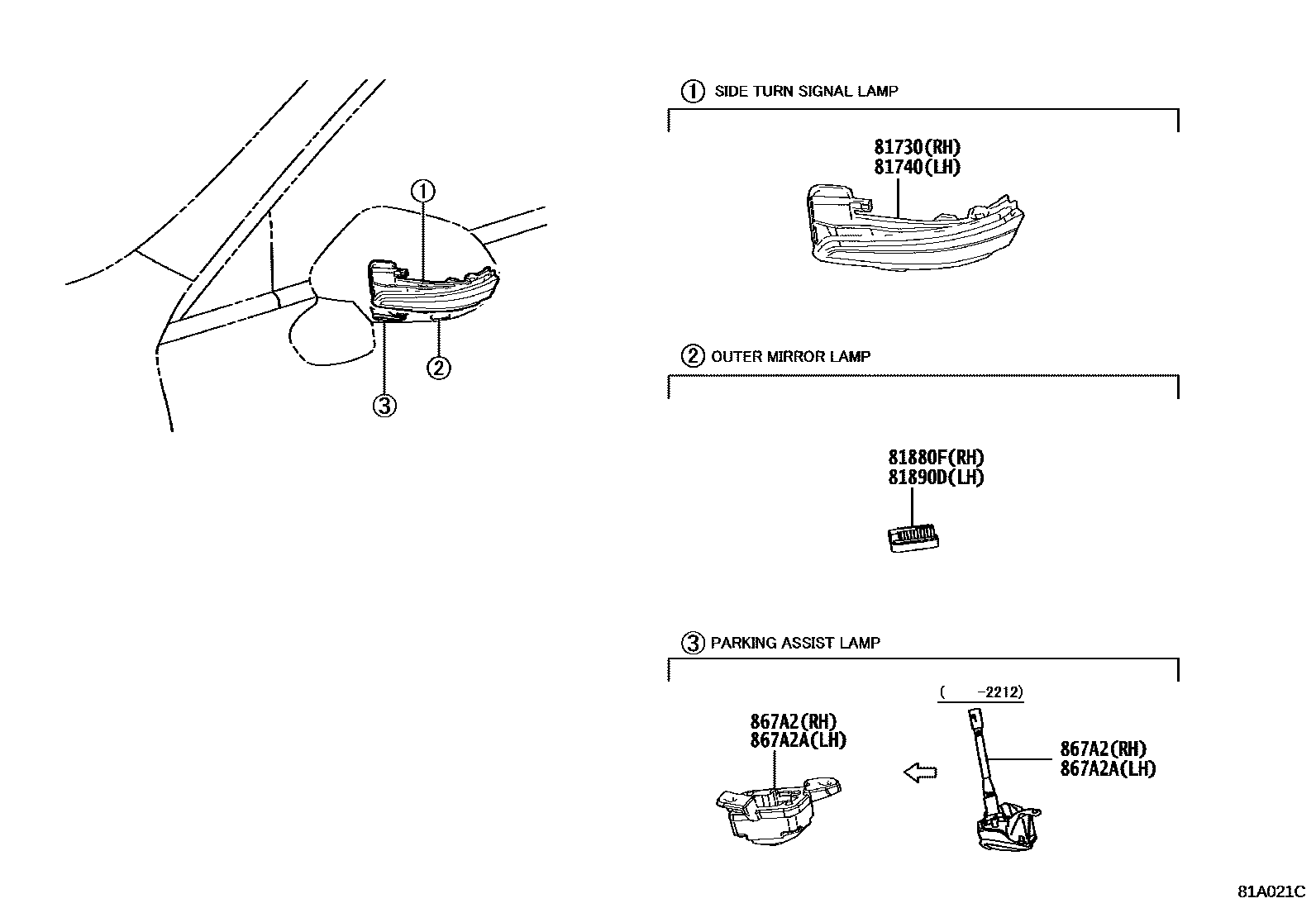

Toyota MIRAI — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-30171i202011-202101

main81730-30172i202102-202312

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-30161i202011-202101

main81740-30162i202312-202411

81880FLAMP ASSY, OUTER MIRROR, RH

main81880-62010supersedes 81880-30060i202212-202312

OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM); SAUDI ARABIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA); U.A.E. SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)

main81880-30060i202312-202411

OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA; SAUDI ARABIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *FLA & *PVM; U.A.E. SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *FLA & *PVM

81890DLAMP ASSY, OUTER MIRROR, LH

main81880-62010supersedes 81890-30120i202312-202411

OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)

main81890-30120i202412

SAUDI ARABIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *FLA & *PVM; U.A.E. SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *FLA & *PVM

867A2LIGHT, PARKING ASSIST, RH

main867A2-60010i202212-202304

CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM); COSTA RICA SPEC&CLEARANCE & BACK SONAR-WITH(*PKSB)

main867A2-60030i202412

main867A2-62010i202011-202212

INTELIGENT PARKING ASSIST-WITH

867A2ALIGHT, PARKING ASSIST, LH

main867A2-60020i202212-202304

CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM); COSTA RICA SPEC&CLEARANCE & BACK SONAR-WITH(*PKSB)

main867A2-60040i202305-202312

CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM); COSTA RICA SPEC&CLEARANCE & BACK SONAR-WITH(*PKSB)

main867A2-62020i202011-202212

INTELIGENT PARKING ASSIST-WITH

6 parts on this diagram · 1 diagram in section

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP for Toyota MIRAI

This section contains 6 genuine Toyota parts for the SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP system of the Toyota MIRAI. Key components include: LAMP ASSY, SIDE TURN SIGNAL, RH, LAMP ASSY, SIDE TURN SIGNAL, LH, LAMP ASSY, OUTER MIRROR, RH, LAMP ASSY, OUTER MIRROR, LH, LIGHT, PARKING ASSIST, RH.
