Toyota MEGA CRUISER — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85031DVALVE SUB-ASSY, WASHER NO.2
85031FVALVE SUB-ASSY, WASHER NO.3
85035NOZZLE SUB-ASSY, WASHER
85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
8536195A02HOLDER, WINDSHIELD WASHER
main85361-95A02
9017006013
main90170-06013
9046709025
main90467-09025
9046907001
main90469-07001
91611G0612
main91611-G0612

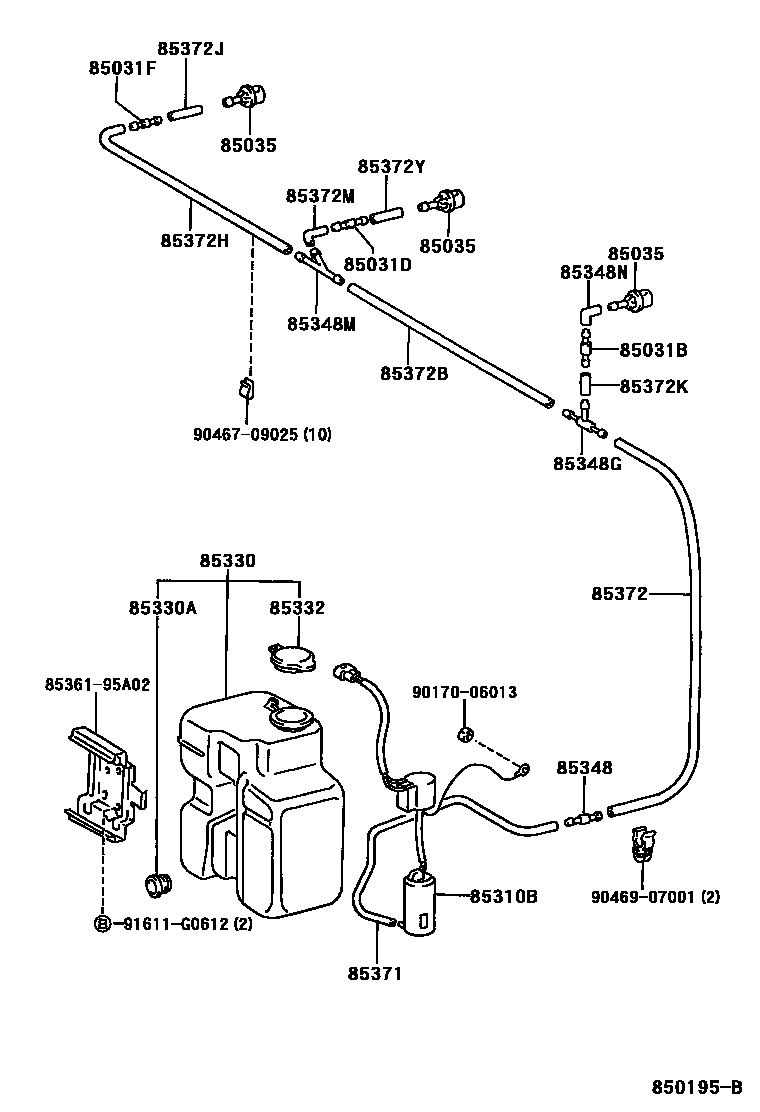

25 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota MEGA CRUISER
This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota MEGA CRUISER. Key components include: VALVE SUB-ASSY, WASHER, VALVE SUB-ASSY, WASHER NO.2, VALVE SUB-ASSY, WASHER NO.3, NOZZLE SUB-ASSY, WASHER, MOTOR & PUMP ASSY, WINDSHIELD WASHER.
