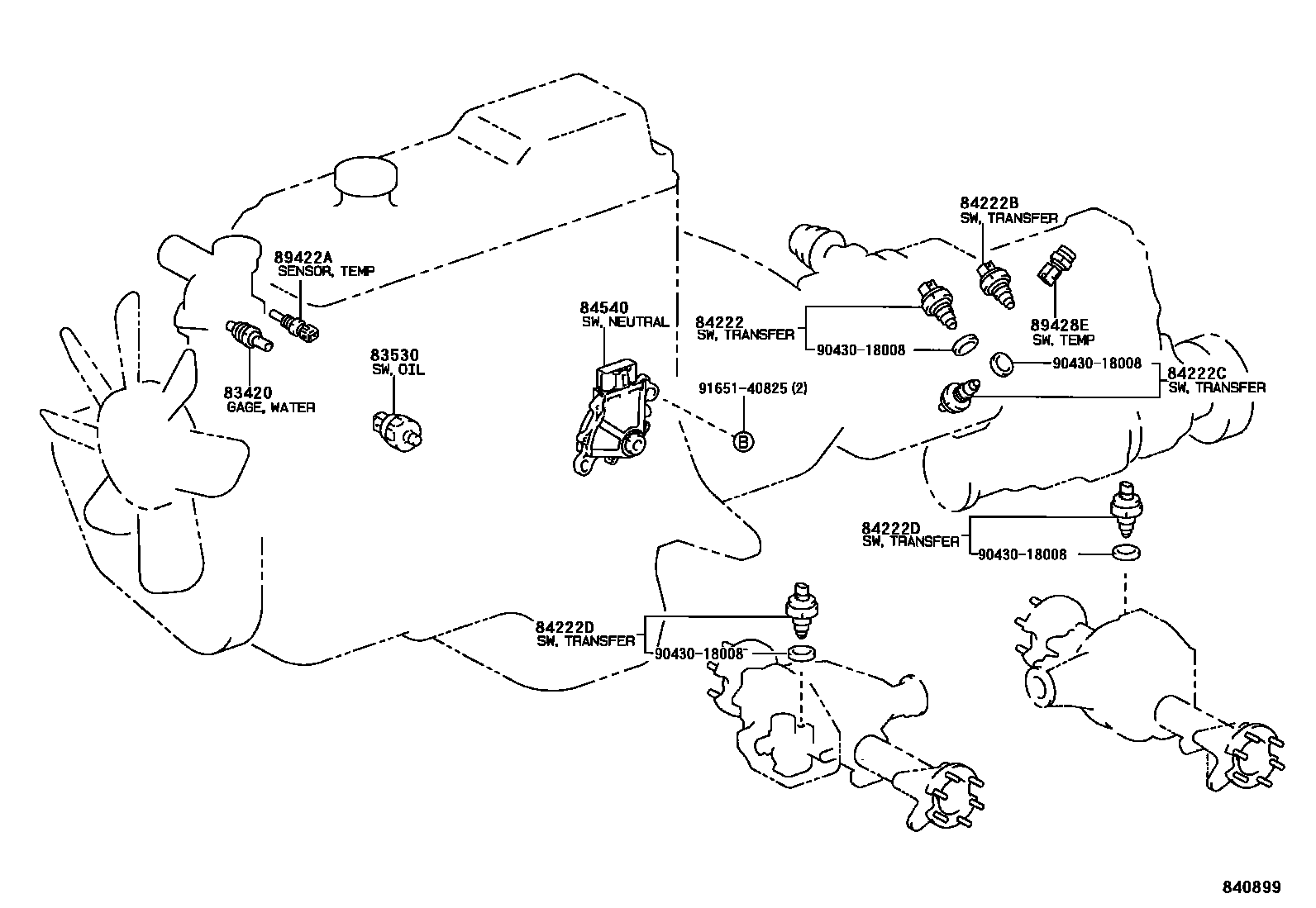

Toyota MEGA CRUISER — SWITCH & RELAY & COMPUTER

0001 1�����,�����,��� ���� 0002 1����� �-� ��- 0003 1����� ��- 0004 1��� ��- 0005 1����� ���� 0006 1�������� & �����-��� ����,���0007 1���-,����-

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBXD20199601

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14070iBXD20199601-199803

main83530-28010iBXD20199803

main83530-30100iBXD20199601-199803

main83530-60010iBXD20199803

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iBXD20199601

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080iBXD20199601-199909

main84222-60081iBXD20199909

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010iBXD20199601

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-12010×2iBXD20199601

84540SWITCH ASSY, NEUTRAL START

main84540-65010iBXD20199601

89422ASENSOR, WATER TEMPERATURE

main89422-20010iBXD20199601

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-60090iBXD20199601

9043018008

main90430-18008

9165140825

main91651-40825

11 parts on this diagram · 7 diagrams in section
