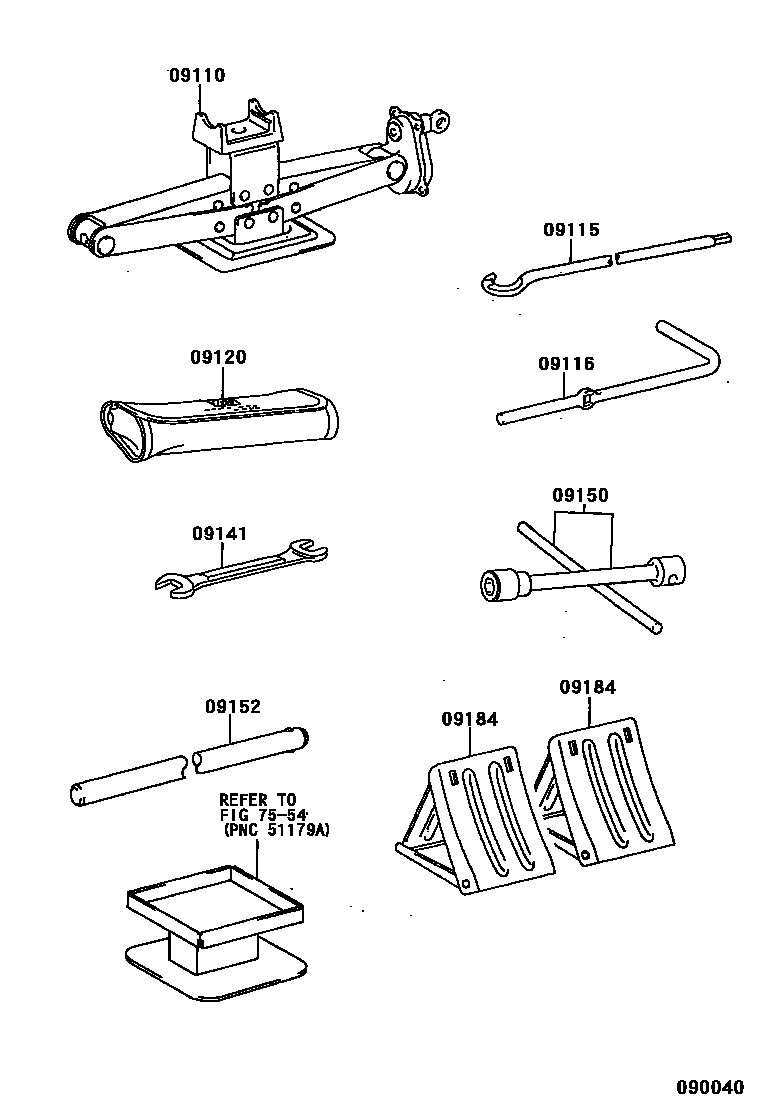

Toyota MEGA CRUISER — STANDARD TOOL

09110JACK ASSY

main09111-65020i199601

09115ROD SUB-ASSY, JACK HANDLE

main09115-35070i199601

09116LEVER, JACK HANDLE

main09116-60010i199601

09120BAG, TOOL

main09120-36070i199601

09141SPANNER

main99914-11417i199601

09150WRENCH, HUB NUT BOX

main09150-65010i199601

09152HANDLE, HUB NUT BOX WRENCH

main09152-65020i199601

09184STOPPER, WHEEL

main09184-60010×2i199601

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

9 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota MEGA CRUISER

This section contains 9 genuine Toyota parts for the STANDARD TOOL system of the Toyota MEGA CRUISER. Key components include: JACK ASSY, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL, SPANNER.
