Toyota MEGA CRUISER — PARTIAL ENGINE ASSEMBLY

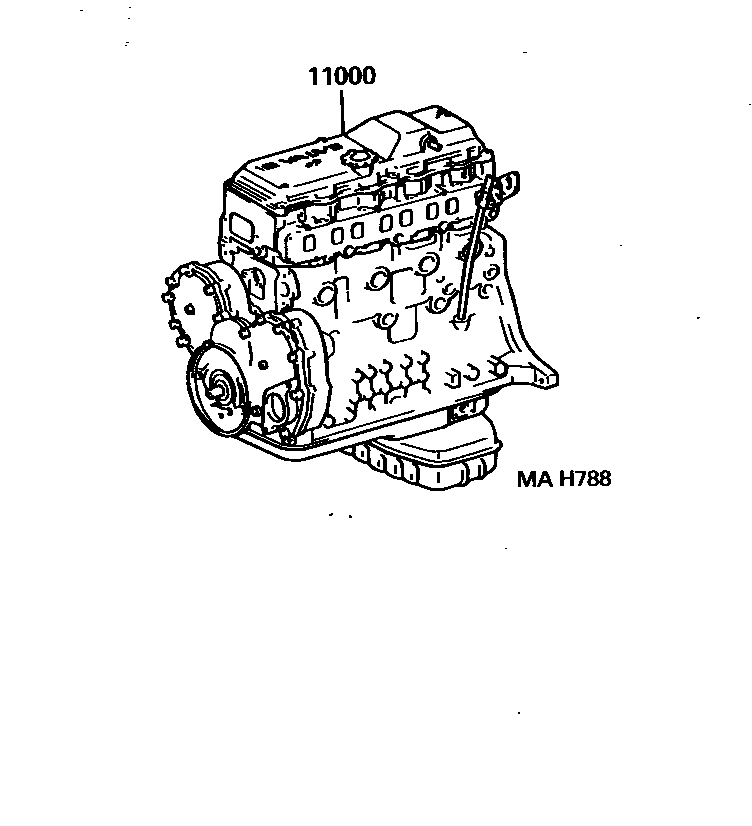

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-5C170i199601-199906

main19000-5C350i199906

1 parts on this diagram · 1 diagram in section
