Toyota MEGA CRUISER — METER

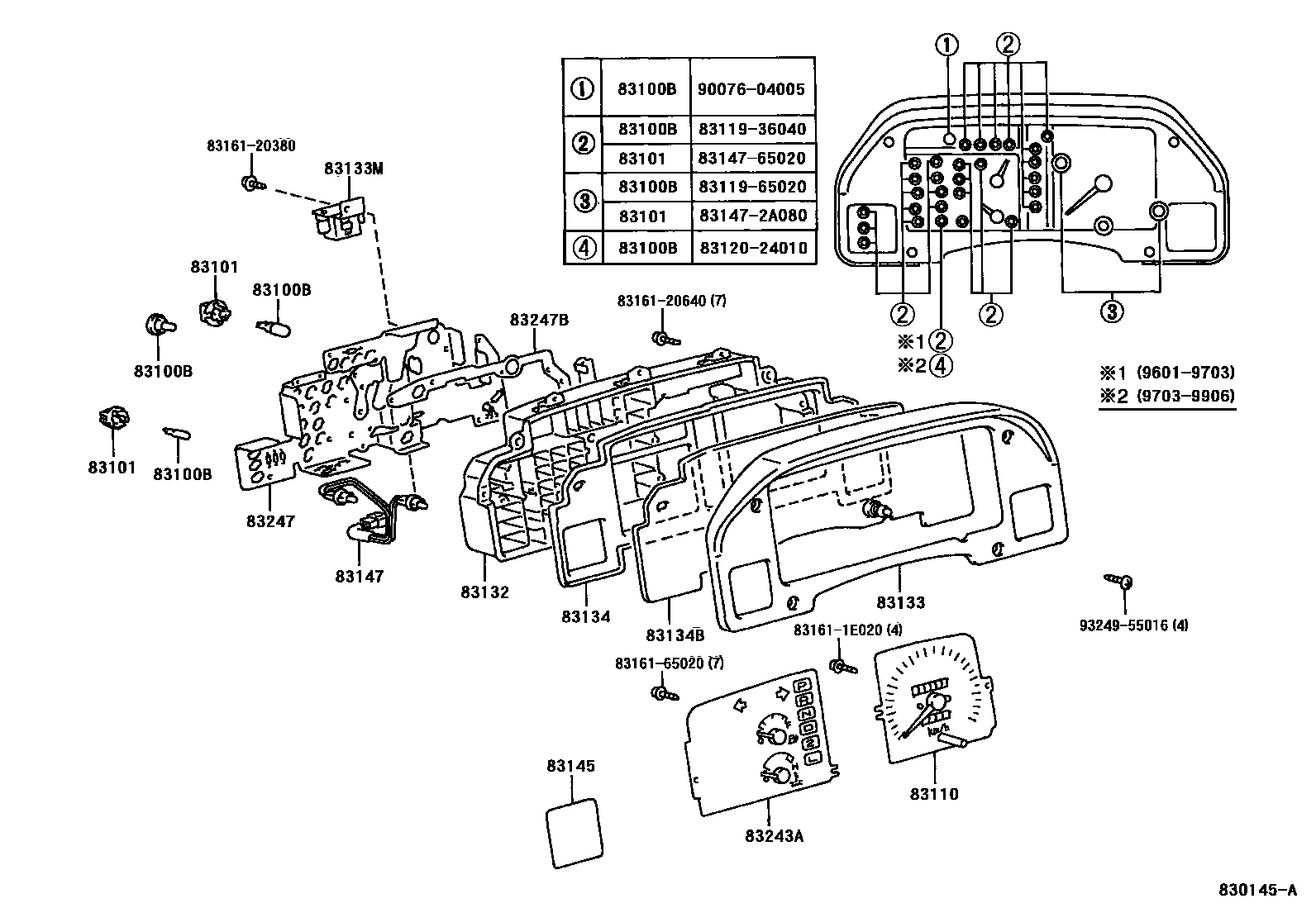

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83119-36040i199601-199703

main83119-65020i199601-199703

main83120-24010i199703

main90010-06016i199906

main90010-06017i199703

main90076-04005i199601

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83147-2A080i199601-199703

BULB;24V 3W

main83147-65020i199601-199703

BULB;24V 1.8W

83110SPEEDOMETER ASSY

main83110-65040i199601

83132CASE, COMBINATION METER

main83132-65020i199601

83133PLATE, COMBINATION METER, NO.1

main83821-65010i199601

83133MCONVERTOR VOLT

main83133-65020i199601

83134COVER, COMBINATION METER, NO.1

main83141-65020i199601

83134BCOVER, COMBINATION METER, NO.2

main83138-65020i199601

83145LENS, METER, NO.1

main83145-65020i199601

83147LAMP, METER NO.1

main83147-65040i199601

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-65010i199601-199906

main83882-65050i199906

83247PLATE, METER CIRCUIT

main83861-65010i199601-199703

main83861-65030i199703-199906

main83861-65050i199906

83247BPLATE, METER CIRCUIT, NO.2

main83862-65010i199601

831611E020CASE, COMBINATION METER MIRROR, NO.1

main83161-1E020

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120640CASE, COMBINATION METER MIRROR, NO.1

main83161-20640

8316165020CASE, COMBINATION METER MIRROR, NO.1

main83161-65020

9324955016

main93249-55016

18 parts on this diagram · 3 diagrams in section

METER for Toyota MEGA CRUISER

This section contains 24 genuine Toyota parts for the METER system of the Toyota MEGA CRUISER. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
