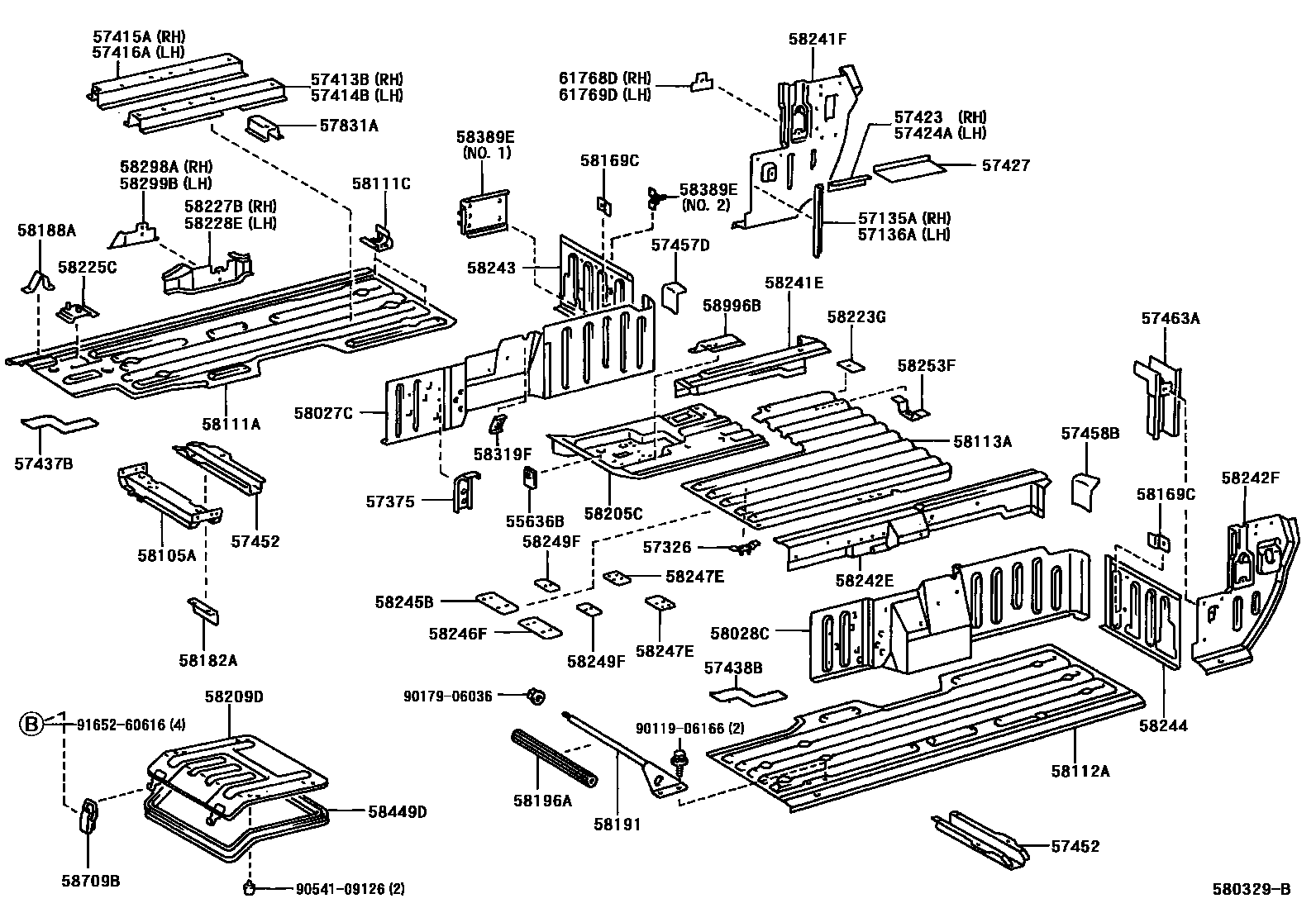

Toyota MEGA CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

55636BBRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55636-65020iBXD20199601

57135ABRACKET, FRONT FLOOR SIDE, RH

main57135-65020iBXD20199601

57136ABRACKET, FRONT FLOOR SIDE, LH

main57135-65020iBXD20199601

57326BRACKET, WATER VALVE

main57326-65010iBXD20199601-199906

main57326-65011iBXD20199906

57375REINFORCEMENT, FRONT STEP PANEL, NO.1 RH

main57375-65010iBXD20199601

57413BRAIL, FLOOR SIDE, CENTER RH

main57413-65030iBXD20199601

57414BRAIL, FLOOR SIDE, CENTER LH

main57414-65020iBXD20199601

57415ARAIL SUB-ASSY, FLOOR SIDE, REAR RH

main57047-65030iBXD20199601

57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH

main57048-65010iBXD20199601

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-65020iBXD20199601

57424ABRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-65020iBXD20199601

57427REINFORCEMENT, FRONT FLOOR TO BRACE

main57427-65010iBXD20199601

57437BPLATE, REAR STEP SIDE, RH

main57437-65010iBXD20199612

57438BPLATE, REAR STEP SIDE, LH

main57438-65010iBXD20199906

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-65020×2iBXD20199601

57457DPATCH, FLOOR SIDE MEMBER, REAR RH

main57457-65010iBXD20199601-199906

57458BPATCH, FLOOR SIDE MEMBER, REAR LH

main57458-65020iBXD20199601-199906

57463AREINFORCEMENT, CENTER FLOOR CROSSMEMBER

main57053-65010×2iBXD20199601

57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1

main57831-65010×2iBXD20199601

58027CPANEL SUB-ASSY, CENTER FLOOR SIDE, RH

main58027-65050iBXD20199601

58028CPANEL SUB-ASSY, CENTER FLOOR SIDE, LH

main58028-65050iBXD20199601

58105ABRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE, RH

main58105-65020iBXD20199601

58111APAN, FRONT FLOOR, RH

main58111-65060iBXD20199601

58111CPAN, FRONT FLOOR

main58111-65020×4iBXD20199601-199906

58112APANEL, FRONT FLOOR, LH

main58112-65040iBXD20199601

58113APANEL, FRONT FLOOR, CENTER

main58113-65060iBXD20199601

58169CPATCH, FRONT FLOOR REAR

main58169-65010×4iBXD20199601-199906

58182ARETAINER, SEAT RAIL, NO.2

main58182-65040iBXD20199601

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-65010iBXD20199601-199906

58191FOOTREST, FRONT FLOOR

main58190-65010iBXD20199601

58196ATRIM, FOOTREST

main58196-65010iBXD20199601

58205CPANEL SUB-ASSY, SHIFT LEVER HOUSING

main58205-65030iBXD20199601

58209DCOVER SUB-ASSY, BATTERY BOX

main58209-65010iBXD20199601

58223GREINFORCEMENT, SEAT SET, NO.1

main58223-65010×2iBXD20199601

58225CHOLDER, REAR SEAT CUSHION

main58225-65010iBXD20199601-199906

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-65020iBXD20199601

58228EPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-65030iBXD20199601

58241EPANEL, FLOOR SIDE, FRONT RH

main58241-65120iBXD20199601

58241FPANEL, FLOOR SIDE, RH

main58241-65110iBXD20199601

58242EPANEL, FLOOR SIDE, FRONT LH

main58242-65100iBXD20199601

58242FPANEL, FLOOR SIDE, LH

main58242-65090iBXD20199601

58243PANEL, REAR FLOOR SIDE, RH

main58243-65040iBXD20199601

58244PANEL, REAR FLOOR SIDE, LH

main58244-65050iBXD20199601

58245BBRACKET, TRANSCEIVER, NO.1 RH

main58245-65020iBXD20199601-199906

58246FBRACKET, TRANSCEIVER, NO.1 LH

main58246-65010iBXD20199601-199906

58247EBRACKET, TRANSCEIVER, NO.2

main58247-65010×2iBXD20199601-199906

58249FBRACKET, TRANSCEIVER, NO.3

main58249-65010×2iBXD20199601-199906

58253FBRACKET, PARKING BRAKE CABLE

main58253-65010iBXD20199601-199906

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-65010iBXD20199601

58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58299-65020iBXD20199601

58319FBRACKET, REAR FLOOR SIDE PANEL

main58319-65030×2iBXD20199601

58389EBRACKET, HEATER HOSE CLAMP, NO.2

main58389-65040iBXD20199601-199906

main58389-65050iBXD20199906

58449DPACKING, BATTERY SERVICE HOLE COVER

main58449-65010iBXD20199601

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-95J01×2iBXD20199601

58996BBRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-65010iBXD20199601

61768DREINFORCEMENT, SEAT BELT ANCHOR

main61768-65020iBXD20199601

61769DREINFORCEMENT, SEAT BELT ANCHOR

main61768-65020iBXD20199601

9011906166

main90119-06166

9017906036

main90179-06036

9054109126

main90541-09126

9165260616

main91652-60616

61 parts on this diagram · 2 diagrams in section
