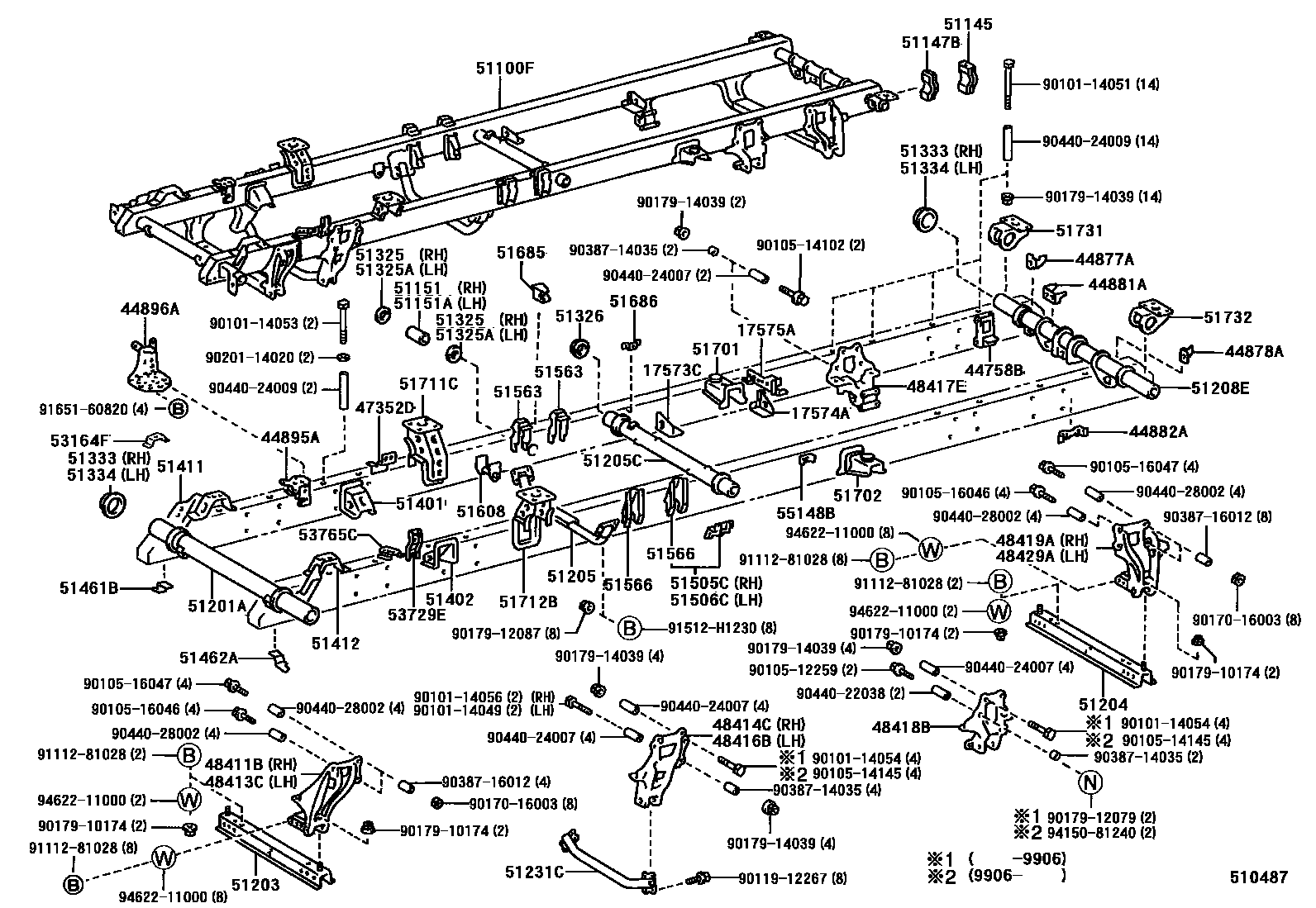

Toyota MEGA CRUISER — FRAME

17573CBRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-58120i15BFT..BXD20199601-199906

main17573-58180i15BFTE..BXD20199906

17574ABRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-58140i15BFT..BXD20199601-199906

main17574-58180i15BFTE..BXD20199906

17575ABRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-58050i15B#..BXD20199601

44758BBRACKET, AIR RESERVOIR SIDE RAIL

main44758-65010×2iBXD20199601

44877ABRACKET, TRAILER AIR BRAKE COUPLING, NO.1

main44877-65010iBXD20199601

44878ABRACKET, TRAILER AIR BRAKE COUPLING, NO.2

main44878-65010iBXD20199601

44881ABRACKET, AIR BRAKE REDUCING VALVE

main44881-65010iBXD20199601

44882ABRACKET, AIR BRAKE RELAY VALVE

main44882-65010×2iBXD20199601

44895ABRACKET, AIR BRAKE COMPRESSOR SIDE RAIL

main44895-65010×2iBXD20199601

44896ABRACKET, AIR BRAKE COMPRESSOR

main44896-65010iBXD20199601

47352DBRACKET, FLEXIBLE HOSE, NO.2

main47352-65020iBXD20199601

48411BBRACKET, SPRING, NO.1 RH

main48411-65020iBXD20199601-199906

main48411-65040iBXD20199906

48413CBRACKET, SPRING, NO.2 LH

main48413-65020iBXD20199601-199906

main48413-65040iBXD20199906

48414CBRACKET, SPRING, NO.3 RH

main48414-65020iBXD20199601-199906

main48414-65030iBXD20199906

48416BBRACKET, SPRING, NO.4 RH

main48416-65010iBXD20199601-199906

main48416-65020iBXD20199906

48417EBRACKET, SPRING, NO.5

main48417-65010iBXD20199601-199906

main48417-65020iBXD20199906

48418BBRACKET, SPRING, NO.6

main48418-65010iBXD20199601-199906

main48418-65020iBXD20199906

48419ABRACKET, SPRING, NO.7

main48419-65010iBXD20199601-199906

main48419-65020iBXD20199906

48429ABRACKET, SPRING, NO.8

main48429-65010iBXD20199601-199906

main48429-65020iBXD20199906

51100FFRAME SUB-ASSY

main51001-65170iBXD20199601-199906

main51001-65230iBXD20199906

51145STIFFENER, FRAME SIDE RAIL

main51145-65010×4iBXD20199601

51147BSEAL, FRAME SIDE RAIL STIFFENER

main51147-65010×4iBXD20199601

51151REINFORCEMENT, SIDE RAIL, NO.1

main51151-65010iBXD20199601

51151AREINFORCEMENT, SIDE RAIL, NO.1

main51151-65010iBXD20199601

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-65020iBXD20199601

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-65040iBXD20199601-199906

main51202-65060iBXD20199906

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51202-65030iBXD20199601-199906

main51202-65050iBXD20199906

sub51202-65051

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51241-65020iBXD20199601

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-65040iBXD20199601

51208ECROSSMEMBER SUB-ASSY, FRAME, NO.8

main51208-65010iBXD20199601

51231CCROSSMEMBER, FRAME, NO.3

main51231-65020iBXD20199601

51325RETAINER, FRAME NO.2 CROSSMEMBER

main51325-65010×2iBXD20199601

51325ARETAINER, FRAME NO.2 CROSSMEMBER

main51325-65010×2iBXD20199601

51326RETAINER, FRAME NO.2 CROSSMEMBER, LH

main51326-65020×2iBXD20199601

51333RETAINER, FRAME NO.3 CROSSMEMBER, RH

main51333-65010×2iBXD20199601

51334RETAINER, FRAME NO.3 CROSSMEMBER, LH

main51333-65010×2iBXD20199601

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-65010iBXD20199601

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51422-65010iBXD20199601

51411BRACKET, RADIATOR SUPPORT, RH

main51411-65030iBXD20199601

51412BRACKET, RADIATOR SUPPORT, LH

main51412-65020iBXD20199601

51461BBRACKET, RADIATOR MOUNTING, LOWER RH

main51461-65010iBXD20199601

51462ABRACKET, RADIATOR MOUNTING, LOWER LH

main51462-65010iBXD20199601

51505CSUPPORT SUB-ASSY, ANCHOR ARM, RH

main51506-65010iBXD20199601

51506CSUPPORT SUB-ASSY, ANCHOR ARM, LH

main51506-65010iBXD20199601

51563BRACKET, ANCHOR ARM SUPPORT

main51563-65010×4iBXD20199601-199906

main51563-65020×4iBXD20199906

51566SUPPORT, ANCHOR ARM

main51566-65010×4iBXD20199601

51608SUPPORT SUB-ASSY, REAR STEERING LEVER SIDE RAIL

main51608-65010iBXD20199601

51685BRACKET, CABLE SUPPORT SIDE RAIL

main51685-65010iBXD20199601

51686BRACKET, CABLE CLAMP SIDE RAIL

main51686-65010×5iBXD20199601

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51702-65010iBXD20199601

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51702-65010iBXD20199601

51711CBRACKET, CAB MOUNTING, NO.1 RH

main51711-65030iBXD20199601

51712BBRACKET, CAB MOUNTING, NO.1 LH

main51712-65030iBXD20199601

51731BRACKET, CAB REAR MOUNTING, RH

main51731-65020iBXD20199601

51732BRACKET, CAB REAR MOUNTING, LH

main51732-65010iBXD20199601

53164FBRACKET, RADIATOR SUPPORT SIDE

main53164-65010iBXD20199601

53729EBRACKET, FENDER APRON, LH

main53729-65010iBXD20199601

53765CBRACKET, FUEL FILTER MOUNTING

main53765-65010iBXD20199601

55148BBRACKET, POWER STEERING TUBE

main55148-65010×24iBXD20199601

9010114049

main90101-14049

9010114051

main90101-14051

9010114053

main90101-14053

9010114054

main90101-14054

9010114056

main90101-14056

9010512259

main90105-12259

9010514102

main90105-14102

9010514145

main90105-14145

9010516046

main90105-16046

9010516047

main90105-16047

9011912267

main90119-12267

9017016003

main90170-16003

9017910174

main90179-10174

9017912079

main90179-12079

9017912087

main90179-12087

9017914039

main90179-14039

9020114020

main90201-14020

9038714035

main90387-14035

9038716012

main90387-16012

9044022038

main90440-22038

9044024007

main90440-24007

9044024009

main90440-24009

9044028002

main90440-28002

9111281028

main91112-81028

91512H1230

main91512-H1230

9165160820

main91651-60820

9415081240

main94150-81240

9462211000

main94622-11000

87 parts on this diagram · 1 diagram in section
