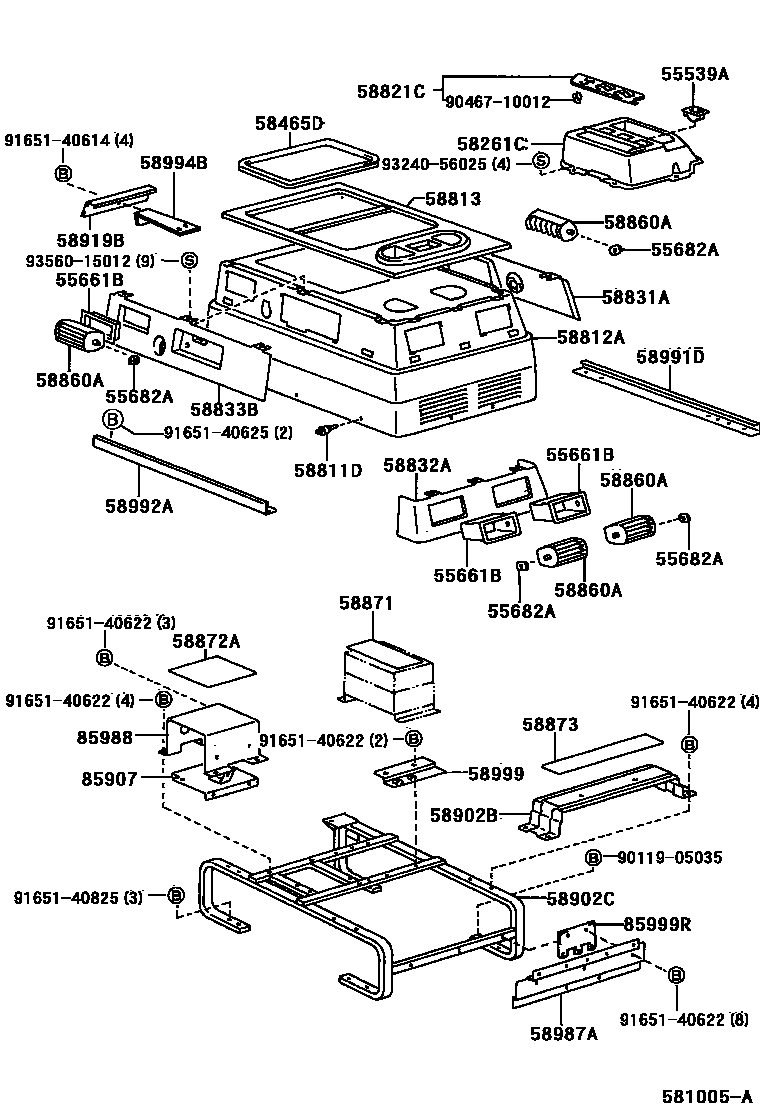

Toyota MEGA CRUISER — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
BLACK,TRIM1#
55661BBEZEL, CONSOLE BOX REGISTER
BLACK,TRIM1#
55682ASPRING, CONSOLE BOX REGISTER SUPPORT
58261CCOVER, TRANSMISSION
BLACK,TRIM1#
58465DPACKING, TRANSMISSION SERVICE HOLE COVER
58811DCLIP(FOR CONSOLE BOX)
LIGHT GRAY,TRIM1#
58812ABOX, CONSOLE, LOWER
LT.BLUISH GRAY,TRIM1#
58813BOX, CONSOLE, UPPER
LT.BLUISH GRAY,TRIM1#
58821CPANEL, CONSOLE, UPPER
LIGHT GRAY,TRIM1#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
BLACK,TRIM1#
58832AGARNISH, CONSOLE UPPER PANEL, REAR
BLACK,TRIM1#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK,TRIM1#
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM1#
58871CUSHION, CONSOLE BOX
58872ACUSHION, CONSOLE BOX, NO.2
58873CUSHION, CONSOLE BOX, NO.3
58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58919BPLATE, CONSOLE BOX
58987ARETAINER, CONSOLE BOX, NO.2
58991DBRACKET, CONSOLE BOX MOUNTING, UPR RH
58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH
58994BBRACKET, CONSOLE BOX MOUNTING, NO.4
58999BRACKET, STEREO SUPPORT, NO.2
85907BRACKET SUB-ASSY, RELAY, NO.2
85988BRACKET, RELAY, NO.4
85999RBRACKET, RELAY, NO.6
9011905035
main90119-05035
9046710012
main90467-10012
9165140614
main91651-40614
9165140622
main91651-40622
9165140625
main91651-40625
9165140825
main91651-40825
9324056025
main93240-56025
9356015012
main93560-15012
35 parts on this diagram · 1 diagram in section
