Toyota MEGA CRUISER — ARMREST & VISOR

6753FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-53

6756REAR DOOR LOCK & HANDLE

→ Go to FIG 67-56

74611BGRIP, ASSIST

main74610-20040-B0i199601-199906

GRAY,TRIM1#

74617CPLUG, ASSIST GRIP

main74617-16010-B2i199601-199906

GRAY,TRIM1#

9331116016

main93311-16016

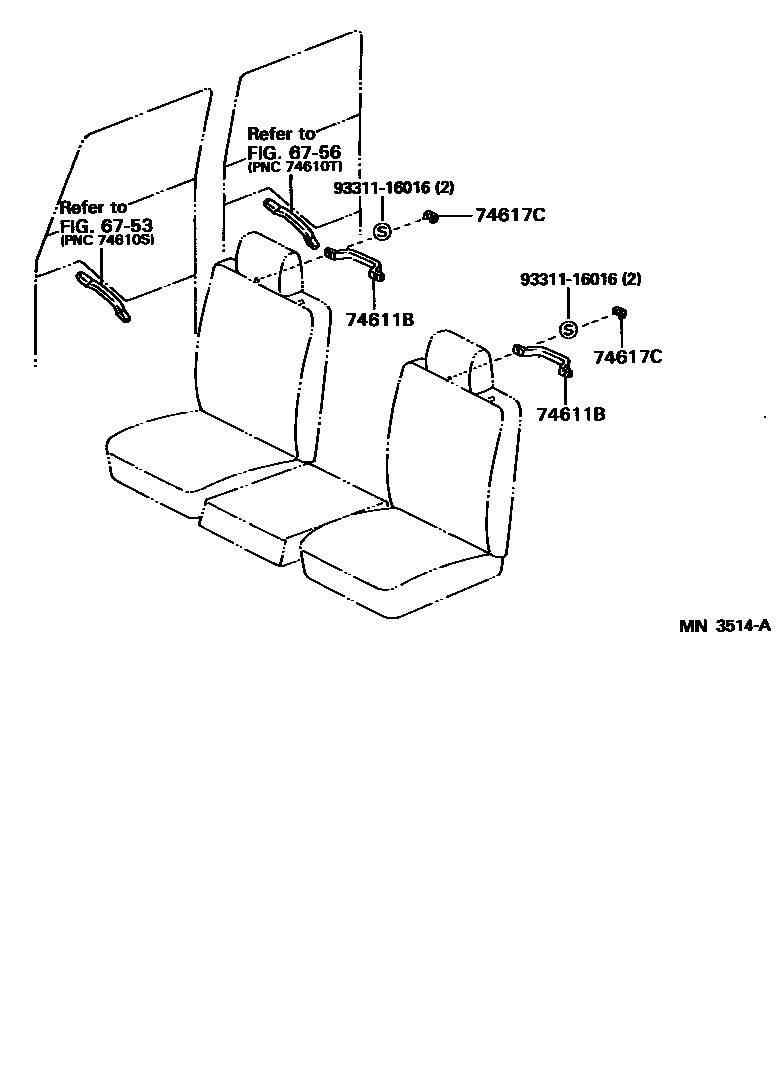

5 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota MEGA CRUISER

This section contains 13 genuine Toyota parts for the ARMREST & VISOR system of the Toyota MEGA CRUISER. Key components include: FRONT DOOR LOCK & HANDLE, REAR DOOR LOCK & HANDLE, VISOR ASSY, RH, VISOR ASSY, LH, GRIP SUB-ASSY, ASSIST, FRONT.
