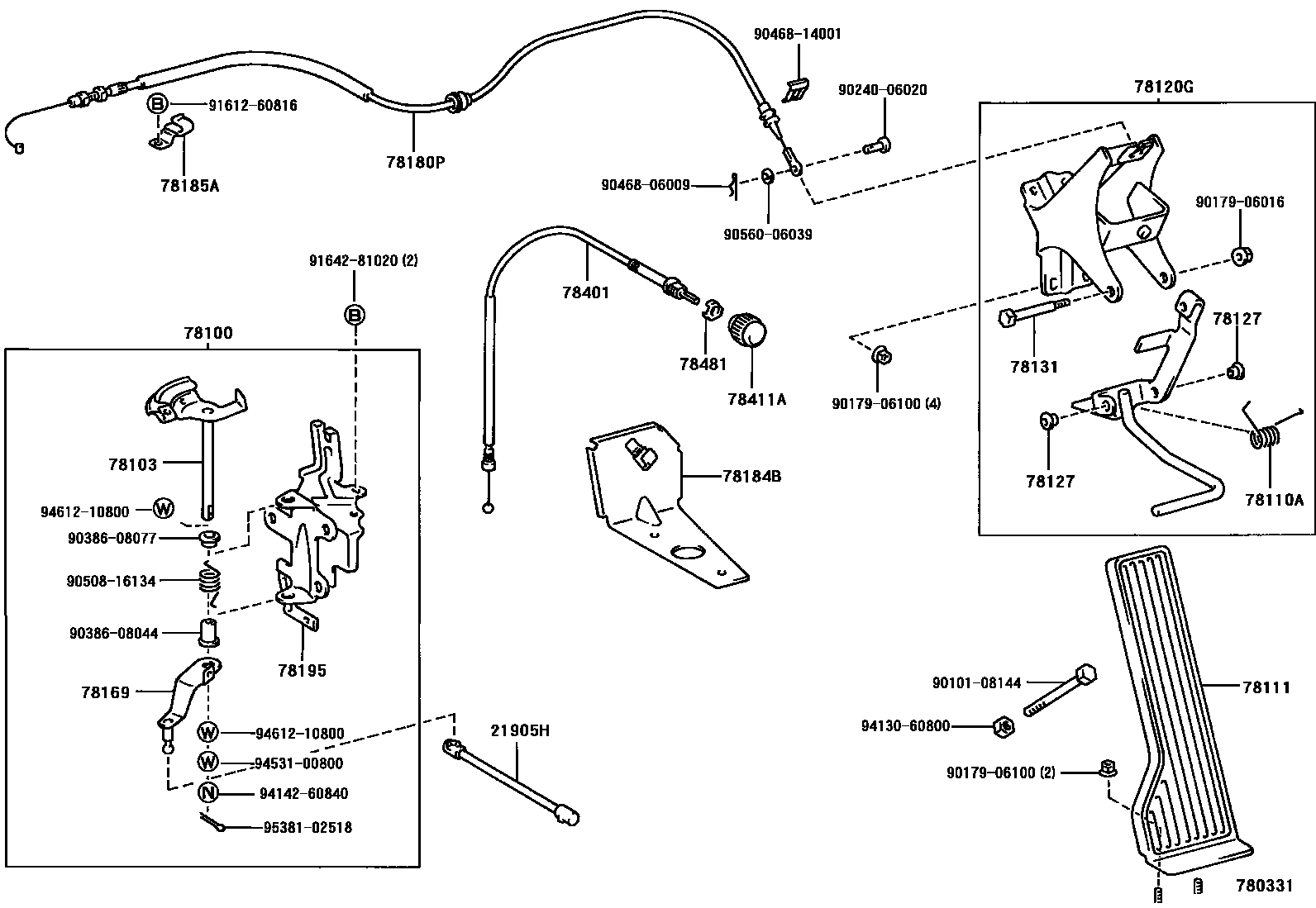

Toyota MEGA CRUISER — ACCELERATOR LINK

0001 1 0002 1

21905HROD SUB-ASSY, ACCELERATOR CONNECTING

main21905-58060i15BFT..BXD20199601-199705

main21905-58061i15BFT..BXD20199705-199906

78100LINK ASSY, ACCELERATOR

main78100-65011iBXD20199601-199906

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78103-60021iBXD20199601-199608

sub94142-60840

sub94531-00800

main78103-60022iBXD20199608-199906

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-65010iBXD20199601-199906

main78214-65020iBXD20199906

78111PEDAL, ACCELERATOR

main78101-65010iBXD20199601

78120GROD ASSY, ACCELERATOR PEDAL

main78120-65010iBXD20199601-199906

main78120-65050iBXD20199906

78127BUSH, ACCELERATOR PEDAL, NO.2

main78127-65010×2iBXD20199601-199906

78131ROD, ACCELERATOR CONNECTING

main78131-65020iBXD20199601-199906

78169HANGER, ACCELERATOR SPRING

main78169-60010iBXD20199601-199906

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-65020iBXD20199601-199906

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-65010iBXD20199601-199906

main78184-65020iBXD20199906

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-65020iBXD20199601-199906

78195BRACKET, ACCELERATOR LINK

main78195-60020iBXD20199601-199906

78401CABLE SUB-ASSY, THROTTLE CONTROL

main78401-65010iBXD20199601-199906

78411AKNOB, THROTTLE CONTROL CABLE

main78402-65010iBXD20199601-199906

78481CLAMP, THROTTLE WIRE

main78481-65010iBXD20199601-199906

9010108144

main90101-08144

9017906016

main90179-06016

9017906100

main90179-06100

9024006020

main90240-06020

9038608044

main90386-08044

9038608077

main90386-08077

9046806009

main90468-06009

9046814001

main90468-14001

9050816134

main90508-16134

9056006039

main90560-06039

9161260816

main91612-60816

9164281020

main91642-81020

9413060800

main94130-60800

9414260840

main94142-60840

9453100800

main94531-00800

9461210800

main94612-10800

9538102518

main95381-02518

33 parts on this diagram · 2 diagrams in section
