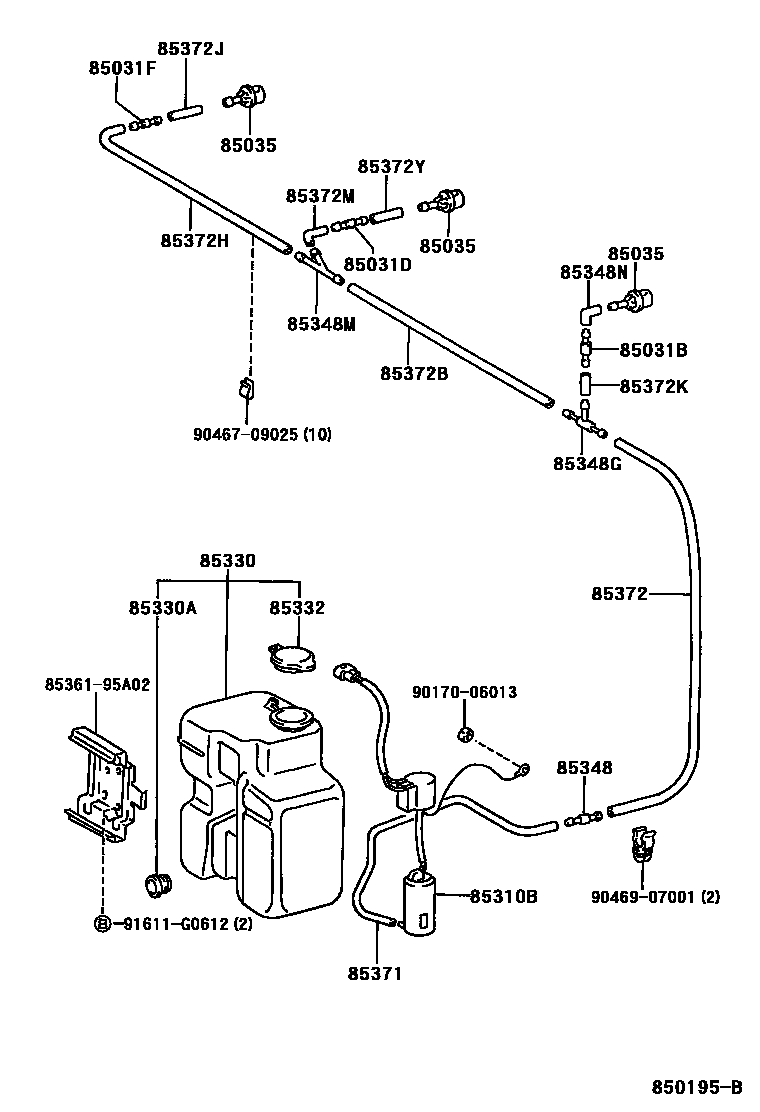

Toyota MEGA CRUISER — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-12250iBXD20199610

85031DVALVE SUB-ASSY, WASHER NO.2

main85031-12250iBXD20199610

85031FVALVE SUB-ASSY, WASHER NO.3

main85031-12250iBXD20199610

85035NOZZLE SUB-ASSY, WASHER

main85381-65010×3iBXD20199610

85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER

main85330-65010iBXD20199610

85330JAR ASSY, WINDSHIELD WASHER

main85315-65010iBXD20199610

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBXD20199610

85332CAP, WINDSHIELD WASHER JAR

main85316-65010iBXD20199610

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iBXD20199610

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-28110iBXD20199610

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iBXD20199610

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85355-14481iBXD20199610

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iBXD20199610

L=1000(*H,L=750)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iBXD20199610

L=1000(*H,L=530)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299iBXD20199610

L=1000(*H,L=590)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299iBXD20199610

L=1000(*H,L=540)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iBXD20199610

L=1450(*H,L=40)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90446-06013iBXD20199610

L=1000(*H,L=60)

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33299iBXD20199610

L=1000(*H,L=50)

85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8

main90099-33080iBXD20199610

8536195A02HOLDER, WINDSHIELD WASHER

main85361-95A02

9017006013

main90170-06013

9046709025

main90467-09025

9046907001

main90469-07001

91611G0612

main91611-G0612

25 parts on this diagram · 1 diagram in section
