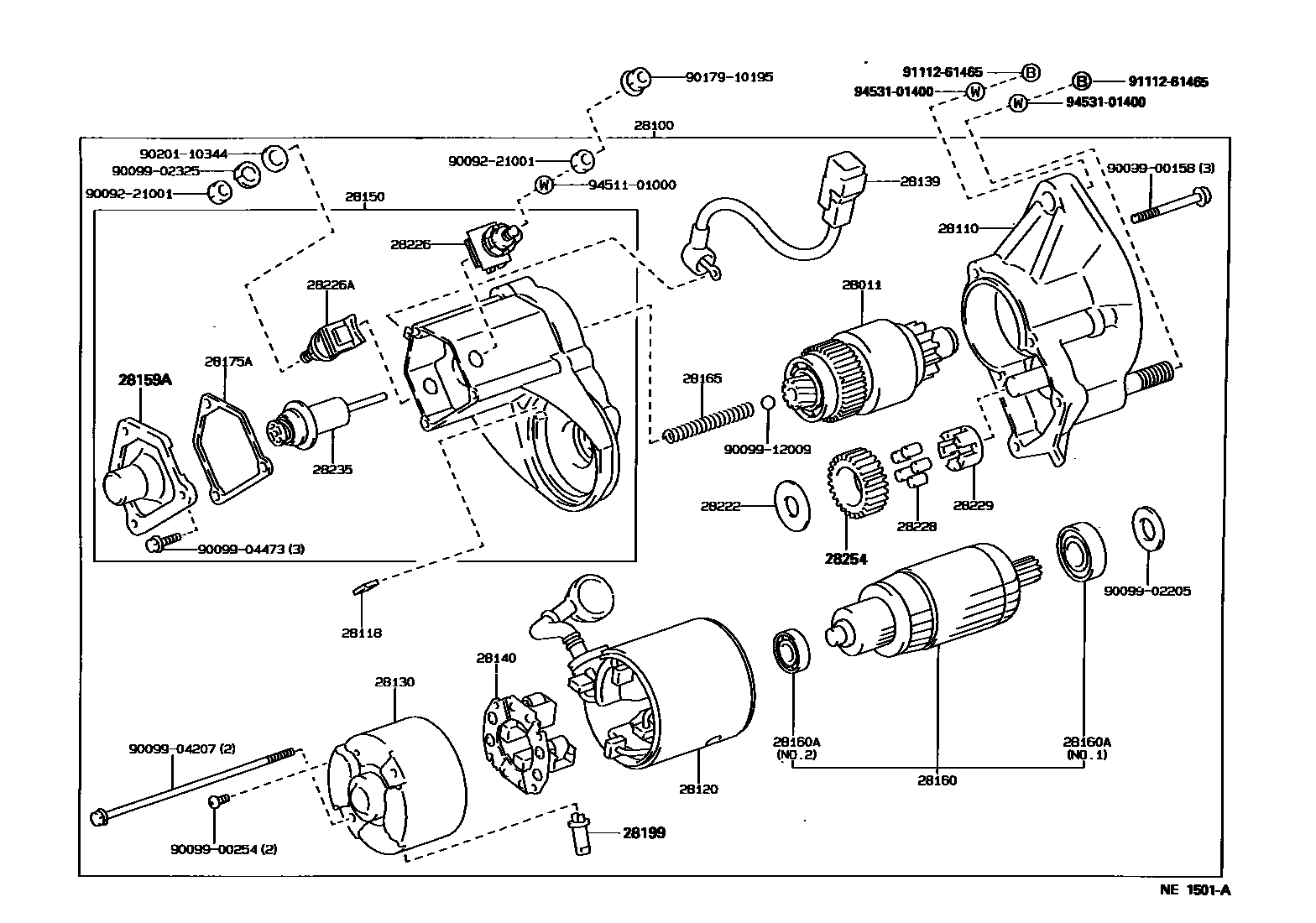

Toyota MEGA CRUISER — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28118PLATE(FOR STARTER YOKE)
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28159ACOVER, MAGNET SWITCH
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
NO.2
NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
28175AGASKET, MAGNET SWITCH COVER
28199COVER, STARTER
28222WASHER, STARTER IDLE GEAR CLUTCH
28226STARTER KIT, BATTERY TERMINAL
28226ASTARTER KIT, MOTOR TERMINAL
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28235PLUNGER, MAGNET SWITCH
28254PINION, STARTER IDLE GEAR
9009221001
main90092-21001
9009900158
main90099-00158
9009900254
main90099-00254
9009902205
main90099-02205
9009902325
main90099-02325
9009904207
main90099-04207
9009904473
main90099-04473
9009912009
main90099-12009
9017910195
main90179-10195
9020110344
main90201-10344
9111261465
main91112-61465
9451101000
main94511-01000
9453101400
main94531-01400
35 parts on this diagram · 1 diagram in section
