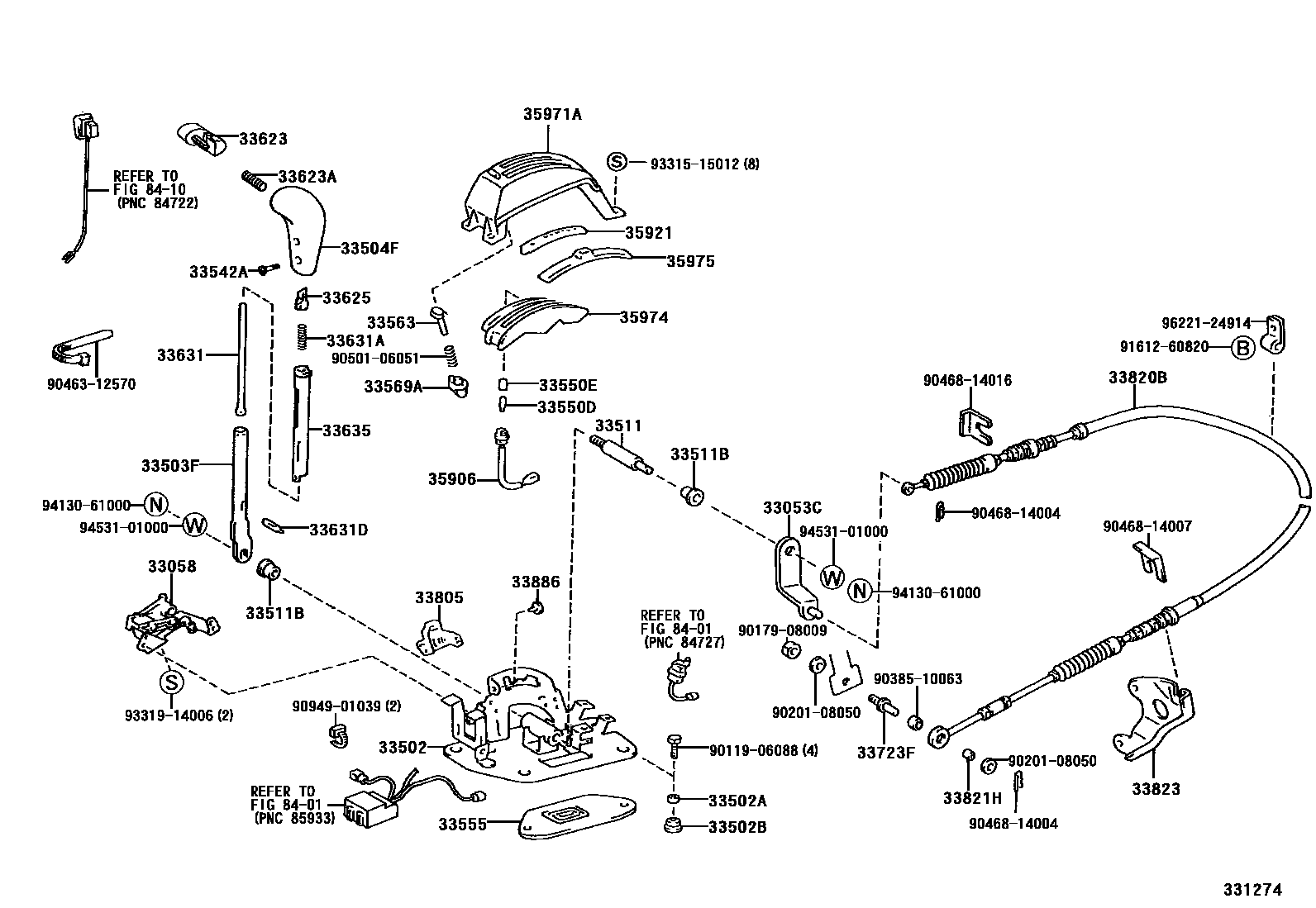

Toyota MEGA CRUISER — SHIFT LEVER & RETAINER
33053CLEVER SUB-ASSY, CONTROL SELECT(FOR FLOOR SHIFT)
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=8.8
33502BGROMMET (FOR SHIFT LEVER PLATE)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511BBUSH (FOR CONTROL SHAFT)
33542ASCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)
33550DBULB, POSITION INDICATOR LAMP
24V 1.8W
33550ECAP, POSITION INDICATOR LAMP
33555BOOT, SHIFT LEVER
33563BUTTON, SHIFT LOCK RELEASE
BLACK,TRIM1#
33569AGUIDE, SHIFT LOCK RELEASE BUTTON
33623BUTTON, SHIFT LEVER KNOB
BLACK,TRIM1#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33635GUIDE, WIRE (FOR SHIFT LEVER)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33805PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT)
33820BCABLE ASSY, TRANSMISSION CONTROL
33821HCOLLAR (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33886STOPPER, SHIFT LEVER
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9011906088
main90119-06088
9017908009
main90179-08009
9020108050
main90201-08050
9038510063
main90385-10063
9046312570
main90463-12570
9046814004
main90468-14004
9046814007
main90468-14007
9046814016
main90468-14016
9050106051
main90501-06051
9094901039
main90949-01039
9161260820
main91612-60820
9331515012
main93315-15012
9331914006
main93319-14006
9413061000
main94130-61000
9453101000
main94531-01000
9622124914
main96221-24914
51 parts on this diagram · 1 diagram in section
SHIFT LEVER & RETAINER for Toyota MEGA CRUISER
This section contains 51 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota MEGA CRUISER. Key components include: LEVER SUB-ASSY, CONTROL SELECT(FOR FLOOR SHIFT), BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, PLATE SUB-ASSY, SHIFT LEVER, COLLAR (FOR FLOOR SHIFT SETTING), GROMMET (FOR SHIFT LEVER PLATE).
