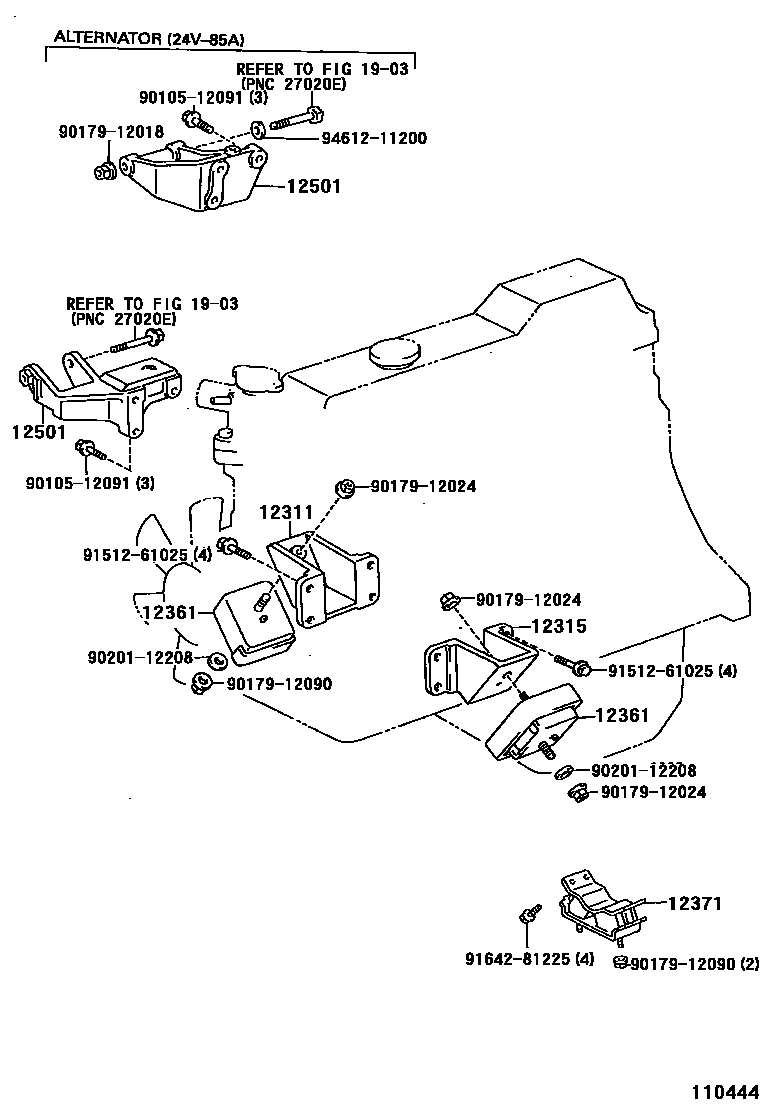

Toyota MEGA CRUISER — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12501BRACKET SUB-ASSY, ALTERNATOR
ALTERNATOR(24V-85A)
1903ALTERNATOR
9010512091
main90105-12091
9017912018
main90179-12018
9017912024
main90179-12024
9017912090
main90179-12090
9020112208
main90201-12208
9151261025
main91512-61025
9164281225
main91642-81225
9461211200
main94612-11200
14 parts on this diagram · 1 diagram in section
MOUNTING for Toyota MEGA CRUISER
This section contains 14 genuine Toyota parts for the MOUNTING system of the Toyota MEGA CRUISER. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, BRACKET SUB-ASSY, ALTERNATOR.
