Toyota MEGA CRUISER — METER

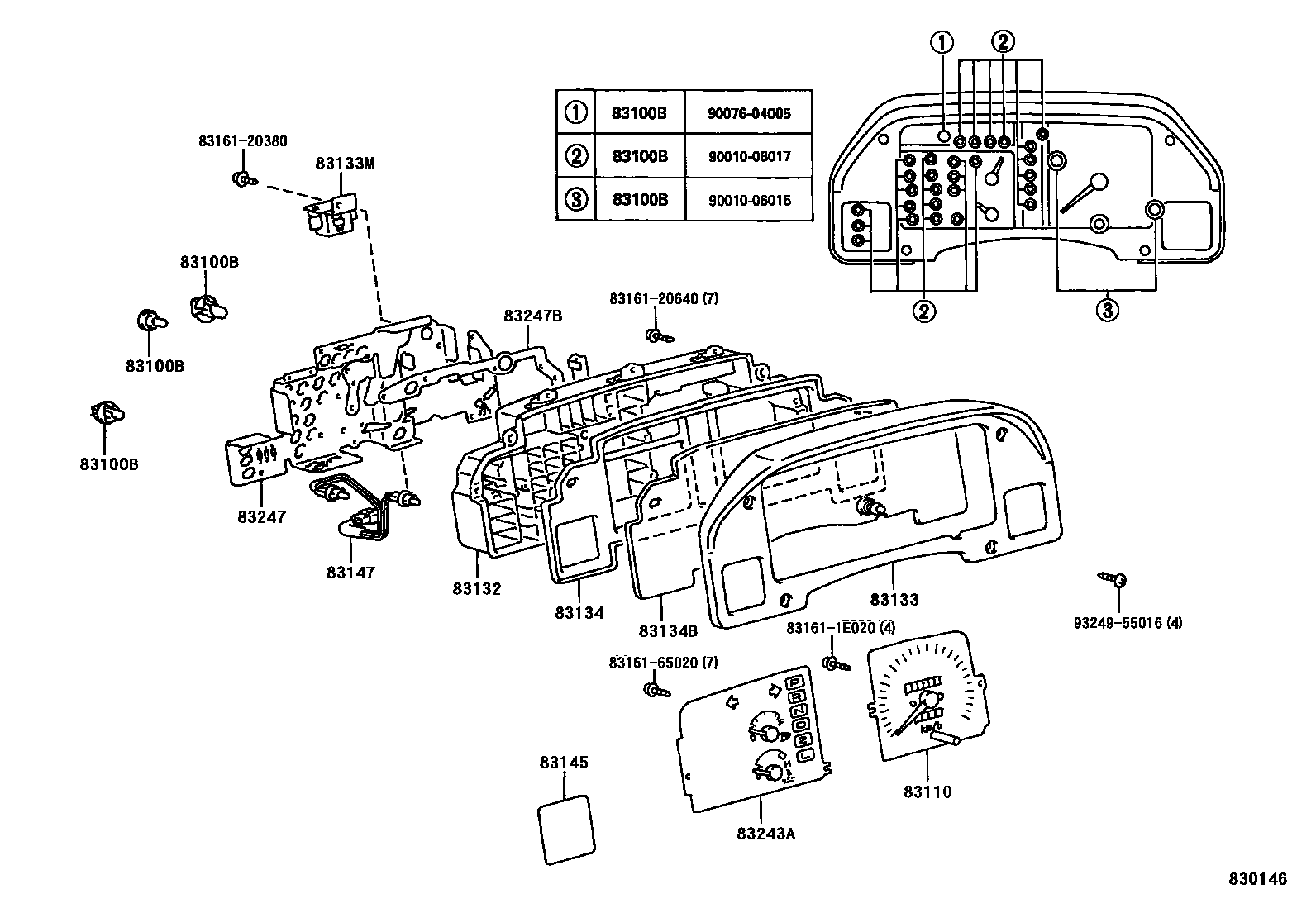

0001 1COMBINATION METER 0002 1CLOCK, SENSOR

83100BBULB, COMBINATION METER, NO.1

main90010-06016×2iBXD20199610

24V 3W

main90010-06017×29iBXD20199610

24V 1.8KW

main90076-04005iBXD20199610

24V 1.4W

83110SPEEDOMETER ASSY

main83110-65040iBXD20199610-199612

sub83110-65041

main83220-65010iBXD20199612

83132CASE, COMBINATION METER

main83132-65020iBXD20199610

83133PLATE, COMBINATION METER, NO.1

main83821-65010iBXD20199610

83133MCONVERTOR VOLT

main83133-65020iBXD20199610

83134COVER, COMBINATION METER, NO.1

main83141-65020iBXD20199610

83134BCOVER, COMBINATION METER, NO.2

main83138-65020iBXD20199610

83145LENS, METER, NO.1

main83145-65020iBXD20199610

83147LAMP, METER NO.1

main83147-65040iBXD20199610

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-65010iBXD20199610

83247PLATE, METER CIRCUIT

main83861-65010iBXD20199610

83247BPLATE, METER CIRCUIT, NO.2

main83862-65010iBXD20199610

831611E020CASE, COMBINATION METER MIRROR, NO.1

main83161-1E020

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120640CASE, COMBINATION METER MIRROR, NO.1

main83161-20640

8316165020CASE, COMBINATION METER MIRROR, NO.1

main83161-65020

9324955016

main93249-55016

17 parts on this diagram · 2 diagrams in section
