Toyota MEGA CRUISER — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-65050i199610

81110BBULB(FOR HEADLAMP, NO.1)

main90981-17011×2i199612

24V 75/70W,*HAL *WH

main90981-17020×2i199610-199612

24V 75/70W

81110SSEALED BEAM UNIT, NO.1

main90981-09002×2i199610-199612

main90981-09004×2i199612

81111RING, SEALED BEAM RETAINING

main81111-65040×2i199610

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-16220i199610

81121SPRING, HEADLAMP TENSION

main81121-14670×2i199610

81126PLATE, HEADLAMP

main81124-89101×8i199610

81150HEADLAMP ASSY, LH

main81150-65020i199610

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-16220i199610

81195SCREW, HEADLAMP

main81195-89101×4i199610

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

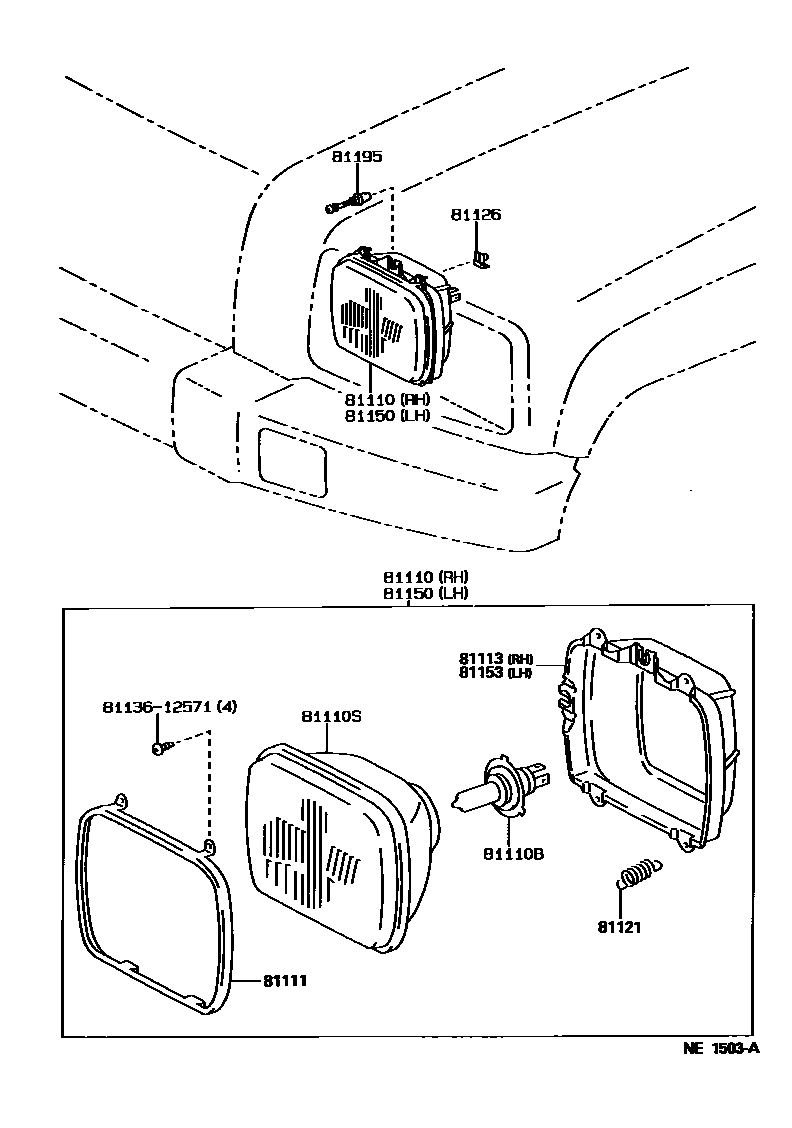

11 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota MEGA CRUISER

This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota MEGA CRUISER. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, RING, SEALED BEAM MOUNTING, NO.1 RH.
