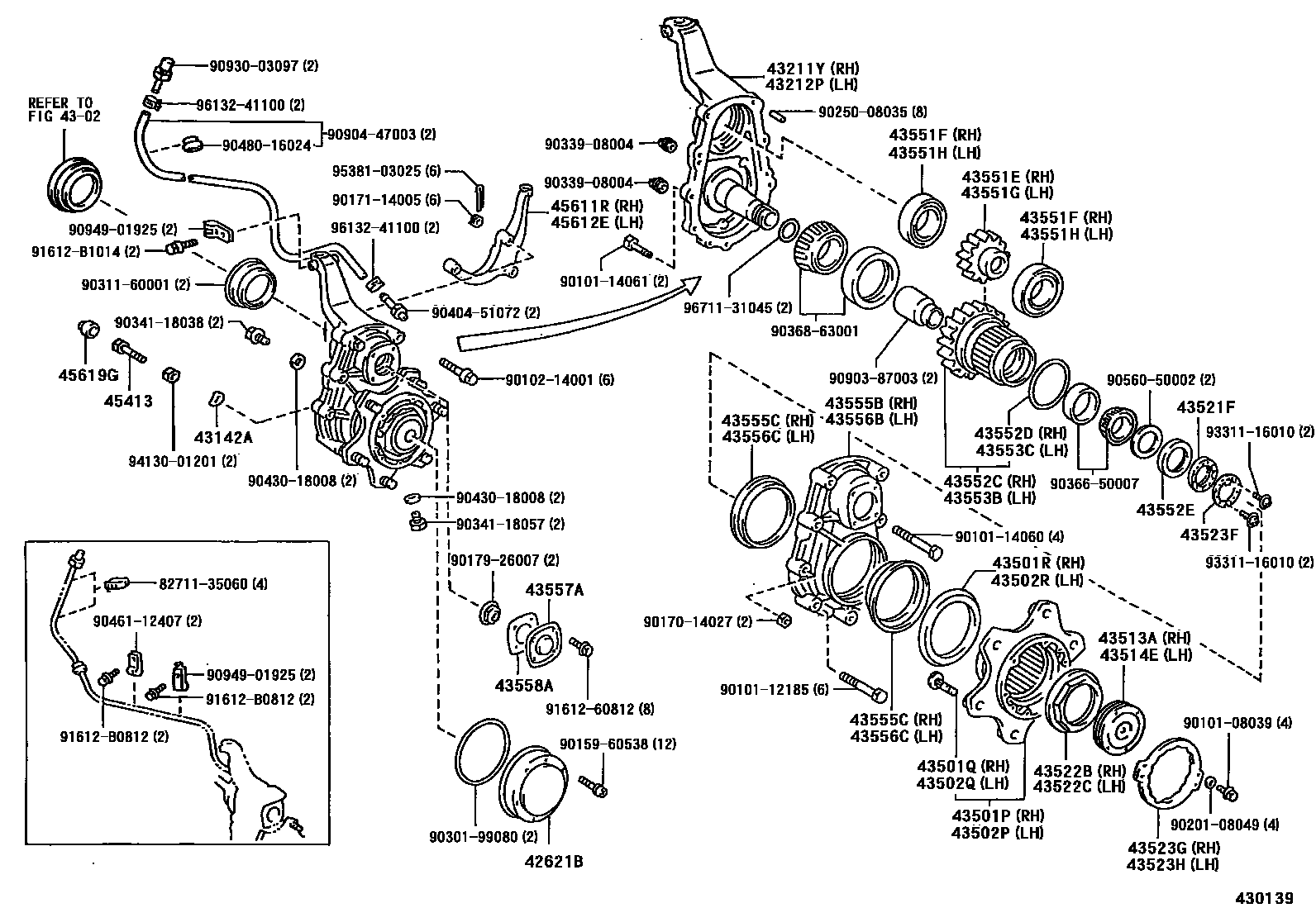

Toyota MEGA CRUISER — FRONT HUB REDUCTION
42621BCAP, WHEEL(FOR FRONT AXLE)
4302FRONT DRIVE SHAFT
43142ASEAT, STEERING KNUCKLE STOPPER
43501PHUB SUB-ASSY, FRONT AXLE, RH
43501QBOLT, HUB(FOR FRONT AXLE HUB RH)
43501RSEAL, DUST(FOR FRONT AXLE HUB RH)
43502PHUB SUB-ASSY, FRONT AXLE, LH
43502QBOLT, HUB(FOR FRONT AXLE HUB LH)
43502RSEAL, DUST(FOR FRONT AXLE HUB LH)
43513ACAP, WHEEL BEARING, RH(FOR FRONT AXLE RH)
43514ECAP, WHEEL BEARING, LH(FOR FRONT AXLE LH)
43521FNUT, FRONT AXLE BEARING LOCK
43522BNUT, HUB SET(FOR FRONT AXLE RH)
43522CNUT, HUB SET(FOR FRONT AXLE LH)
43523FWASHER, HUB SET CLAW(FOR FRONT AXLE)
43523GWASHER, HUB SET CLAW(FOR FRONT AXLE RH)
43523HWASHER, HUB SET CLAW(FOR FRONT AXLE LH)
43551EGEAR, FRONT HUB REDUCTION DRIVE, RH
43551FBEARING, ROLLER(FOR FRONT HUB REDUCTION RH)
43551GGEAR, FRONT HUB REDUCTION DRIVE, LH
43551HBEARING, ROLLER(FOR FRONT HUB REDUCTION LH)
43552CGEAR, FRONT HUB REDUCTION DRIVEN, RH
43552DRING, O(FOR FRONT HUB REDUCTION DRIVEN GEAR RH)
43552ESEAL, OIL(FOR FRONT HUB REDUCTION DRIVEN GEAR)
43553BGEAR, FRONT HUB REDUCTION DRIVEN, LH
43553CRING, O(FOR FRONT HUB REDUCTION DRIVEN GEAR LH)
43555BCOVER, FRONT HUB REDUCTION GEAR, RH
43555CSEAL, OIL(FOR FRONT HUB REDUCTION GEAR COVER RH)
INNER
OUTER
43556BCOVER, FRONT HUB REDUCTION GEAR, LH
43556CSEAL, OIL(FOR FRONT HUB REDUCTION GEAR COVER LH)
INNER
OUTER
43557ACOVER, FRONT HUB REDUCTION DRIVE SHAFT
RH
LH
43558AGASKET, FRONT HUB REDUCTION DRIVE SHAFT END
45413STOPPER, PITMAN ARM
45611RARM, FRONT STEERING KNUCKLE, RH
45612EARM, STEERING KNUCKLE, FRONT LH
45619GCOVER, KNUCKLE STOPPER, FRONT RH
8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35060
9010108039
main90101-08039
9010112185
main90101-12185
9010114060
main90101-14060
9010114061
main90101-14061
9010214001
main90102-14001
9015960538
main90159-60538
9017014027
main90170-14027
9017114005
main90171-14005
9017926007
main90179-26007
9020108049
main90201-08049
9025008035
main90250-08035
9030199080
main90301-99080
9031160001
main90311-60001
9033908004
main90339-08004
9034118038
main90341-18038
9034118057
main90341-18057
9036650007
main90366-50007
9036863001
main90368-63001
9040451072
main90404-51072
9043018008
main90430-18008
9046112407
main90461-12407
9048016024
main90480-16024
9056050002
main90560-50002
9090387003
main90903-87003
9090447003
main90904-47003
9093003097
main90930-03097
9094901925
main90949-01925
9161260812
main91612-60812
91612B0812
main91612-B0812
91612B1014
main91612-B1014
9331116010
main93311-16010
9413001201
main94130-01201
9538103025
main95381-03025
9613241100
main96132-41100
9671131045
main96711-31045
74 parts on this diagram · 3 diagrams in section
FRONT HUB REDUCTION for Toyota MEGA CRUISER
This section contains 82 genuine Toyota parts for the FRONT HUB REDUCTION system of the Toyota MEGA CRUISER. Key components include: COLLAR, FRONT AXLE HOUSING SIDE, CAP, WHEEL(FOR FRONT AXLE), FRONT DRIVE SHAFT, SEAT, STEERING KNUCKLE STOPPER, KNUCKLE, FRONT STEERING, RH.
