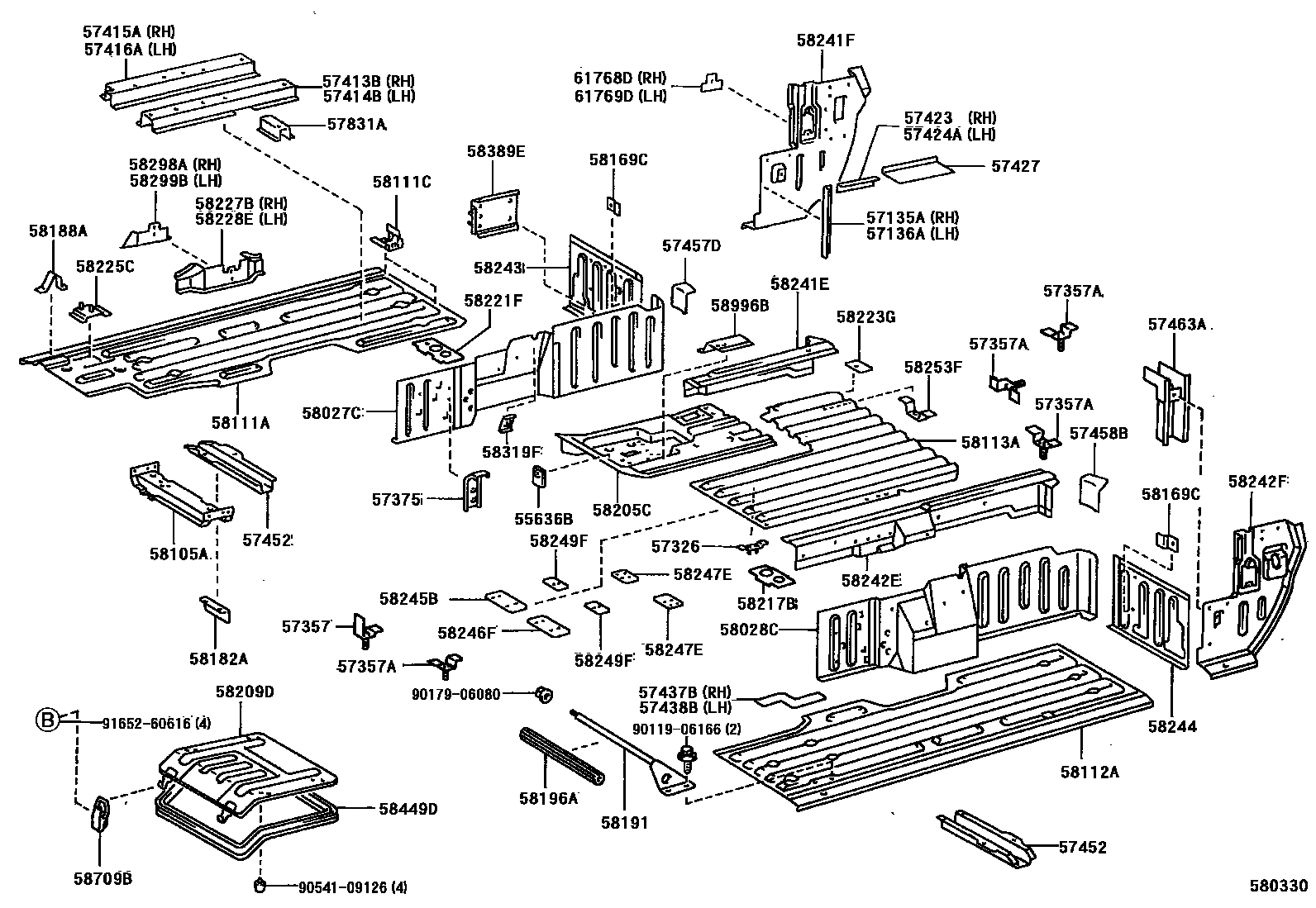

Toyota MEGA CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
55636BBRACKET, INSTRUMENT PANEL UNDER COVER, NO.1
57135ABRACKET, FRONT FLOOR SIDE, RH
57136ABRACKET, FRONT FLOOR SIDE, LH
57326BRACKET, WATER VALVE
57357BRACKET, COOLER PIPE CLAMP, NO.1
57357ABRACKET, COOLER PIPE CLAMP, NO.2
57375REINFORCEMENT, FRONT STEP PANEL, NO.1 RH
57415ARAIL SUB-ASSY, FLOOR SIDE, REAR RH
57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424ABRACKET, FRONT FLOOR REINFORCEMENT, RH
57427REINFORCEMENT, FRONT FLOOR TO BRACE
57437BPLATE, REAR STEP SIDE, RH
57438BPLATE, REAR STEP SIDE, LH
57452MEMBER, FRONT FLOOR CROSS, LH
57457DPATCH, FLOOR SIDE MEMBER, REAR RH
57458BPATCH, FLOOR SIDE MEMBER, REAR LH
57463AREINFORCEMENT, CENTER FLOOR CROSSMEMBER
W(3 POINT REAR SEAT BELT)
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
58027CPANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58028CPANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58105ABRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE, RH
58111APAN, FRONT FLOOR, RH
58111CPAN, FRONT FLOOR
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58169CPATCH, FRONT FLOOR REAR
58182ARETAINER, SEAT RAIL, NO.2
58188ABRACKET, ACCELERATOR PEDAL STOPPER
58191FOOTREST, FRONT FLOOR
58196ATRIM, FOOTREST
58205CPANEL SUB-ASSY, SHIFT LEVER HOUSING
58209DCOVER SUB-ASSY, BATTERY BOX
58217BPLATE, FRONT FLOOR
58221FREINFORCEMENT, FLOOR PANEL, FRONT RH
58223GREINFORCEMENT, SEAT SET, NO.1
58225CHOLDER, REAR SEAT CUSHION
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58228EPLATE, FRONT FLOOR PANEL SIDE, LH
58241EPANEL, FLOOR SIDE, FRONT RH
58241FPANEL, FLOOR SIDE, RH
58242EPANEL, FLOOR SIDE, FRONT LH
58242FPANEL, FLOOR SIDE, LH
58243PANEL, REAR FLOOR SIDE, RH
58244PANEL, REAR FLOOR SIDE, LH
58245BBRACKET, TRANSCEIVER, NO.1 RH
58246FBRACKET, TRANSCEIVER, NO.1 LH
58247EBRACKET, TRANSCEIVER, NO.2
58249FBRACKET, TRANSCEIVER, NO.3
58253FBRACKET, PARKING BRAKE CABLE
58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH
58319FBRACKET, REAR FLOOR SIDE PANEL
58389EBRACKET, HEATER HOSE CLAMP, NO.2
58449DPACKING, BATTERY SERVICE HOLE COVER
58709BCATCH SUB-ASSY, ENGINE SERVICE COVER
58996BBRACKET, CONSOLE BOX MOUNTING, NO.2
61768DREINFORCEMENT, SEAT BELT ANCHOR
61769DREINFORCEMENT, SEAT BELT ANCHOR
9011906166
main90119-06166
9017906080
main90179-06080
9054109126
main90541-09126
9165260616
main91652-60616
65 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota MEGA CRUISER
This section contains 75 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota MEGA CRUISER. Key components include: BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1, BRACKET, FRONT FLOOR SIDE, RH, BRACKET, FRONT FLOOR SIDE, LH, BRACKET, WATER VALVE, BRACKET, COOLER PIPE CLAMP, NO.1.
