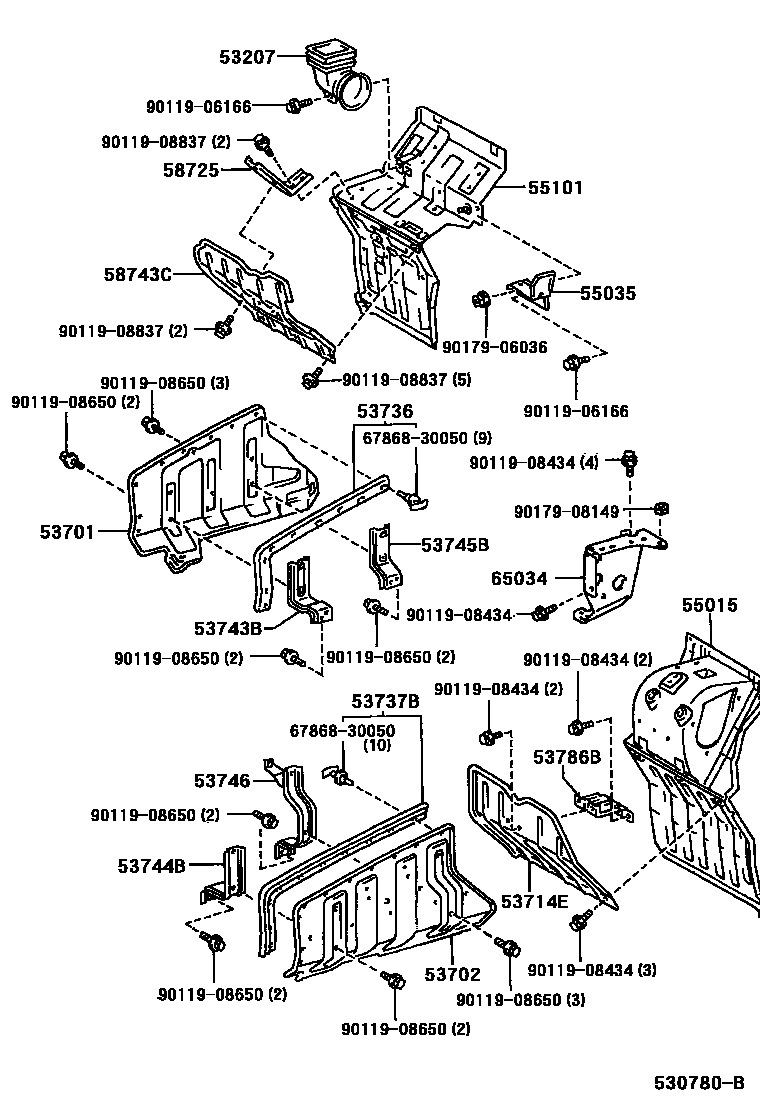

Toyota MEGA CRUISER — FRONT FENDER APRON & DASH PANEL

53207PIPE SUB-ASSY, AIR INLET

main53207-65030iBXD20199610

53701APRON SUB-ASSY, FRONT FENDER, RH

main53715-65020iBXD20199610

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-65040iBXD20199610-199906

main53702-65050iBXD20200106

main53702-65060iBXD20199906-200106

53714EAPRON, FRONT FENDER, REAR LH

main53714-65010iBXD20199610-199906

main53714-65020iBXD20199906

53736SEAL, FRONT FENDER APRON, RH

main53736-65010iBXD20199610

53737BSEAL, FRONT FENDER APRON, LH

main53737-65010iBXD20199610

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-65010iBXD20199610

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53086-65010iBXD20199610

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-65010iBXD20199610

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53088-65010iBXD20199610-199906

main53088-65020iBXD20199906-200106

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-65010iBXD20199610

55015PANEL SUB-ASSY, DASH, LH

main55015-65050iBXD20199610

55035BRACKET SUB-ASSY, OIL RESERVOIR TANK

main55035-65010iBXD20199610

55101PANEL SUB-ASSY, DASH

main55101-65140iBXD20199610

58725STAY, ENGINE SERVICE COVER

main58725-65010iBXD20199610

58743CPROTECTOR, FRONT FENDER PANEL

main58743-65010iBXD20199610-199906

sub58743-65030

main58743-65020iBXD20199906

65034BRACE SUB-ASSY, FLOOR FRONT CORNER, LH

main65034-65010iBXD20199906

6786830050CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30050

9011906166

main90119-06166

9011908434

main90119-08434

9011908650

main90119-08650

9011908837

main90119-08837

9017906036

main90179-06036

9017908149

main90179-08149

24 parts on this diagram · 1 diagram in section
