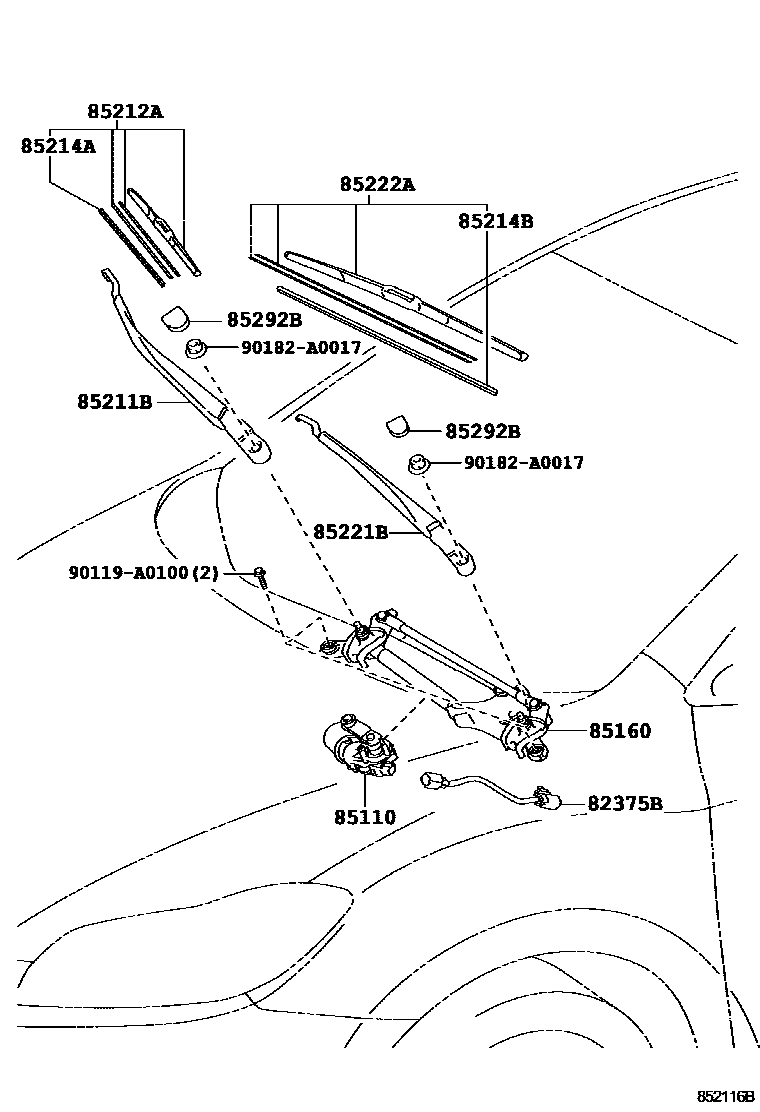

Toyota MATRIX — WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-02030iAZE14#,ZRE142200812-201012

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02250iAZE14#,ZRE142200801-201012

85160LINK ASSY, WINDSHIELD WIPER

main85150-02230iAZE14#,ZRE142200801-201012

85211BARM, FRONT WIPER, RH

main85211-02240iAZE14#,ZRE142200801-201012

85212ABLADE, FR WIPER, RH

main85212-0R020iAZE14#,ZRE142201008-201012

main85212-42120iAZE14#,ZRE142200801-201108

85214ARUBBER, WIPER, RH

main85214-42050iAZE14#,ZRE142200801-201012

85214BRUBBER, WIPER, LH

main85214-68020iAZE14#,ZRE142200801-201012

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-02250iAZE14#,ZRE142200801-201012

85222ABLADE, FR WIPER, LH

main85222-02230iAZE14#,ZRE142200801-201012

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010iAZE14#,ZRE142200801-201012

90119A0100

main90119-A0100

90182A0017

main90182-A0017

12 parts on this diagram · 1 diagram in section
