Toyota MATRIX — V-BELT

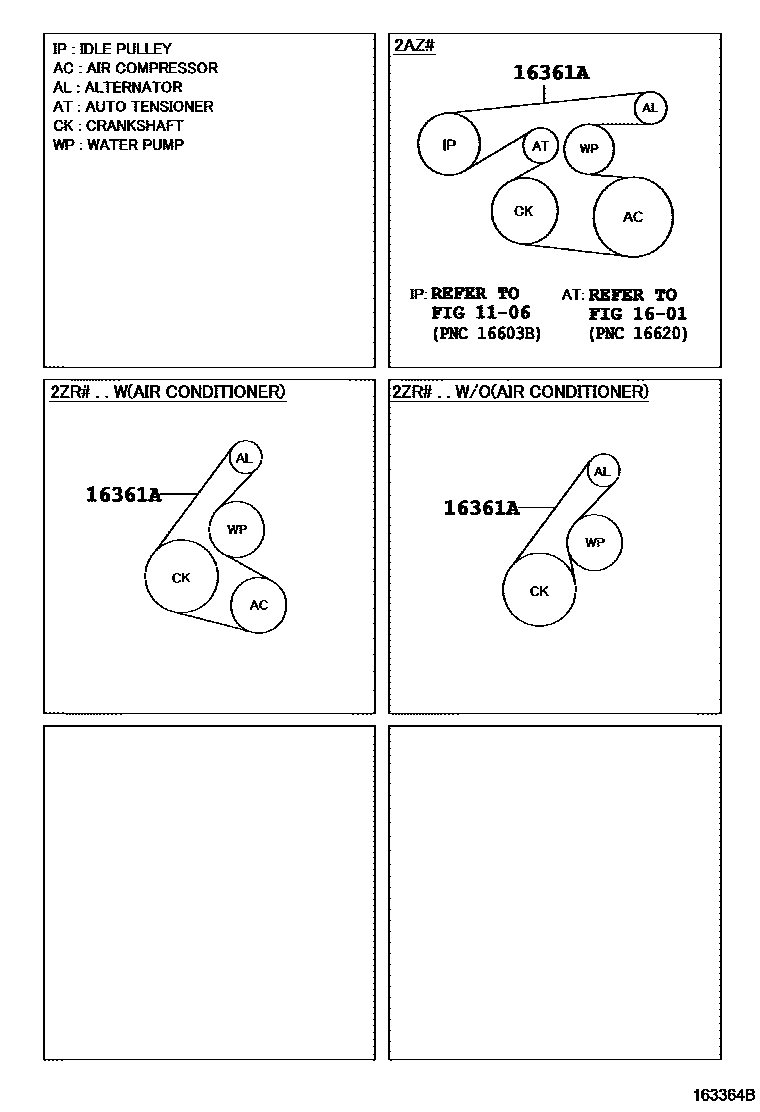

Parts diagram

1106

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02604i200801-201012

(J)

main90916-02653i200801-201308

(J)

main90916-02679i201012

(J)

main90916-A2011i200801-201308

(L)

main90916-A2016i201012

(L)

main90916-A2018i200801-201012

(L)

3 parts on this diagram · 1 diagram in section
