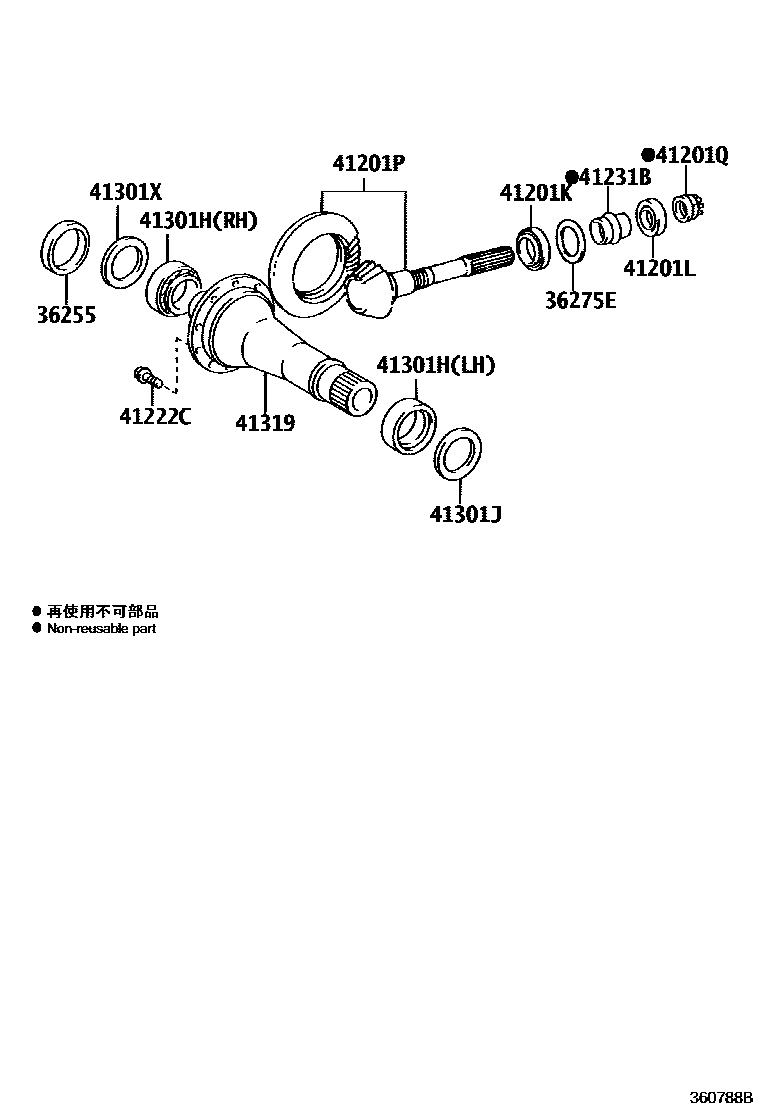

Toyota MATRIX — TRANSFER GEAR
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36275EWASHER, TRANSFER OUTPUT SHAFT
T=2.10,MARK AA
T=2.12,MARK AC
T=2.14,MARK BB
T=2.16,MARK CA
T=2.18,MARK CC
T=2.20,MARK DB
T=2.22,MARK EA
T=2.24,MARK EC
T=2.26,MARK FB
T=2.28,MARK GA
T=2.30,MARK GC
T=2.32,MARK HB
T=2.34,MARK JA
T=2.36,MARK JC
T=2.38,MARK KB
T=2.40,MARK LA
T=2.42,MARK LC
T=2.44,MARK MB
T=2.46,MARK NA
T=2.48,MARK NC
T=2.50,MARK PB
T=2.52,MARK QA
T=2.54,MARK QC
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
RH
LH
RH
LH
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
T=2.05,MARK 00
T=2.08,MARK 01
T=2.11,MARK 02
T=2.14,MARK 03
T=2.17,MARK 04
T=2.20,MARK 05
T=2.23,MARK 06
T=2.26,MARK 07
T=2.29,MARK 08
T=2.32,MARK 09
T=2.35,MARK 10
T=2.38,MARK 11
T=2.41,MARK 12
T=2.44,MARK 13
T=2.47,MARK 14
T=2.50,MARK 15
T=2.53,MARK 16
T=2.56,MARK 17
T=2.59,MARK 18
T=2.62,MARK 19
T=2.65,MARK 20
T=2.68,MARK 21
T=2.71,MARK 22
T=2.74,MARK 23
T=2.77,MARK 24
T=2.80,MARK 25
T=2.83,MARK 26
T=2.86,MARK 27
T=2.89,MARK 28
T=2.92,MARK 29
T=2.95,MARK 30
T=2.98,MARK 31
T=3.01,MARK 32
T=3.04,MARK 33
T=3.07,MARK 34
T=2.05,MARK 0F
T=2.07,MARK 0G
T=2.09,MARK 0H
T=2.11,MARK 0J
T=2.13,MARK 0K
T=2.15,MARK 0L
T=2.17,MARK 0M
T=2.19,MARK 0N
T=2.21,MARK 0P
T=2.23,MARK 0Q
T=2.25,MARK 0R
T=2.27,MARK 0S
T=2.29,MARK 0T
T=2.31,MARK 0U
T=2.33,MARK 0V
T=2.35,MARK 0W
T=2.37,MARK 0X
T=2.39,MARK 0Y
T=2.41,MARK 0Z
T=2.43,MARK 1F
T=2.45,MARK 1G
T=2.47,MARK 1H
T=2.49,MARK 1J
T=2.51,MARK 1K
T=2.53,MARK 1L
T=2.55,MARK 1M
T=2.57,MARK 1N
T=2.59,MARK 1P
T=2.61,MARK 1Q
T=2.63,MARK 1R
T=2.65,MARK 1S
T=2.67,MARK 1T
T=2.69,MARK 1U
T=2.71,MARK 1V
T=2.73,MARK 1W
T=2.75,MARK 1X
T=2.77,MARK 1Y
T=2.79,MARK 1Z
T=2.81,MARK 2F
T=2.83,MARK 2G
T=2.85,MARK 2H
T=2.87,MARK 2J
T=2.89,MARK 2K
T=2.91,MARK 2L
T=2.93,MARK 2M
T=2.95,MARK 2N
T=2.97,MARK 2P
T=2.99,MARK 2Q
T=3.01,MARK 2R
T=3.03,MARK 2S
T=3.05,MARK 2T
T=3.07,MARK 2U
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
T=2.47,MARK A0
T=2.50,MARK A1
T=2.53,MARK A2
T=2.56,MARK A3
T=2.59,MARK A4
T=2.62,MARK A5
T=2.65,MARK A6
T=2.68,MARK A7
T=2.71,MARK A8
T=2.74,MARK A9
T=2.77,MARK B0
T=2.80,MARK B1
T=2.83,MARK B2
T=2.86,MARK B3
T=2.89,MARK B4
T=2,92,MARK B5
T=2.95,MARK B6
T=2.98,MARK B7
T=3.01,MARK B8
T=3.04,MARK B9
T=3.07,MARK C0
T=3.10,MARK C1
T=3.13,MARK C2
T=3.16,MARK C3
T=3.19,MARK C4
T=3.22,MARK C5
T=3.25,MARK C6
T=3.28,MARK C7
T=3.31,MARK C8
T=3.34,MARK C9
T=3.37,MARK D0
T=3.40,MARK D1
T=3.43,MARK D2
T=3.46,MARK D3
T=3.49,MARK D4
T=3.52,MARK D5
T=3.55,MARK D6
T=3.58,MARK D7
T=3.61,MARK D8
T=3.64,MARK D9
T=3.67,MARK E0
T=3.70,MARK E1
T=3.73,MARK E2
T=3.76,MARK E3
T=3.79,MARK E4
T=3.82,MARK E5
T=2.47,MARK G7
T=2.49,MARK G8
T=2.51,MARK G9
T=2.53,MARK H0
T=2.55,MARK H1
T=2.57,MARK H2
T=2.59,MARK H3
T=2.61,MARK H4
T=2.63,MARK H5
T=2.65,MARK H6
T=2.67,MARK H7
T=2.69,MARK H8
T=2.71,MARK H9
T=2.73,MARK J0
T=2.75,MARK J1
T=2.77,MARK J2
T=2.79,MARK J3
T=2.81,MARK J4
T=2.83,MARK J5
T=2.85,MARK J6
T=2.87,MARK J7
T=2.89,MARK J8
T=2.91,MARK J9
T=2.93,MARK K0
T=2.95,MARK K1
T=2.97,MARK K2
T=2.99,MARK K3
T=3.01,MARK K4
T=3.03,MARK K5
T=3.05,MARK K6
T=3.07,MARK K7
T=3.09,MARK K8
T=3.11,MARK K9
T=3.13,MARK L0
T=3.15,MARK L1
T=3.17,MARK L2
T=3.19,MARK L3
T=3.21,MARK L4
T=3.23,MARK L5
T=3.25,MARK L6
T=3.27,MARK L7
T=3.29,MARK L8
T=3.31,MARK L9
T=3.33,MARK M0
T=3.35,MARK M1
T=3.37,MARK M2
T=3.39,MARK M3
T=3.41,MARK M4
T=3.43,MARK M5
T=3.45,MARK M6
T=3.47,MARK M7
T=3.49,MARK M8
T=3.51,MARK M9
T=3.53,MARK N0
T=3.55,MARK N1
T=3.57,MARK N2
T=3.59,MARK N3
T=3.61,MARK N4
T=3.63,MARK N5
T=3.65,MARK N6
T=3.67,MARK N7
T=3.69,MARK N8
T=3.71,MARK N9
T=3.73,MARK P0
T=3.75,MARK P1
T=3.77,MARK P2
T=3.79,MARK P3
T=3.81,MARK P4
T=3.83,MARK P5
41319CASE, TRANSFER RING GEAR MOUNTING
12 parts on this diagram · 1 diagram in section
TRANSFER GEAR for Toyota MATRIX
This section contains 12 genuine Toyota parts for the TRANSFER GEAR system of the Toyota MATRIX. Key components include: SPACER, TRANSFER OUTPUT SHAFT, NO.1, WASHER, TRANSFER OUTPUT SHAFT, BEARING (FOR TRANSFER DRIVEN PINION FRONT), BEARING (FOR TRANSFER DRIVEN PINION REAR), GEAR KIT, TRANSFER.
