Toyota MATRIX — TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33183DAMPER, TRANSFER DYNAMIC
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=19 & 19,L=47,(L)
S=22 & 22,L=69
S=19 & 19,L=47
S=30 & 22,L=64
36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)
*12-1.25PX53-35
36103CASE SUB-ASSY, TRANSFER
36109HOUSING SUB-ASSY, TRANSFER EXTENSION
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=16,OD=8
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111NBUSH (FOR TRANSFER CASE)
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36118APLATE, TRANSFER STIFFENER, RH
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
NO.1
NO.1
NO.2
36123ABOLT, DIFFERENTIAL BEARING CAP
36128BDEFLECTOR, BREATHER OIL
9010506256
main90105-06256
9011908336
main90119-08336
9017912068
main90179-12068
91511K0840
main91511-K0840
9151261030
main91512-61030
9151261045
main91512-61045

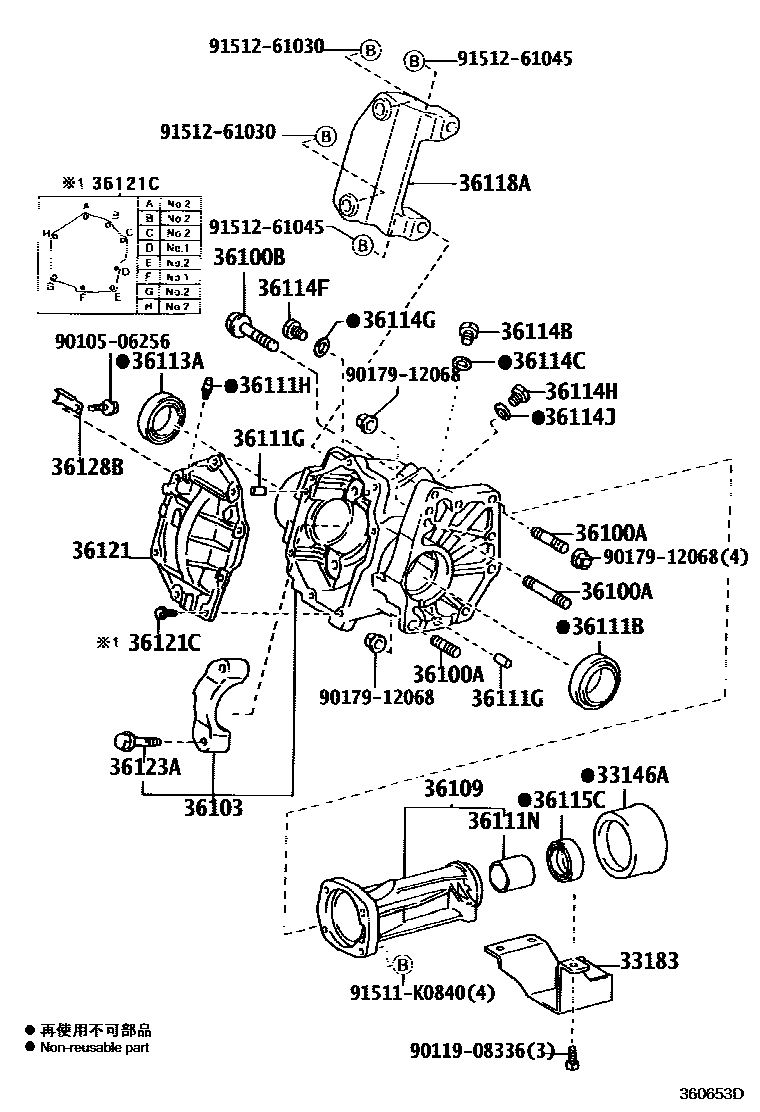

29 parts on this diagram · 1 diagram in section
TRANSFER CASE & EXTENSION HOUSING for Toyota MATRIX
This section contains 29 genuine Toyota parts for the TRANSFER CASE & EXTENSION HOUSING system of the Toyota MATRIX. Key components include: DEFLECTOR, TRANSFER EXTENSION HOUSING DUST, DAMPER, TRANSFER DYNAMIC, BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING), BOLT (FOR TRANSFER & TRANSAXLE SETTING), CASE SUB-ASSY, TRANSFER.
