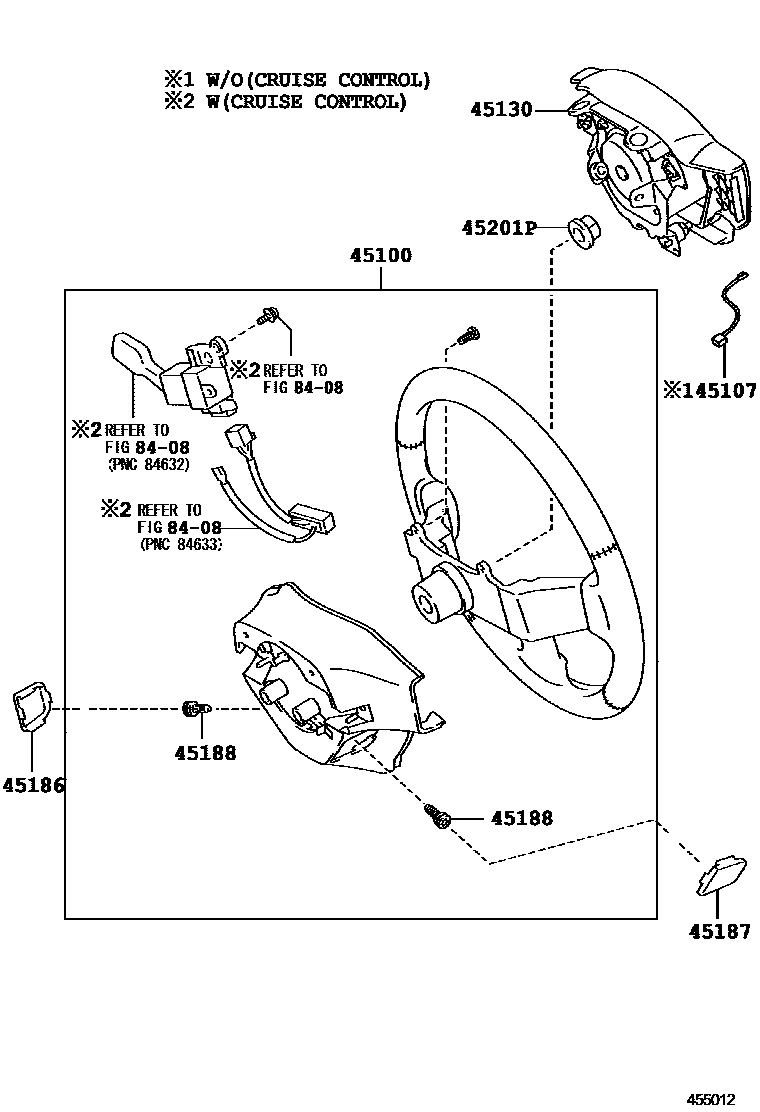

Toyota MATRIX — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-02P30-B0supersedes 45100-02P20-B0i201204-201308

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02P90-B0supersedes 45100-02P30-B0i201012-201204

3-SPOKE,LEATHER,AUDIO-AM/FM/XM CD 6SPEAKER BLUETOOTH,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,CRUISE CONTROL-WITH(ELECTRIC TYPE)&AUDIO-AM/FM/XM CD 6SPEAKER BLUETOOTH,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3SPOKE,LEATHER,WITH(AUDIO&HFSW),DK.GRAY,TRIM1#

main45100-02X10-B0i201204-201308

3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3SPOKE,LEATHER,WITH(AUDIO SWITCH),DK.GRAY,TRIM1#

main45100-02E40-B0supersedes 45100-02E50-B0i200801-201012

3-SPOKE,URETHANE,CRUISE CONTROL-WITHOUT,DK.GRAY,TRIM1#; 3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02E50-B0supersedes 45100-02E40-B0i200801-201012

3-SPOKE,URETHANE,CRUISE CONTROL-WITH(ELECTRIC TYPE),DK.GRAY,TRIM1#; 3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02E60-B0supersedes 45100-02E50-B0i200801-201012

3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SP,LEATHER,W/AUDIO SW&AUDIO-AM/FM CD 6SPAEKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SP,LEATHER,W/AUDIO SW&AUDIO-AM/FM CD CHANGER 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SP,LEATHER,W/AUDIO SW&AUDIO-ENTRY AVN 6SPEAKER,DK.GRAY,TRIM1#

main45100-02E80-B0supersedes 45100-02E50-B0i200801-201012

3-SPOKE,LEATHER,AUDIO-AM/FM CD CHANGER XM JBL-7SP BLUETOOTH,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SP,LEATHER,W/AUDIO&HFSW&AUDIO-AM/FM CD CHANGER XMJBL-7SP BLUETOOTH,DK.GRAY,TRIM1#

main45100-02P20-B0i201012-201204

3-SPOKE,URETHANE,CRUISE CONTROL-WITHOUT,DK.GRAY,TRIM1#; 3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02P50-B0i201012-201204

3-SPOKE,URETHANE,AUDIO-AM/FM/XM CD 6SPEAKER BLUETOOTH,DK.GRAY,TRIM1#; 3-SPOKE,URETHANE,CRUISE CONTROL-WITH(ELECTRIC TYPE)&AUDIO-AM/FM/XM CD 6SPEAKER BLUETOOTH,DK.GRAY,TRIM1#; 3-SPOKE,URETHANE,STEERING WHEEL-3SPOKE,URETHANE,WITH(AUDIO&HFSW),DK.GRAY,TRIM1#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-0C010i200801-201012

CRUISE CONTROL-WITHOUT

45130BUTTON ASSY, HORN

main45130-02470-B0i200801-201012

DK.GRAY,TRIM1#

main45130-02480-B0i200801-201012

DK.GRAY,TRIM1#; STEERING WHEEL-3-SP,LEATHER,W/AUDIO SW,DK.GRAY,TRIM1#; STEERING WHEEL-3-SP,LEATHER,W/AUDIO&HFSW,DK.GRAY,TRIM1#

main45130-02530-B0i201012-201406

DK.GRAY,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-02110-B0supersedes 45186-02100-B0i200801-201012

CRUISE CONTROL-WITH(ELECTRIC TYPE),DK.GRAY,TRIM1#; DK.GRAY,TRIM1#

main45186-02170-B0i201012-201308

DK.GRAY,TRIM1#

main45186-02100-B0i200801-201012

CRUISE CONTROL-WITHOUT,DK.GRAY,TRIM1#; DK.GRAY,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-02040-B0i200801-201012

DK.GRAY,TRIM1#

main45187-02060-B0i201012-201406

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-07010×2i200801-201012

L=18.5

45201PNUT, STEERING WHEEL SET

main90080-17234i200801-201012

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota MATRIX

This section contains 11 genuine Toyota parts for the STEERING WHEEL system of the Toyota MATRIX. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, ORNAMENT, STEERING WHEEL, NO.1, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2.
