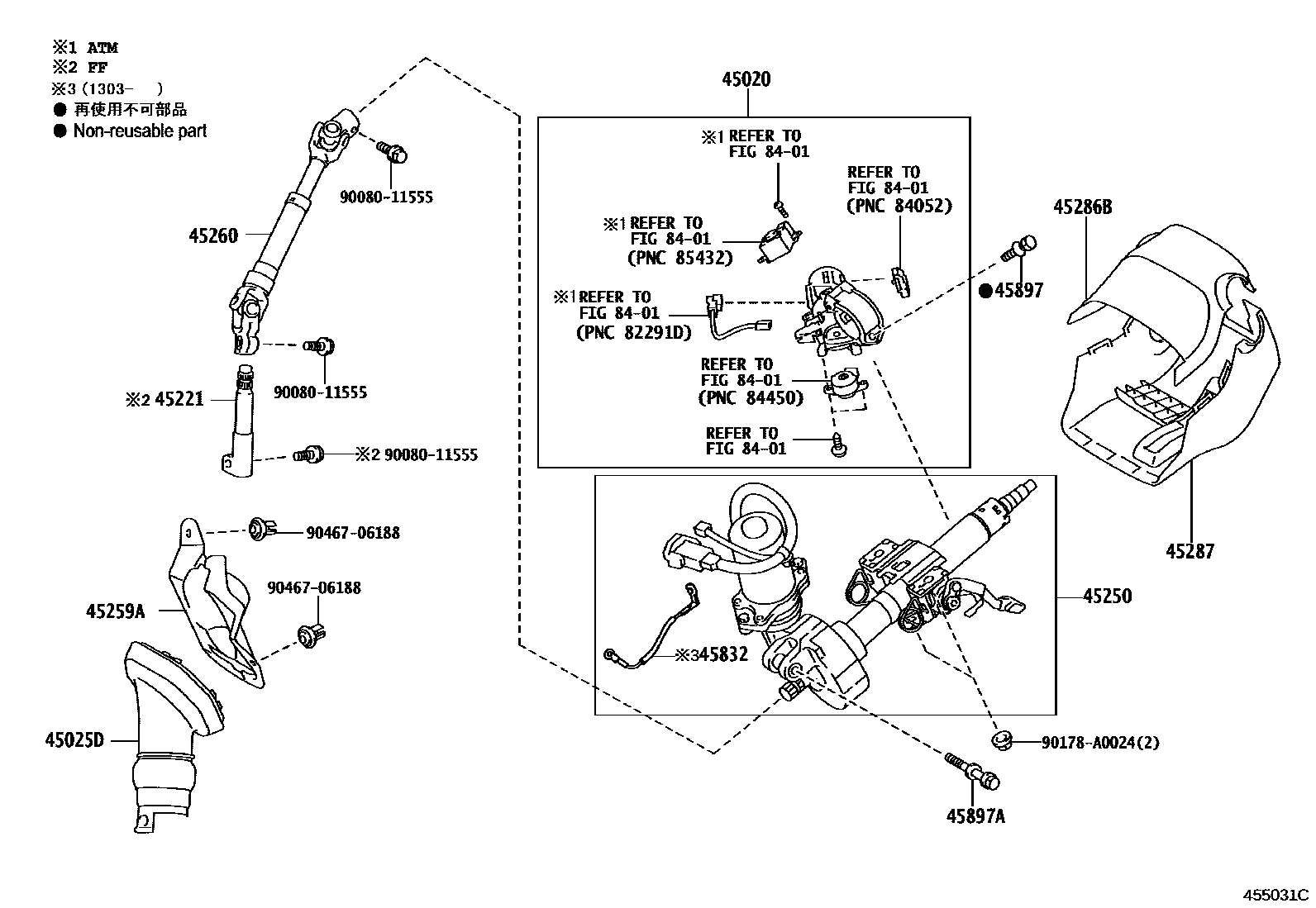

Toyota MATRIX — STEERING COLUMN & SHAFT
45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
DK.GRAY,TRIM1#
45287COVER, STEERING COLUMN, LWR
DK.GRAY,TRIM1#
45832CABLE, TILT STEERING SUPPORT BOND
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401SWITCH & RELAY & COMPUTER
9008011555
main90080-11555
90178A0024
main90178-A0024
9046706188
main90467-06188
15 parts on this diagram · 1 diagram in section
STEERING COLUMN & SHAFT for Toyota MATRIX
This section contains 15 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota MATRIX. Key components include: BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH, COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, SHAFT, STEERING INTERMEDIATE, COLUMN ASSY, STEERING, SHEET, COLUMN HOLE COVER SILENCER.
