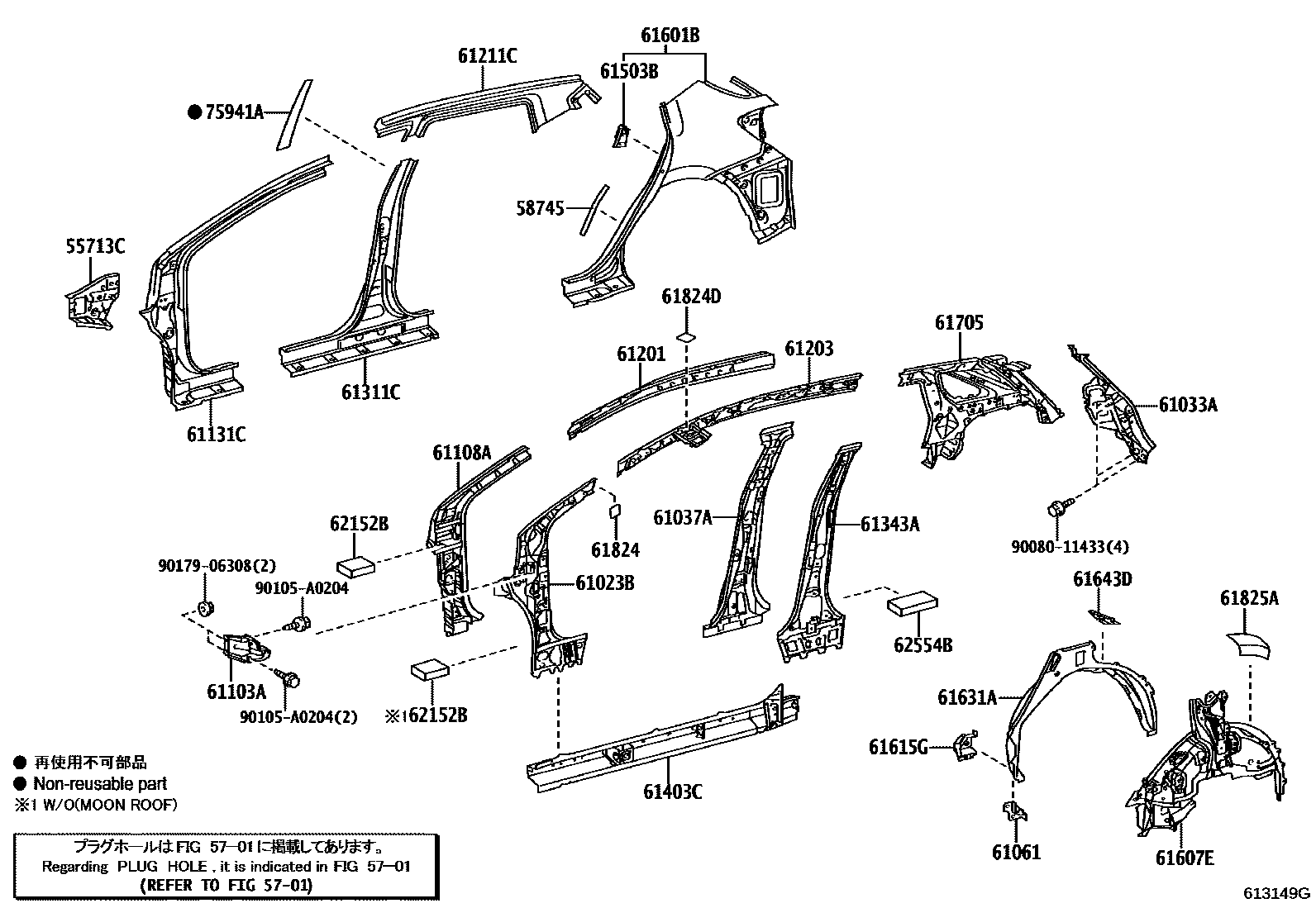

Toyota MATRIX — SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
5701
58745PROTECTOR, QUARTER PANEL, FRONT RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211CRAIL, ROOF SIDE, RH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61343APILLAR, CENTER BODY, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61601BPANEL SUB-ASSY, QUARTER, RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61643DPATCH, QUARTER WHEEL HOUSE, NO.1 RH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61824PLATE, NOISE CONTROL, NO.1
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
62152BPAD, COWL SIDE SILENCER, NO.2
75941ASTRIPE, CENTER PILLAR, RH
9008011433
main90080-11433
90105A0204
main90105-A0204
9017906308
main90179-06308
32 parts on this diagram · 2 diagrams in section
