Toyota MATRIX — SHORT BLOCK ASSEMBLY

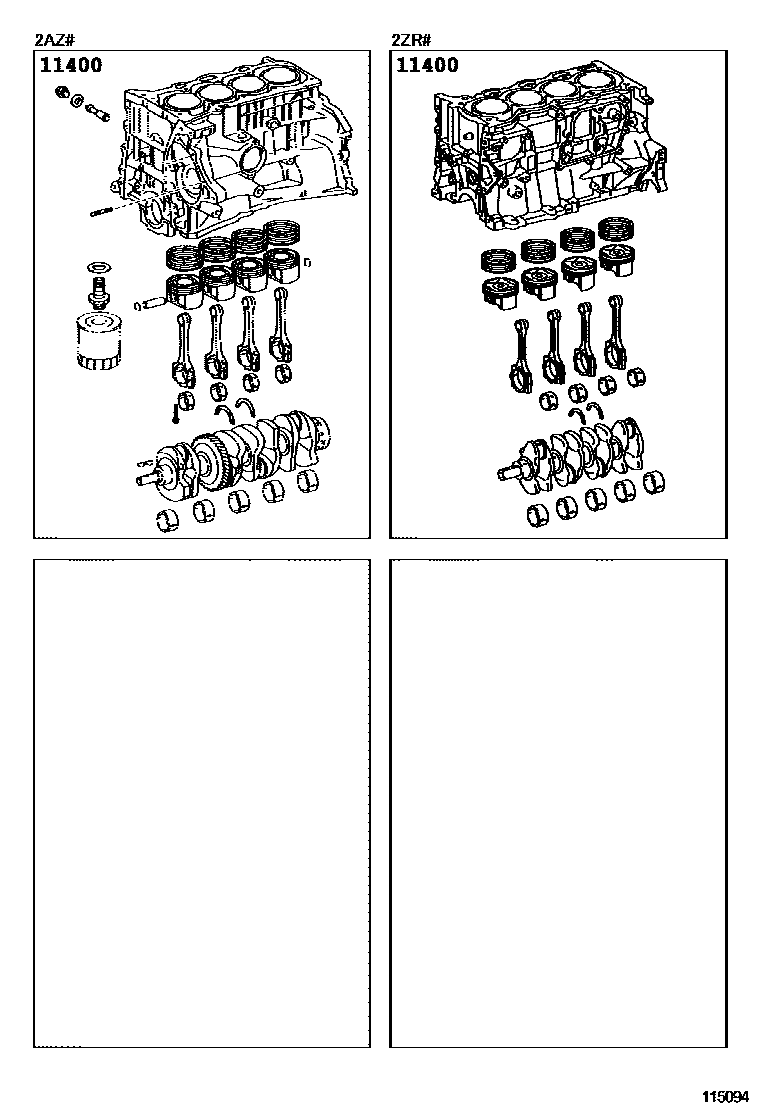

Parts diagram
11400BLOCK ASSY, SHORT
main11400-0H070i200801-201012
(L)
sub11400-28500
main11400-0H070i201012-201204
sub11400-28500
main11400-0T050i200801-201008
sub11400-0T051
main11400-0T051i201008-201012
sub11400-0T250
main11400-28400i200801-201012
(J)
sub11400-28510
main11400-28500i201204-201308
sub11400-28510

1 parts on this diagram · 1 diagram in section
