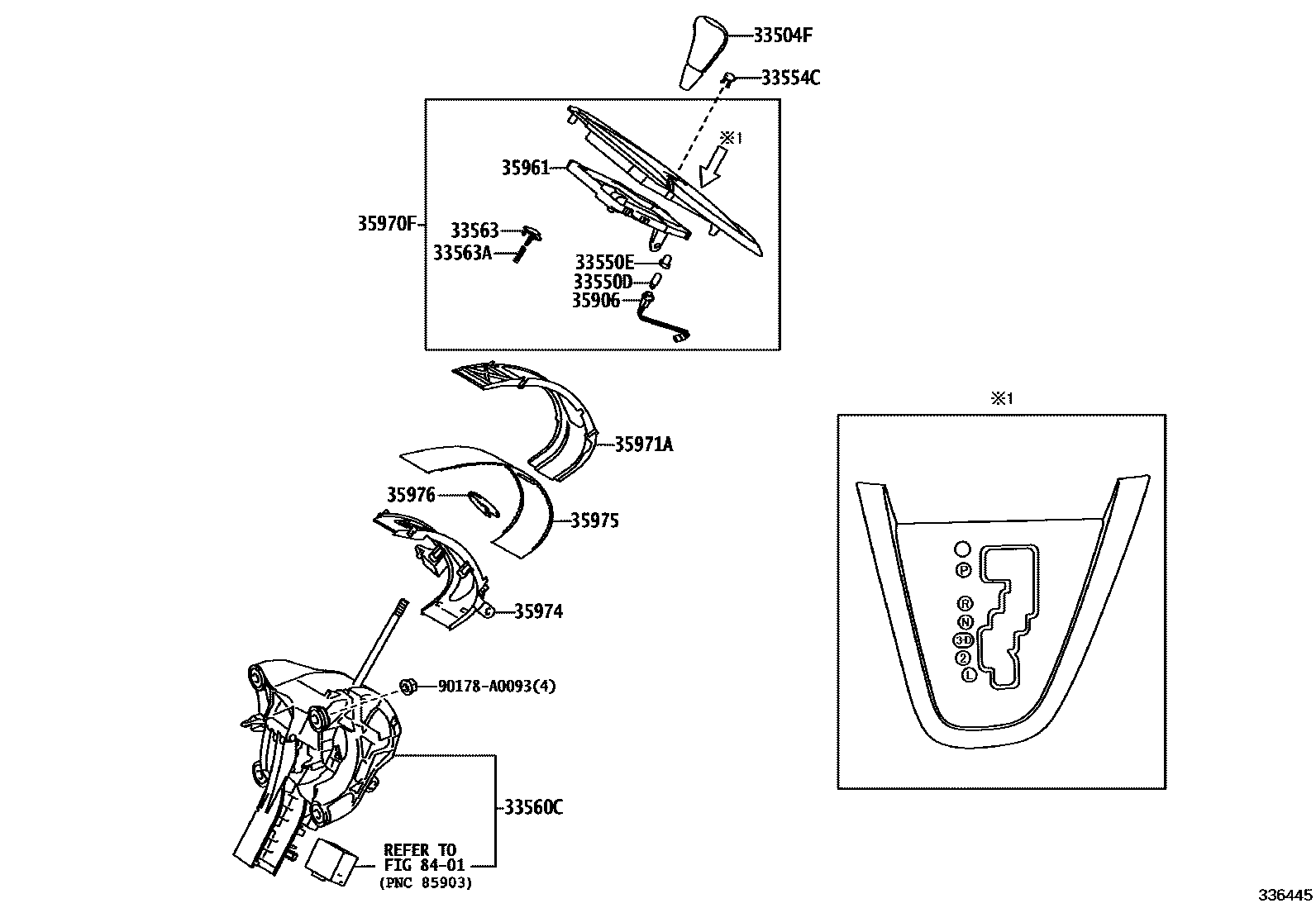

Toyota MATRIX — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#
STEERING WHEEL-3-SP,LEATHER,W/AUDIO&HFSW,DK.GRAY,TRIM1#
STEERING WHEEL-3-SP,LEATHER,W/AUDIO SW,DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
STEERING WHEEL-3SPOKE,LEATHER,WITH(AUDIO SWITCH),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560CLEVER ASSY, SHIFT, LOWER
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
35906WIRE SUB-ASSY, INDICATOR LAMP
35961HOUSING, POSITION INDICATOR LAMP
35970FHOUSING ASSY, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
90178A0093
main90178-A0093
16 parts on this diagram · 4 diagrams in section
