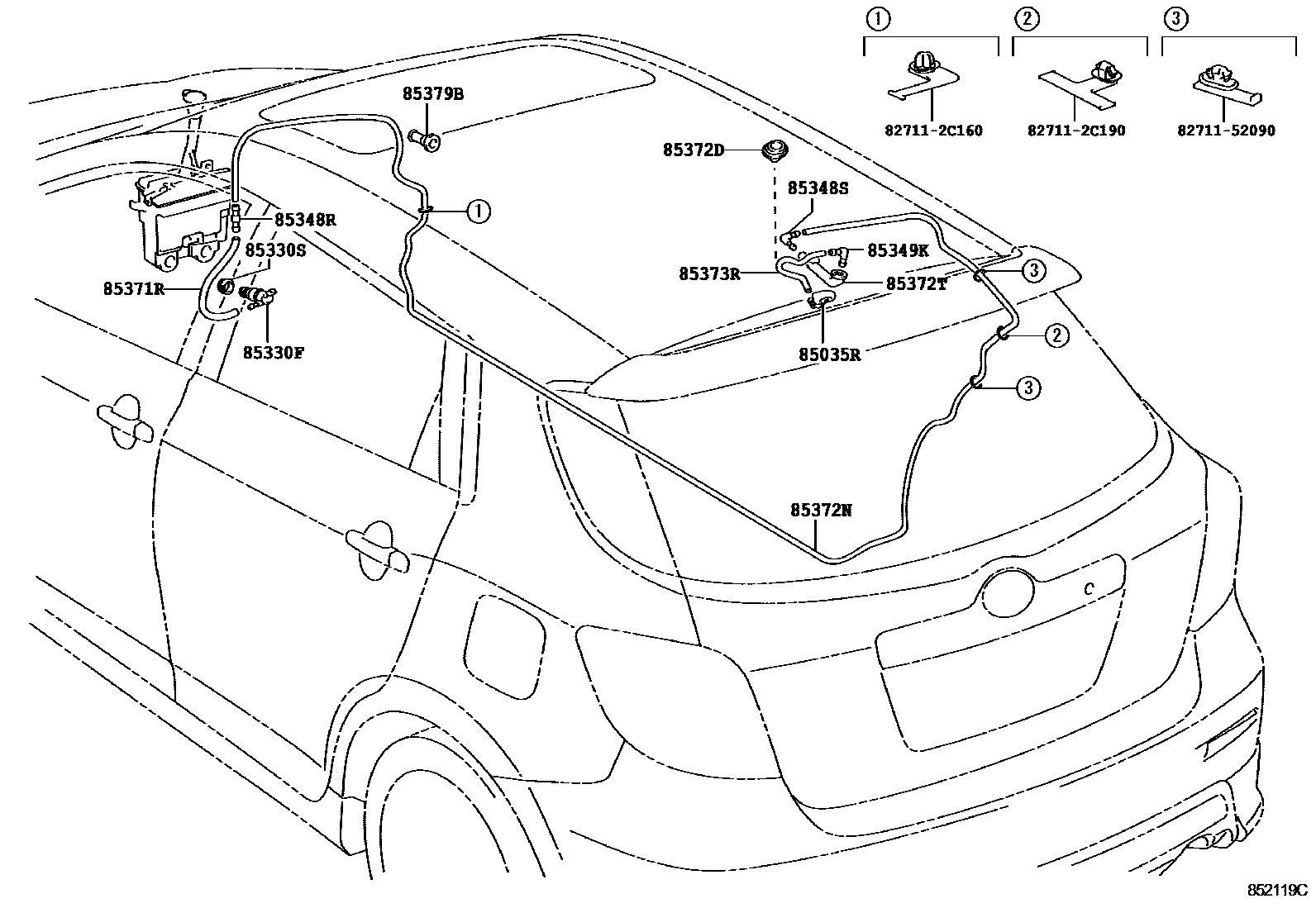

Toyota MATRIX — REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
REAR WINDOW WIPER-WITH
85330FMOTOR & PUMP ASSY, RR WASHER
REAR WINDOW WIPER-WITH
85330SBUSH, REAR WASHER JAR
REAR WINDOW WIPER-WITH
85348RJOINT, REAR WASHER HOSE, NO.1
REAR WINDOW WIPER-WITH
85348SJOINT, REAR WASHER ELBOW, NO.1
REAR WINDOW WIPER-WITH
85349KJOINT, REAR WASHER ELBOW, NO.2
REAR WINDOW WIPER-WITH
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=130; L=130,REAR WINDOW WIPER-WITH
85372DGROMMET, REAR WASHER HOSE
REAR WINDOW WIPER-WITH
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=4915; L=4915,REAR WINDOW WIPER-WITH
85372TGROMMET, WASHER
REAR WINDOW WIPER-WITH
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=190; L=190,REAR WINDOW WIPER-WITH
85379BGROMMET, WASHER, A
REAR WINDOW WIPER-WITH
827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C160
827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C190
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
15 parts on this diagram · 1 diagram in section
REAR WASHER for Toyota MATRIX
This section contains 15 genuine Toyota parts for the REAR WASHER system of the Toyota MATRIX. Key components include: NOZZLE SUB-ASSY, REAR WASHER, MOTOR & PUMP ASSY, RR WASHER, BUSH, REAR WASHER JAR, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1.
