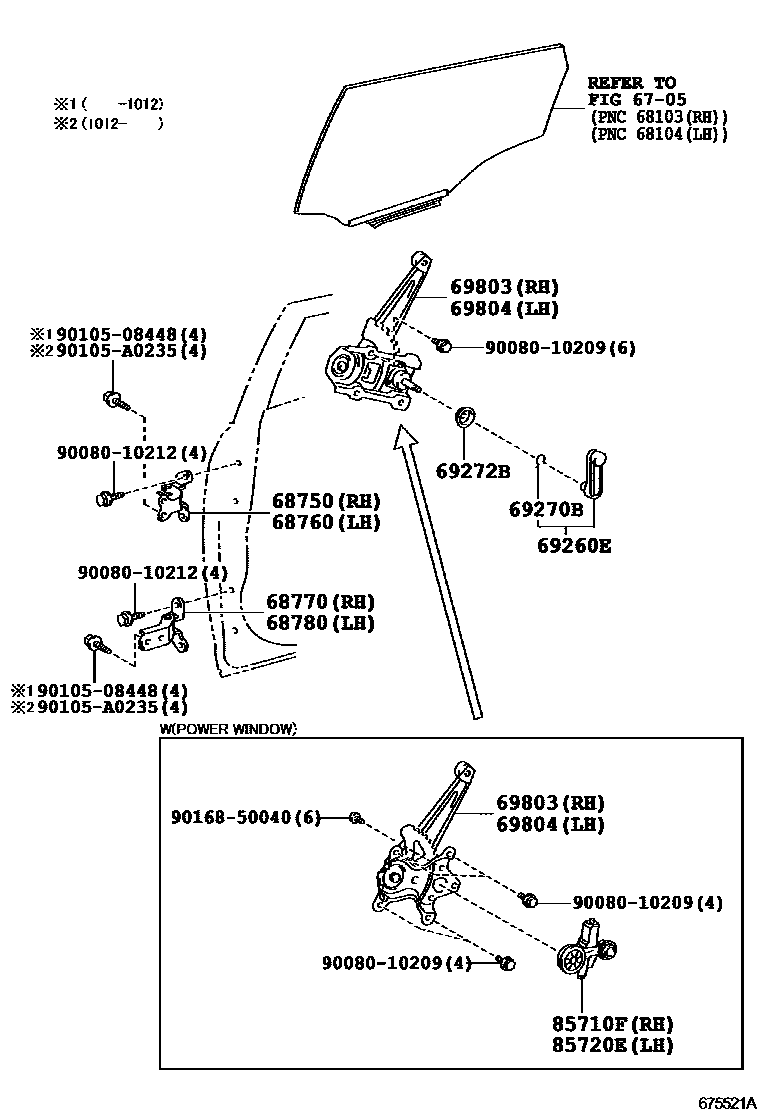

Toyota MATRIX — REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010i201012

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010i200801-201012

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02050i201012

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02050i200801-201012

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-01020-B5×2i200801-201012

DK.GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52001×8i200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-12020×2i200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-02150supersedes 69830-02290i201311

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-02150supersedes 69840-02290i201012

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-AE010i200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-AE010i200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

9008010209

main90080-10209

9008010212

main90080-10212

9010508448

main90105-08448

90105A0235

main90105-A0235

9016850040

main90168-50040

17 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota MATRIX

This section contains 17 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota MATRIX. Key components include: REAR DOOR PANEL & GLASS, HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH.
