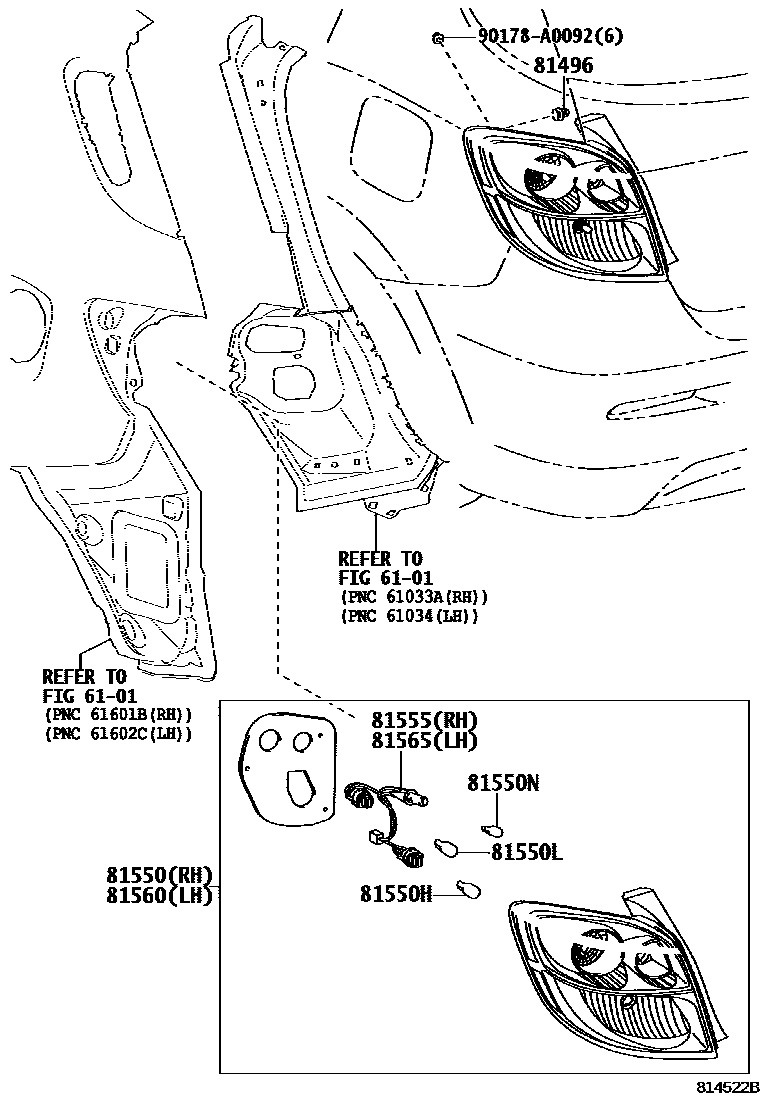

Toyota MATRIX — REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2i200801-201012

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02450i200801-201012

81550HBULB, TAIL & STOP LAMP

main90981-13044×2i200801-201012

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2i200801-201012

81550NBULB, BACK UP LAMP

main90981-11059×2i200801-201012

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-02450i200801-201012

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02450i200801-201012

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-02450i200801-201012

90178A0092

main90178-A0092

10 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota MATRIX

This section contains 10 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota MATRIX. Key components include: SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, LAMP ASSY, REAR COMBINATION, RH, BULB, TAIL & STOP LAMP, BULB, REAR TURN SIGNAL LAMP.
