Toyota MATRIX — RADIATOR GRILLE

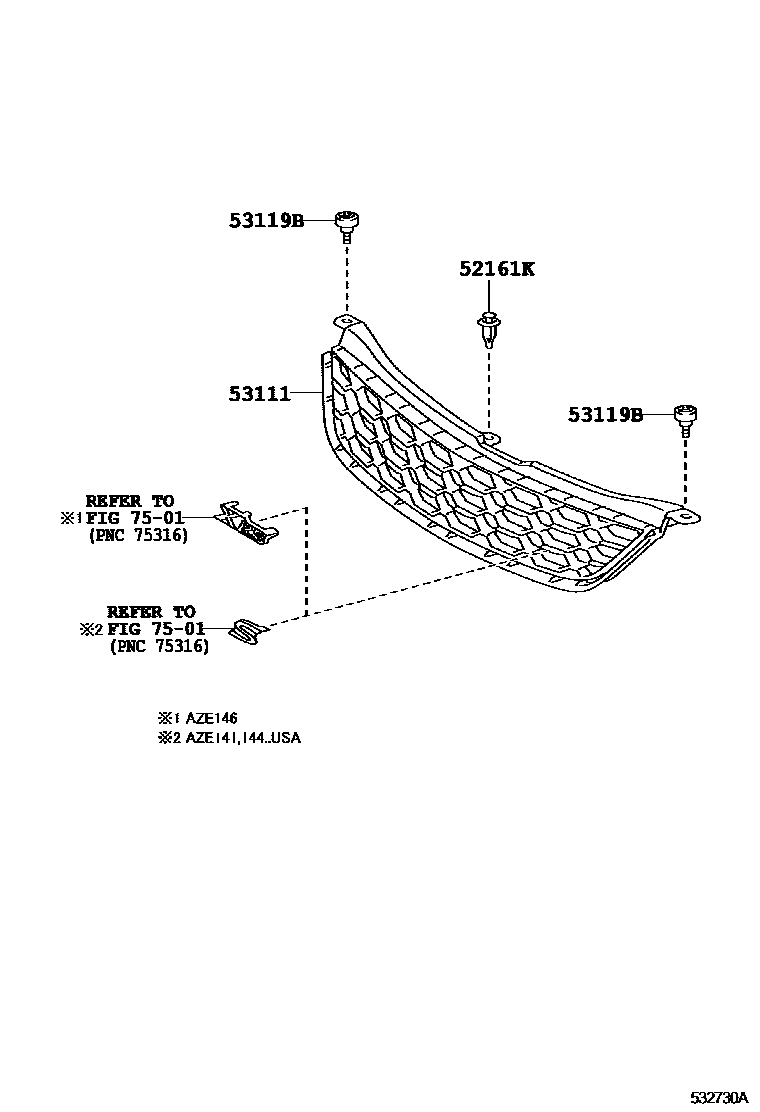

Parts diagram
52161KPIECE, FRONT BUMPER
main52161-02020i201012
53111GRILLE, RADIATOR
main53111-02420i201012-201406
NO PAINT REQ.
main53111-02620i201012-201308
NO PAINT REQ.; NO PAINT REQ.,SPORT PACKAGE(CANADA)&FRONT FOG LAMP-WITH; NO PAINT REQ.,SPORT PACKAGE(USA); NO PAINT REQ.,SPORT PACKAGE(USA)&FRONT FOG LAMP-WITH
53119BPROTECTOR, RADIATOR GRILLE
main53119-42020×2i200801-201012
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 75-01

4 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota MATRIX

This section contains 4 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota MATRIX. Key components include: PIECE, FRONT BUMPER, GRILLE, RADIATOR, PROTECTOR, RADIATOR GRILLE, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
