Toyota MATRIX — PARTIAL ENGINE ASSEMBLY

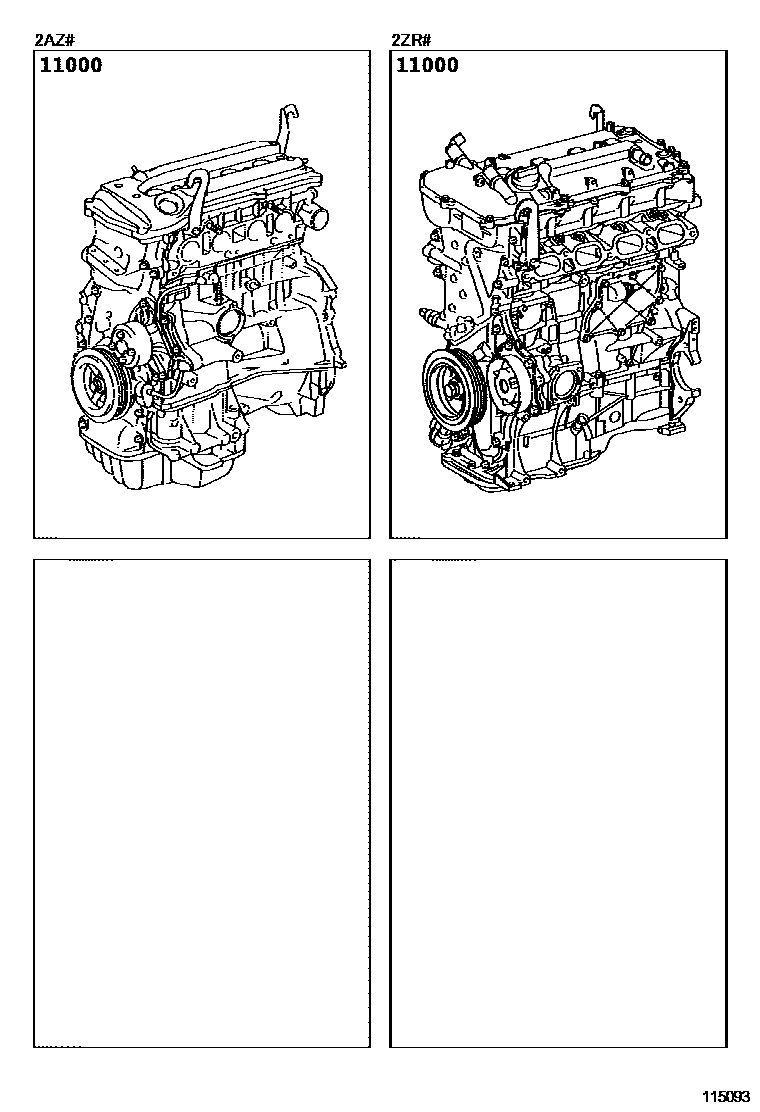

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0H200i200801-200902
(L)
main19000-0H250i200902-201204
sub19000-28C51
main19000-0T050i200801-201012
sub19000-0T051
sub90916-A3003
main19000-0T140i201012-201208
main19000-0T141i201208-201308
sub19000-0T370
sub90916-A3003
main19000-0T370i201308
main19000-28C50i200801-200902
(J)
main19000-28C51i201204-201308

1 parts on this diagram · 1 diagram in section
