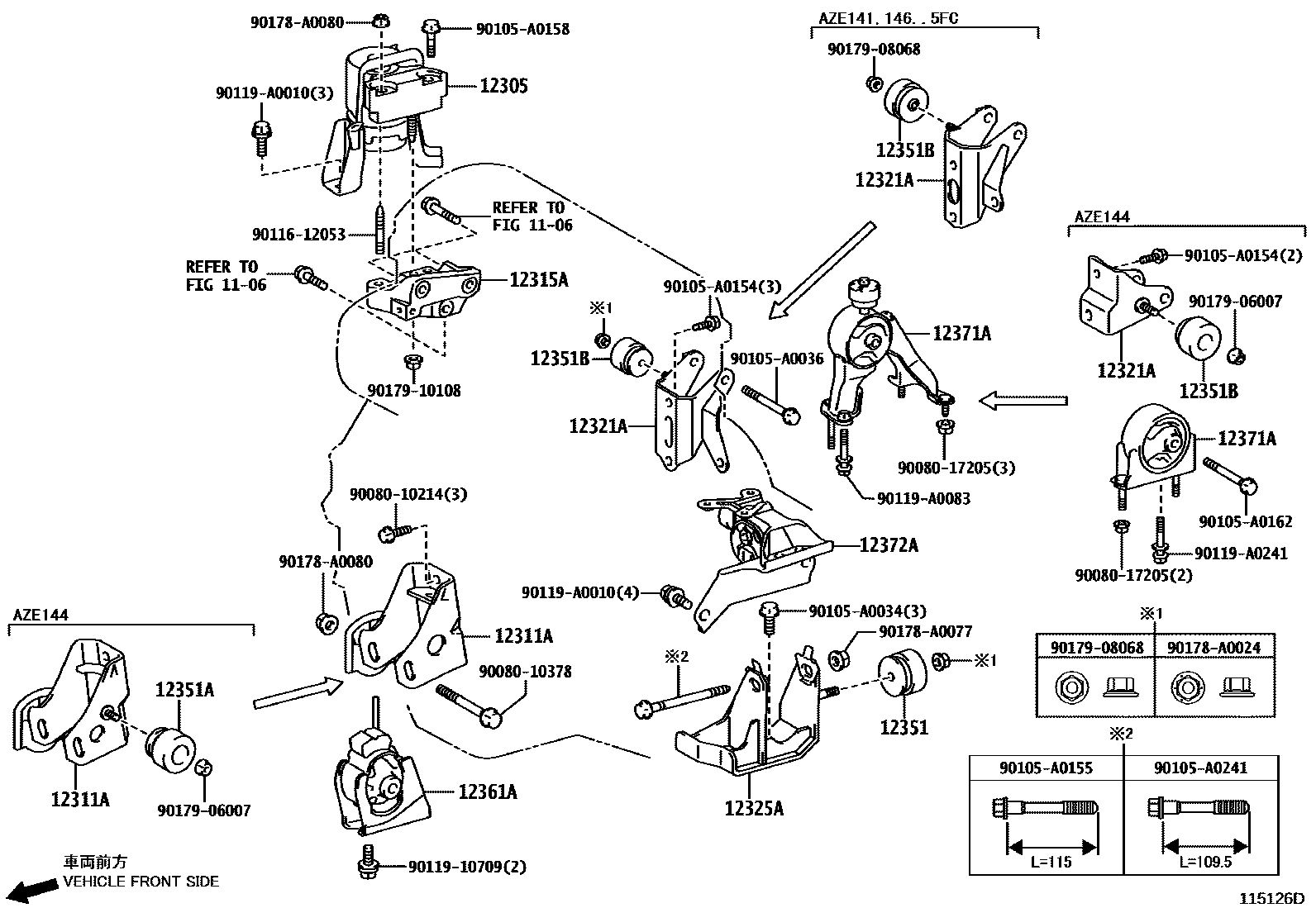

Toyota MATRIX — MOUNTING

0001 1 0002 1 0003 1

1106

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0H020i2AZFE..AZE141,146201012-201308

main12305-0H030i2AZFE..AZE144201012-201308

main12305-0T050i2ZRFE..ZRE142201012-201206

main12305-0T051i2ZRFE..ZRE142201207

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0H140i2AZFE..AZE141,146200801-201012

main12311-0H150i2AZFE..AZE144201012-201308

main12311-0T060i2ZRFE..ZRE142..5F200801-201012

main12311-0T070i2ZRFE..ZRE142..4FC200801-201012

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-28090i2AZFE..AZE14#200801-201012

*195

main12315-37030i2ZRFE..ZRE142200801-201012

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0H060i2AZFE..AZE141,146..5F201012-201308

main12321-0H070i2AZFE..AZE144201012-201308

main12321-0H080i2AZFE..AZE141,146..5FC200801-201012

main12321-0T060i2ZRFE..ZRE142..5F201012

main12321-0T070i2ZRFE..ZRE142..4FC201012

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0H030i2AZFE..AZE141,146..5F200801-201012

main12325-0H040i2AZFE..AZE144201012-201308

main12325-0H050i2AZFE..AZE141,146..5FC200801-201012

main12325-0T070i2ZRFE..ZRE142..5F201012

main12325-0T080i2ZRFE..ZRE142..4FC201012

12351DAMPER, ENGINE MOUNTING

main12351-11072i2AZFE..AZE141,146..5FC200801-201011

main12351-22060i2AZFE..AZE14#..4FC,5F200801-201012

main12351-27050i2ZRFE..ZRE142..4FC200801-201005

main12351-28070i2AZFE..AZE141,146..5FC201012-201308

main12351-37120i2ZRFE..ZRE142..4FC201012

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-74060i2AZFE..AZE144200801-201012

12351BDAMPER, ENGINE MOUNTING

main12351-11072i2AZFE..AZE141,146..5FC200801-201011

main12351-11130i2ZRFE..ZRE142..5F201012

main12351-22090i2AZFE..AZE141,146..5F201012-201308

main12351-28070i2AZFE..AZE141,146..5FC201012-201308

main12351-74060i2AZFE..AZE144200801-201012

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0H120i2AZFE..AZE14#201012-201308

main12361-0T050i2ZRFE..ZRE142..5F200801-201012

main12361-0T060i2ZRFE..ZRE142..4FC200801-201012

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0H080i2AZFE..AZE141,146201012-201308

main12371-0H090i2AZFE..AZE144200801-201012

main12371-0T030i2ZRFE..ZRE142..5F200801-201012

main12371-0T040i2ZRFE..ZRE142..4FC201012

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0H140i2AZFE..AZE141,146..5F201012-201308

main12372-0H150i2AZFE..AZE141,146..5FC200801-201012

main12372-0H160i2AZFE..AZE144200801-201012

main12372-0T050i2ZRFE..ZRE142..5F201012

main12372-0T060i2ZRFE..ZRE142..4FC201012

9008010214

main90080-10214

9008010378

main90080-10378

9008017205

main90080-17205

90105A0034

main90105-A0034

90105A0036

main90105-A0036

90105A0154

main90105-A0154

90105A0155

main90105-A0155

90105A0158

main90105-A0158

90105A0162

main90105-A0162

90105A0241

main90105-A0241

9011612053

main90116-12053

9011910709

main90119-10709

90119A0010

main90119-A0010

90119A0083

main90119-A0083

90119A0241

main90119-A0241

90178A0024

main90178-A0024

90178A0077

main90178-A0077

90178A0080

main90178-A0080

9017906007

main90179-06007

9017908068

main90179-08068

9017910108

main90179-10108

33 parts on this diagram · 3 diagrams in section
